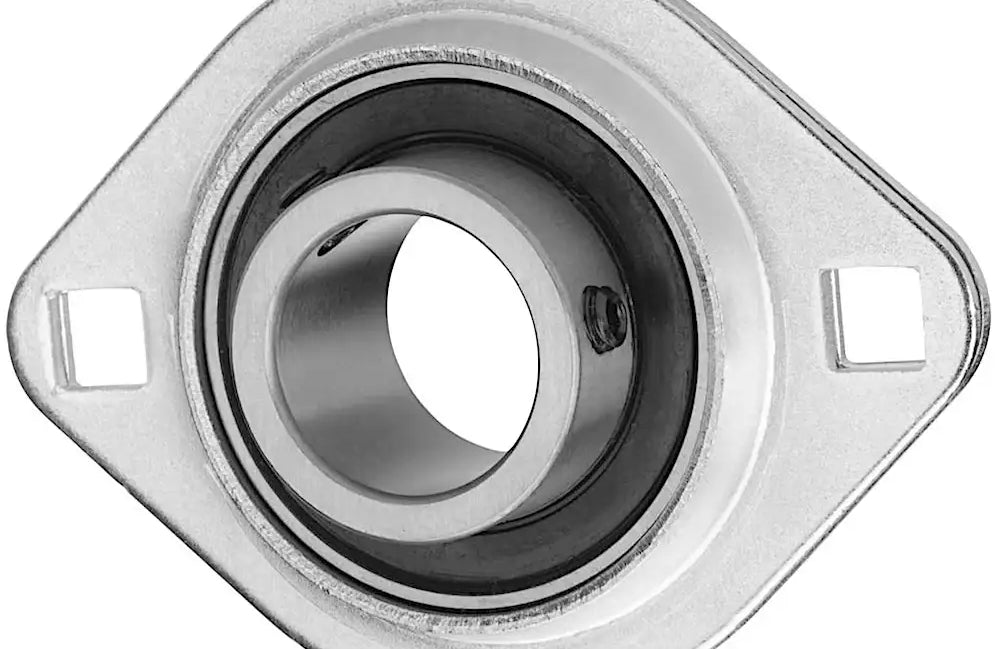

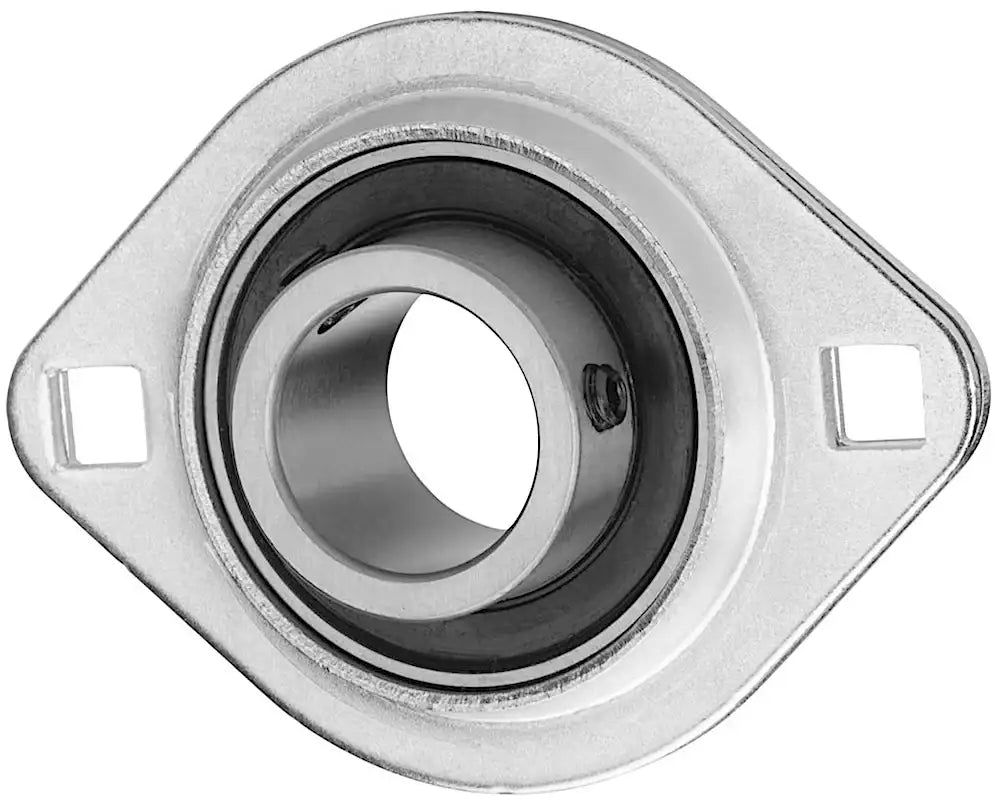

SAPFL201-8 Stamped Steel 2-Bolt Flange Bearing | 1/2" Bearing

SAPFL201-8 stamped steel bearing is a 2-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 1/2" insert bearing that utilizes an eccentric locking collar for securing onto a shaft. SAPFL201-8 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the two-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing two mounting holes, the SAPFL201-8 1/2" bearing has incredible holding power, stability, and mounting position flexibility. Additionally, our SAPFL201-8 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SAPFL201-8 bearing, contact our customer support team, and we will be happy to assist you!

SAPFL201-8 Bearing Dimensions

• Bearing Part #: SAPFL201-8
• Bearing I.D: 1/2"
• Dimension (a): 3-3/16"
• Dimension (e): 2-33/64"
• Dimension (g): 5/64"
• Dimension (c): 9/16"
• Dimension (s): 9/32"
• Dimension (b): 2-21/64"
• Dimension (f): 1-59/64"
• Dimension (L): 1.126"
• Dimension (n): 0.236"
• Dimension (W): 1-1/8"
• Bolt Size: 1/4"
• Bearing Part #: SA201-8
• Housing Part #: PFL203
• Weight: 0.44 LBS
