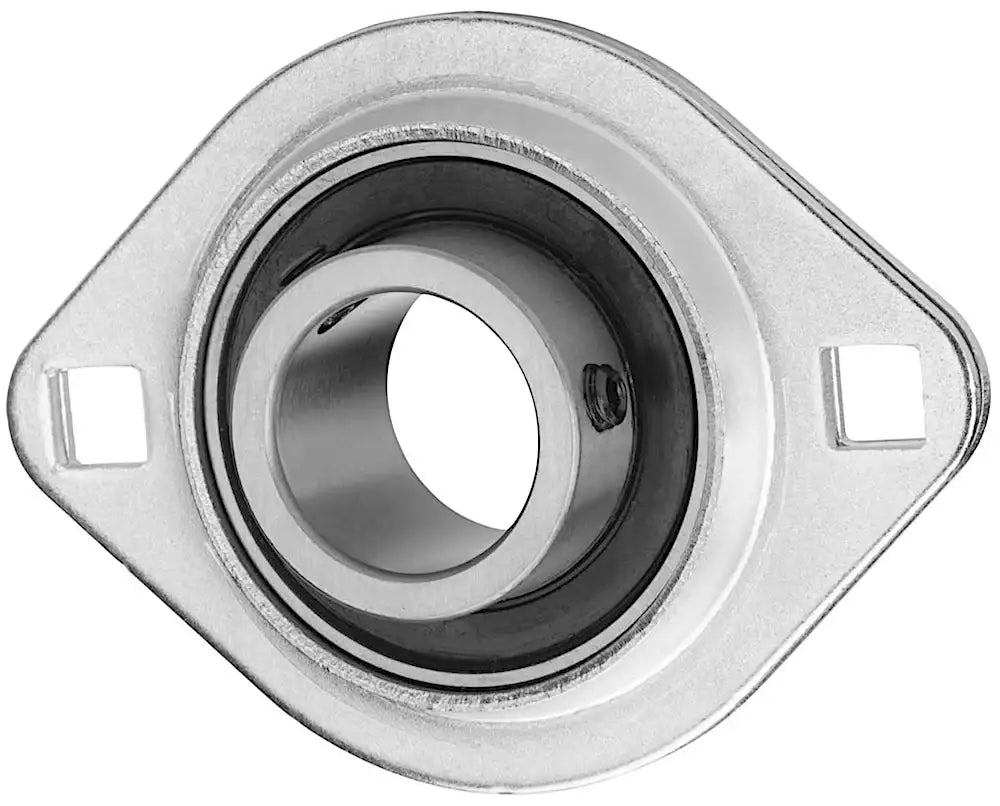

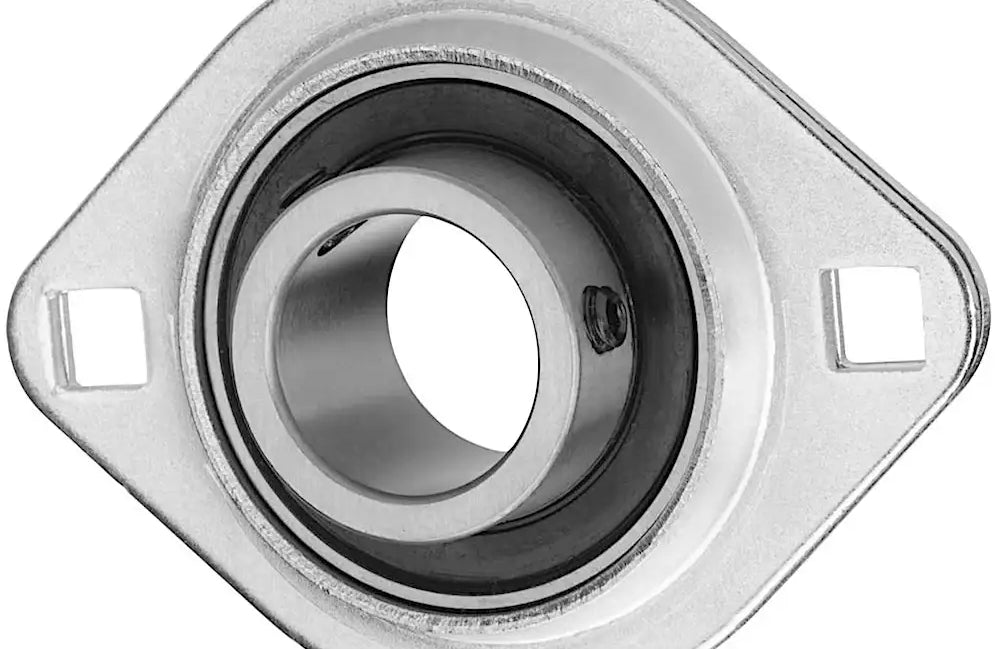

SAPFL206-17 Stamped Steel 2-Bolt Flange Bearing | 1-1/16" Bearing

SAPFL206-17 stamped steel bearing is a 2-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 1-1/16" insert bearing that utilizes an eccentric locking collar for securing onto a shaft. SAPFL206-17 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the two-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing two mounting holes, the SAPFL206-17 1-1/16" bearing has incredible holding power, stability, and mounting position flexibility. Additionally, our SAPFL206-17 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SAPFL206-17 bearing, contact our customer support team, and we will be happy to assist you!

SAPFL206-17 Bearing Dimensions

• Bearing Part #: SAPFL206-17
• Bearing I.D: 1-1/16"
• Dimension (a): 4-7/16"
• Dimension (e): 3-35/64"
• Dimension (g): 7/64"
• Dimension (c): 21/32"
• Dimension (s): 13/32"
• Dimension (b): 3-5/16"
• Dimension (f): 2-51/64"
• Dimension (L): 1.406"
• Dimension (n): 0.315"
• Dimension (W): 1-3/4"
• Bolt Size: 3/8"
• Bearing Part #: SA206-17
• Housing Part #: PFL206
• Weight: 1.10 LBS
