SAPFT204-12 Stamped Steel 3-Bolt Flange Bearing | 3/4" Bearing

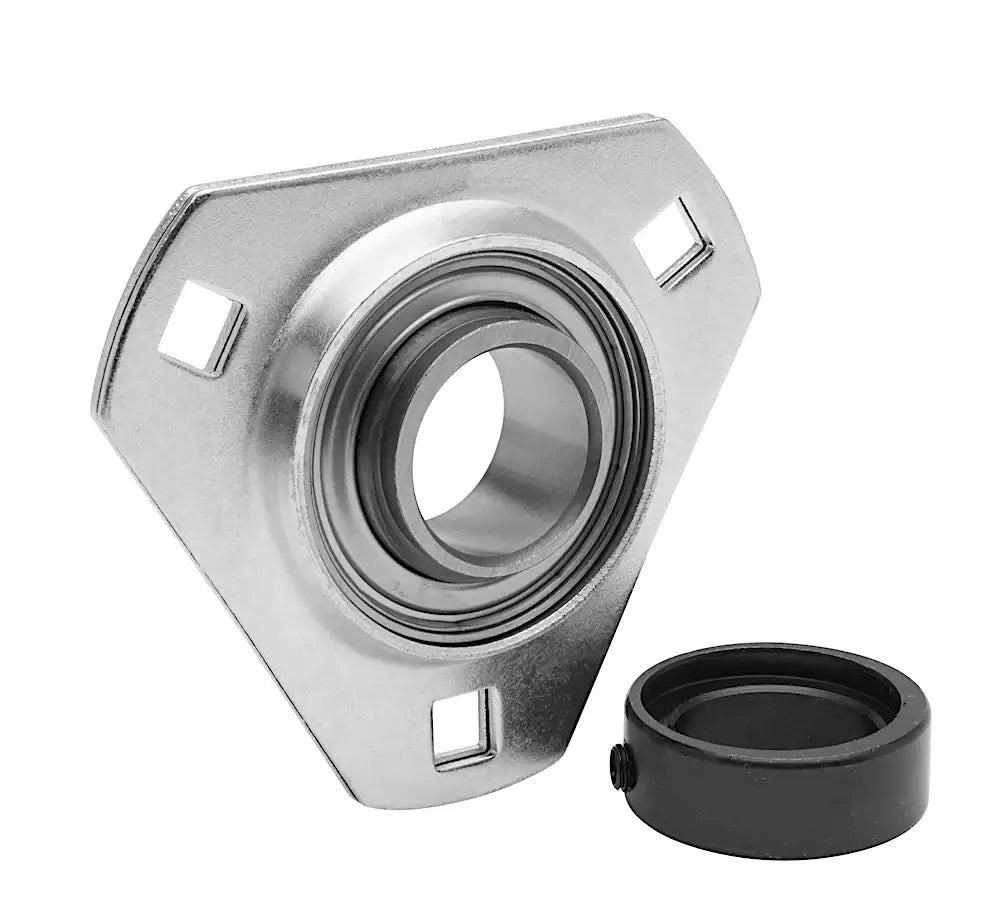

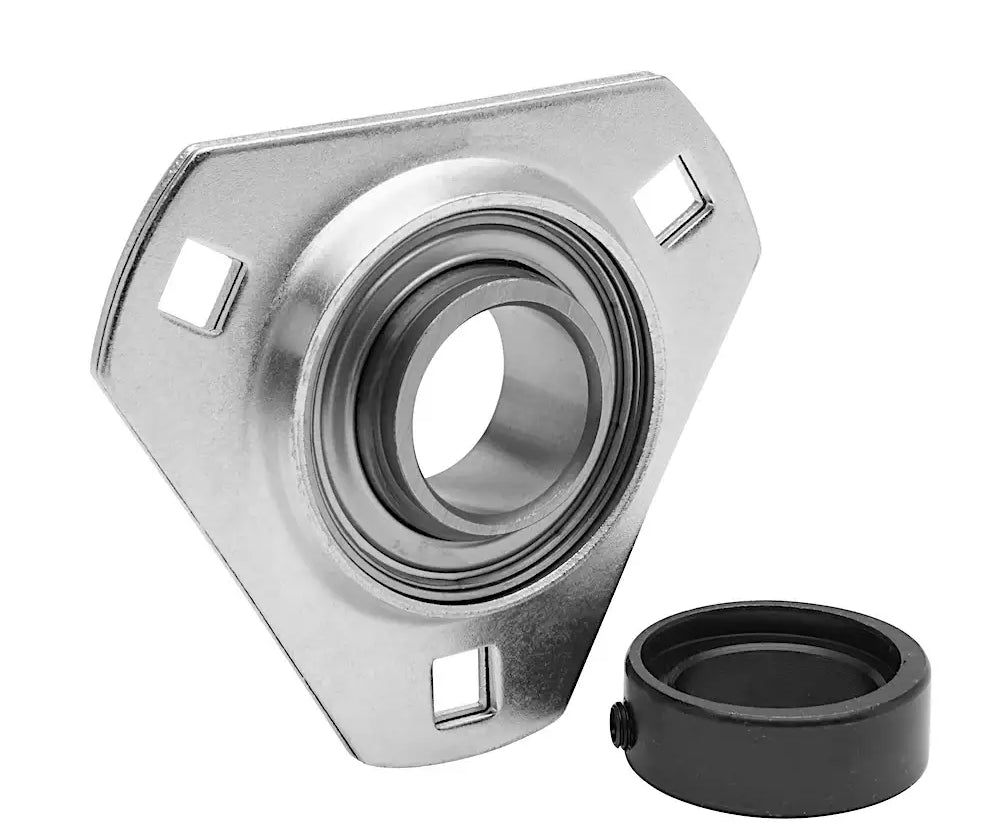

SAPFT204-12 stamped steel bearing is a 3-bolt triangle flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 3/4" insert bearing that utilizes an eccentric locking collar for securing onto a shaft. SAPFT204-12 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the three-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing three mounting holes, the SAPFT204-12 3/4" bearing has incredible holding power and stability. Additionally, our SAPFT204-12 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SAPFT204-12 bearing, contact our customer support team, and we will be happy to assist you!

SAPFT204-12 Bearing Dimensions

• Part #: SAPFT204-12
• Bearing I.D: 3/4"
• Dimension (a): 2-63/64"
• Dimension (e): 2-51/64"
• Dimension (h): 1-19/64"
• Dimension (s): 11/32"
• Dimension (c): 5/8"
• Dimension (g): 3/32"
• Dimension (b): 1-1/16"
• Dimension (f): 2-7/32"
• Dimension (L): 1.220"
• Dimension (n): 0.276"
• Dimension (W): 1-1/4"
• Bolt Size: 5/16"
• Insert Bearing #: SA204-12

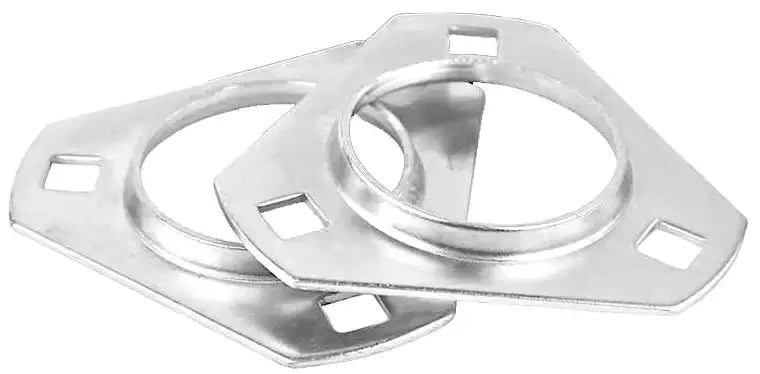

• Housing #: PFT204
• Weight: 0.59 LBS
