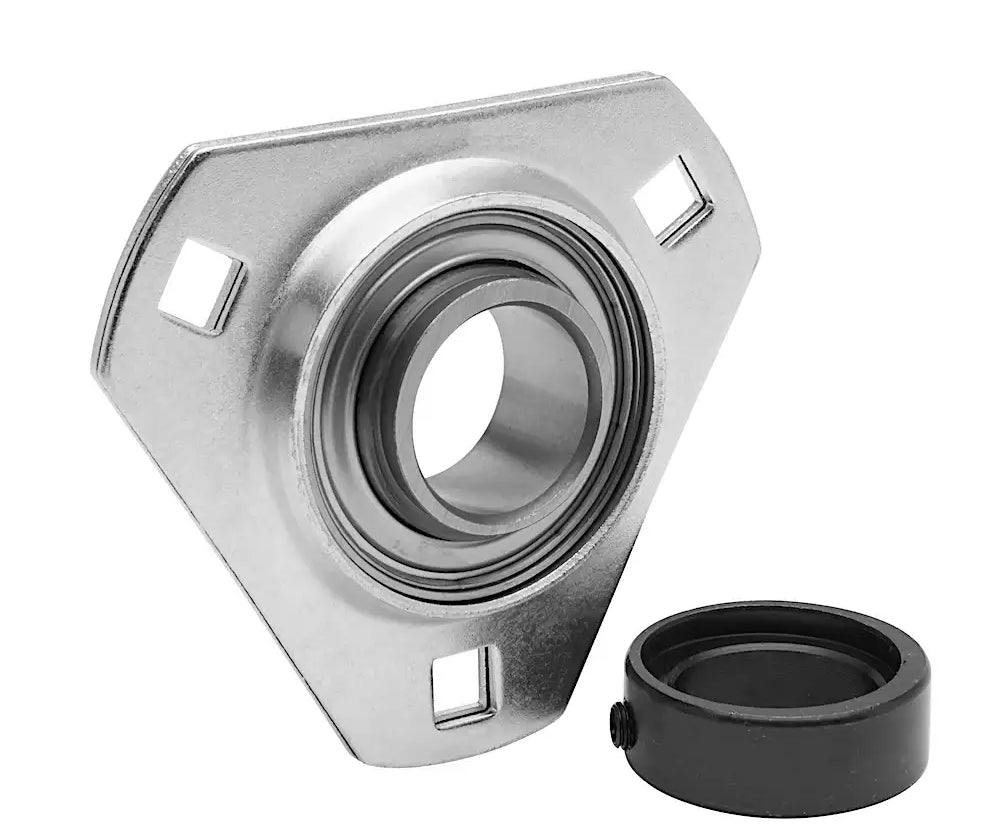

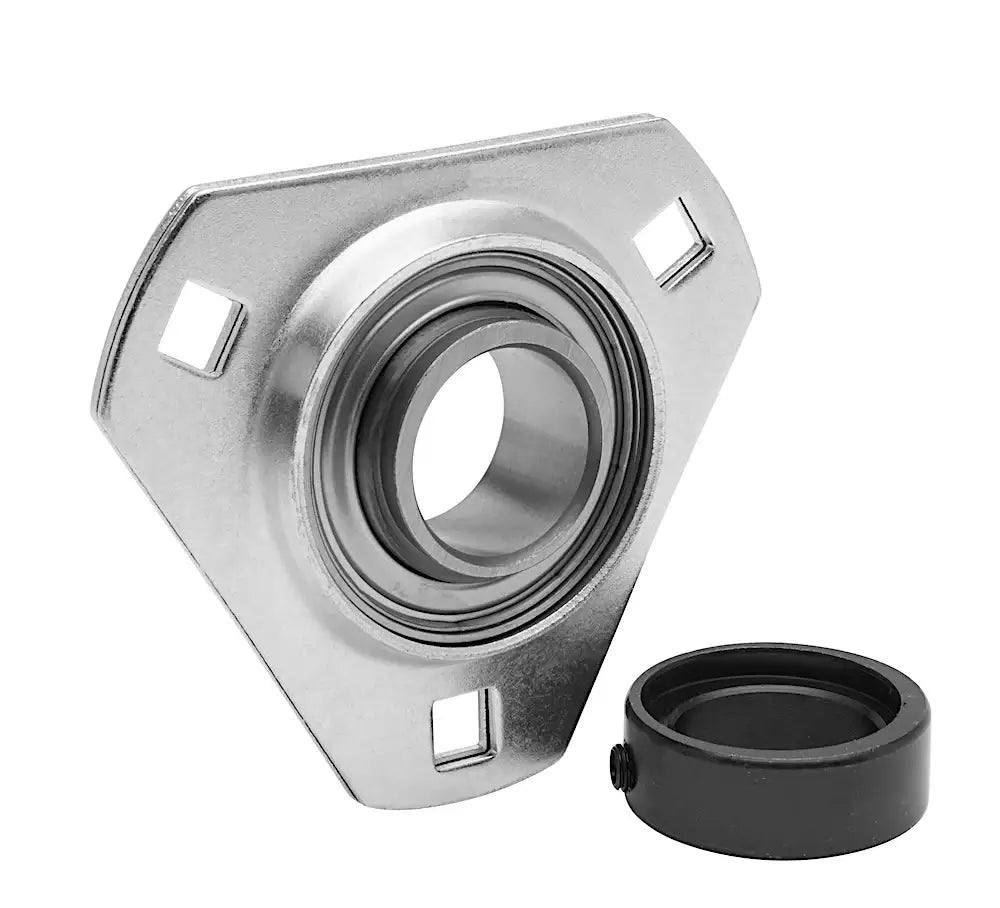

SAPFT205 Stamped Steel 3-Bolt Flange Bearing | 25mm Bearing

SAPFT205 stamped steel bearing is a 3-bolt triangle flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 25mm insert bearing that utilizes an eccentric locking collar for securing onto a shaft. SAPFT205 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the three-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing three mounting holes, the SAPFT205 25mm bearing has incredible holding power and stability. Additionally, our SAPFT205 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SAPFT205 bearing, contact our customer support team, and we will be happy to assist you!

SAPFT205 Bearing Dimensions

• Part #: SAPFT205
• Bearing I.D: 25mm
• Dimension (a): 3-1/8"
• Dimension (e): 2-63/64"
• Dimension (h): 1-3/8"
• Dimension (s): 11/32"
• Dimension (c): 21/32"
• Dimension (g): 3/32"
• Dimension (b): 1-3/32"
• Dimension (f): 2-19/32"
• Dimension (L): 1.220"
• Dimension (n): 0.295"
• Dimension (W): 1-1/2"
• Bolt Size: 5/16"
• Insert Bearing #: SA205
• Housing #: PFT205
• Weight: 0.66 LBS
