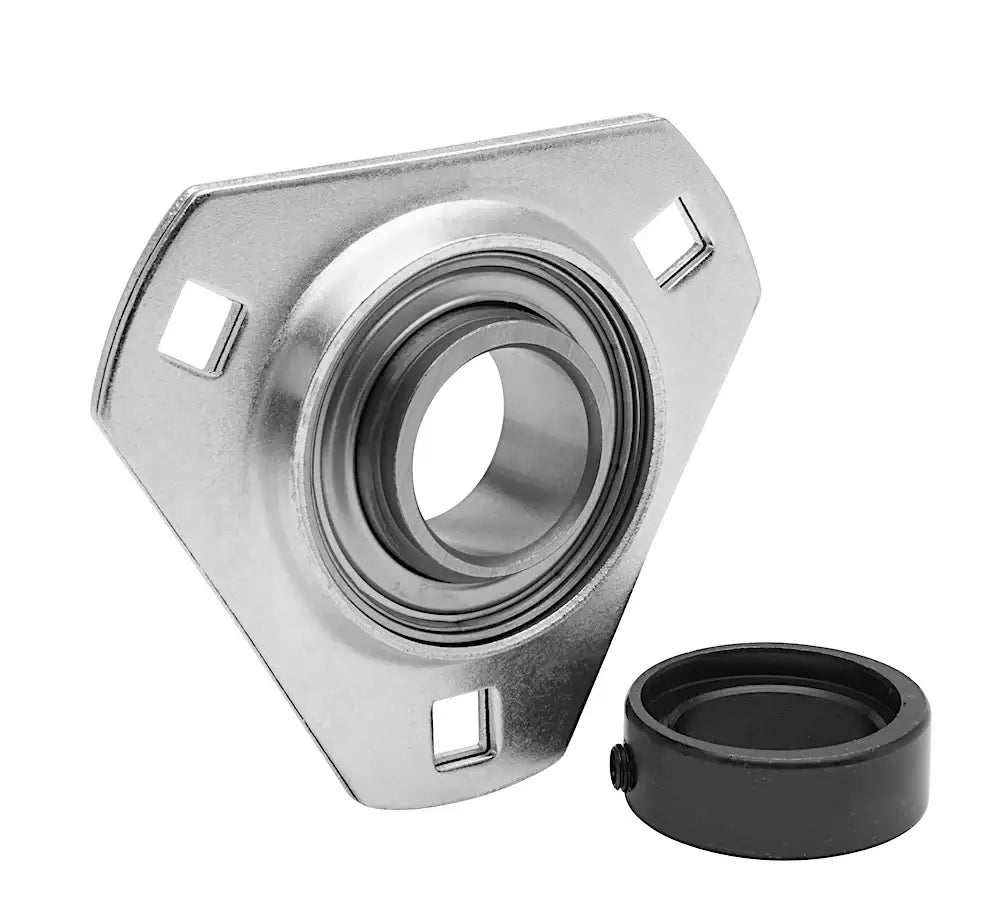

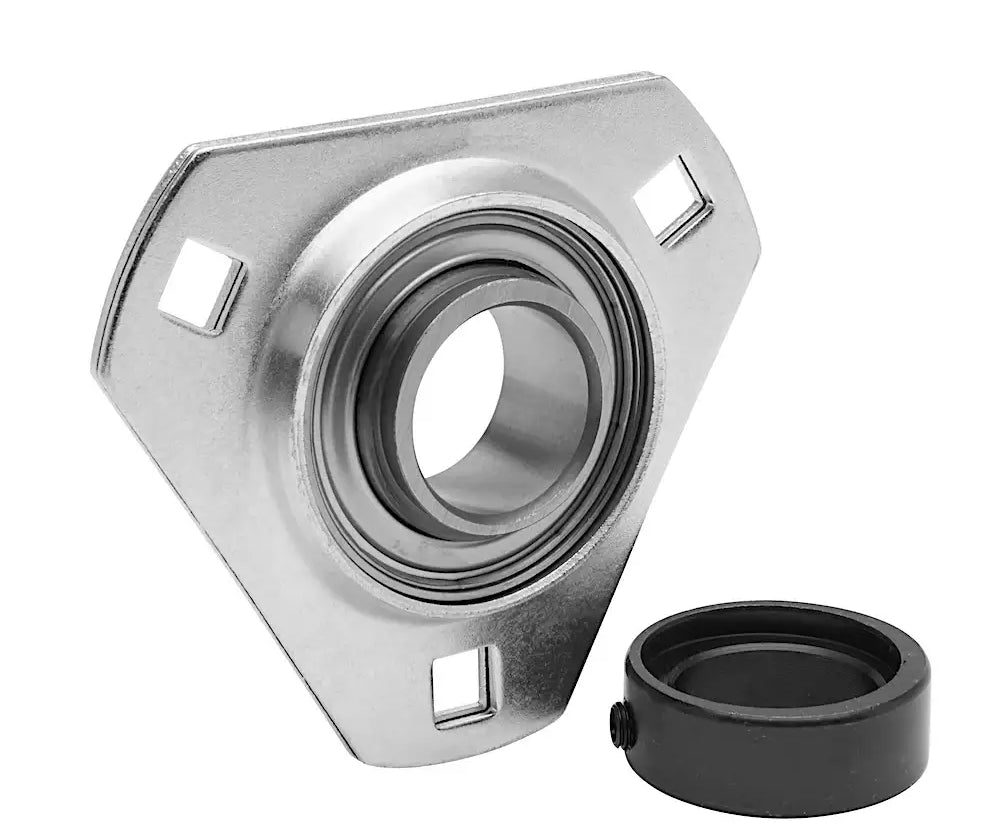

SAPFT206-20 Stamped Steel 3-Bolt Flange Bearing | 1-1/4" Bearing

SAPFT206-20 stamped steel bearing is a 3-bolt triangle flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 1-1/4" insert bearing that utilizes an eccentric locking collar for securing onto a shaft. SAPFT206-20 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the three-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing three mounting holes, the SAPFT206-20 1-1/4" bearing has incredible holding power and stability. Additionally, our SAPFT206-20 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SAPFT206-20 bearing, contact our customer support team, and we will be happy to assist you!

SAPFT206-20 Bearing Dimensions

• Part #: SAPFT206-20
• Bearing I.D: 1-1/4"
• Dimension (a): 3-11/16"
• Dimension (e): 3-35/64"
• Dimension (h): 1-1/2"
• Dimension (s): 13/32"
• Dimension (c): 21/32"
• Dimension (g): 7/64"
• Dimension (b): 1-1/8"
• Dimension (f): 2-51/64"
• Dimension (L): 1.406"
• Dimension (n): 0.315"
• Dimension (W): 1-3/4"
• Bolt Size: 3/8"
• Insert Bearing #: SA206-20
• Housing #: PFT206
• Weight: 0.88 LBS
