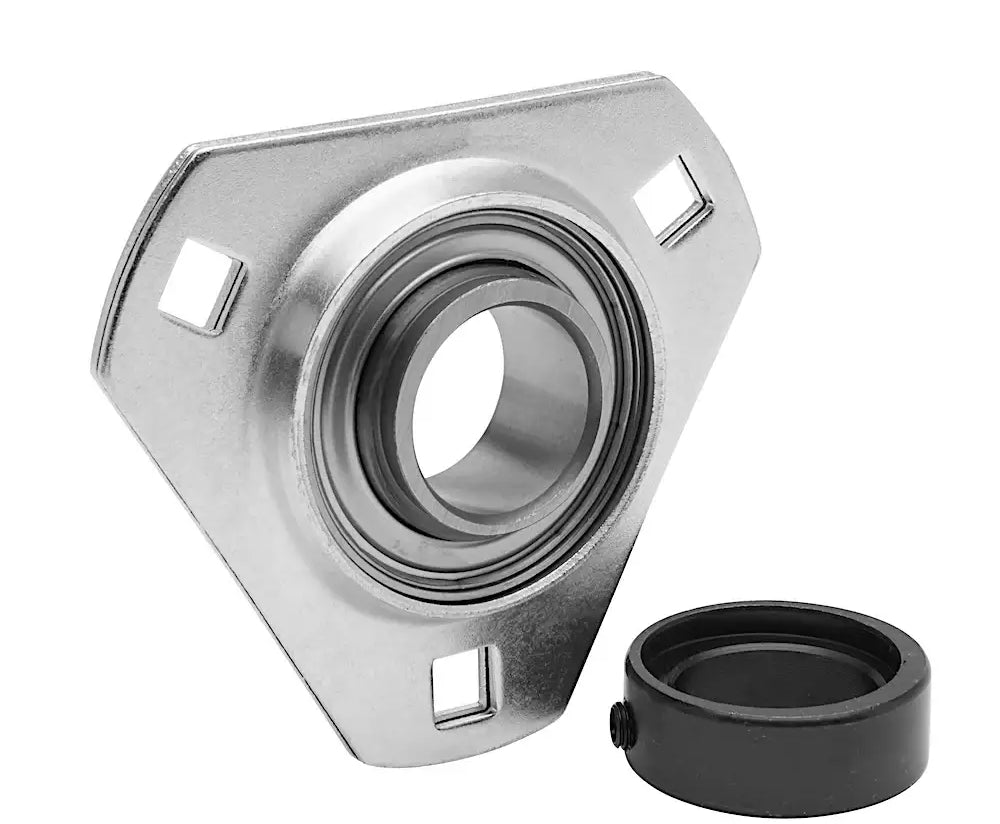

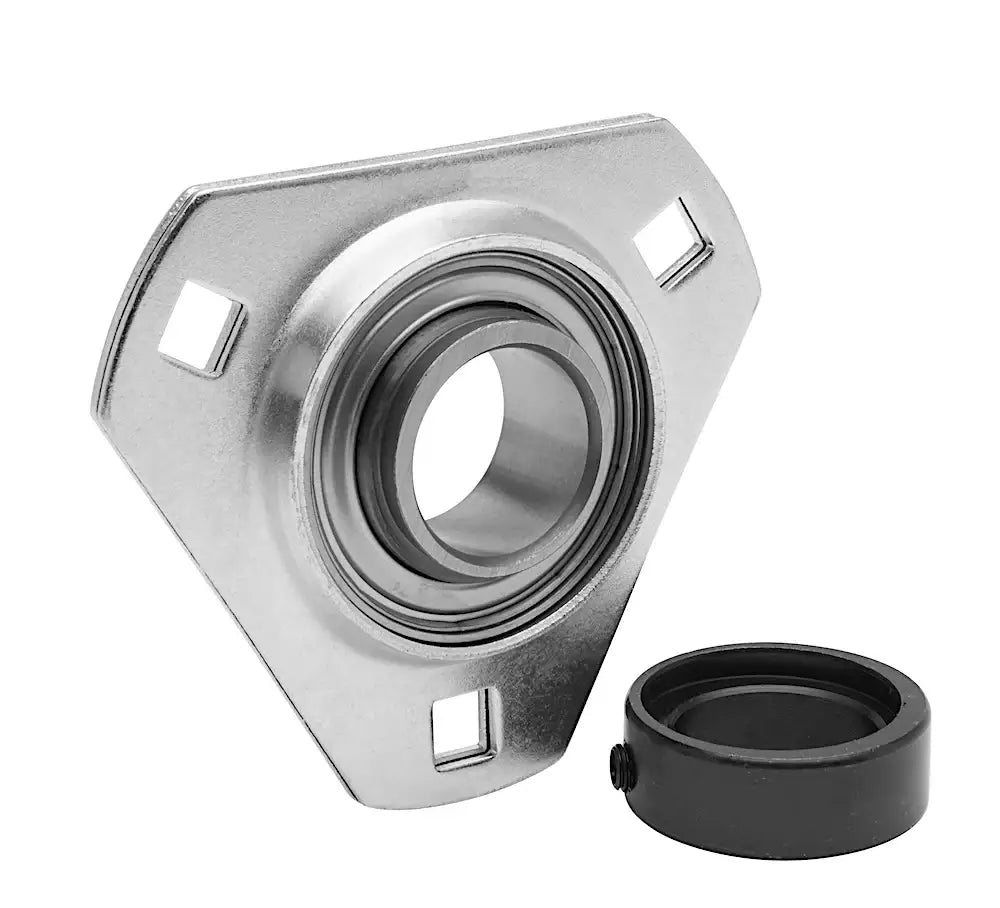

SAPFT207-23 Stamped Steel 3-Bolt Flange Bearing | 1-7/16" Bearing

SAPFT207-23 stamped steel bearing is a 3-bolt triangle flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 1-7/16" insert bearing that utilizes an eccentric locking collar for securing onto a shaft. SAPFT207-23 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the three-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing three mounting holes, the SAPFT207-23 1-7/16" bearing has incredible holding power and stability. Additionally, our SAPFT207-23 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SAPFT207-23 bearing, contact our customer support team, and we will be happy to assist you!

SAPFT207-23 Bearing Dimensions

• Part #: SAPFT207-23
• Bearing I.D: 1-7/16"
• Dimension (a): 4-11/16"
• Dimension (e): 3-15/16"
• Dimension (h): 1-3/4"
• Dimension (s): 13/32"
• Dimension (c): 3/4"
• Dimension (g): 7/64"
• Dimension (b): 1-1/4"
• Dimension (f): 3-3/16"
• Dimension (L): 1.531"
• Dimension (n): 0.335"
• Dimension (W): 2-3/16"
• Bolt Size: 3/16"
• Insert Bearing #: SA207-23
• Housing #: PFT207
• Weight: 1.54 LBS
