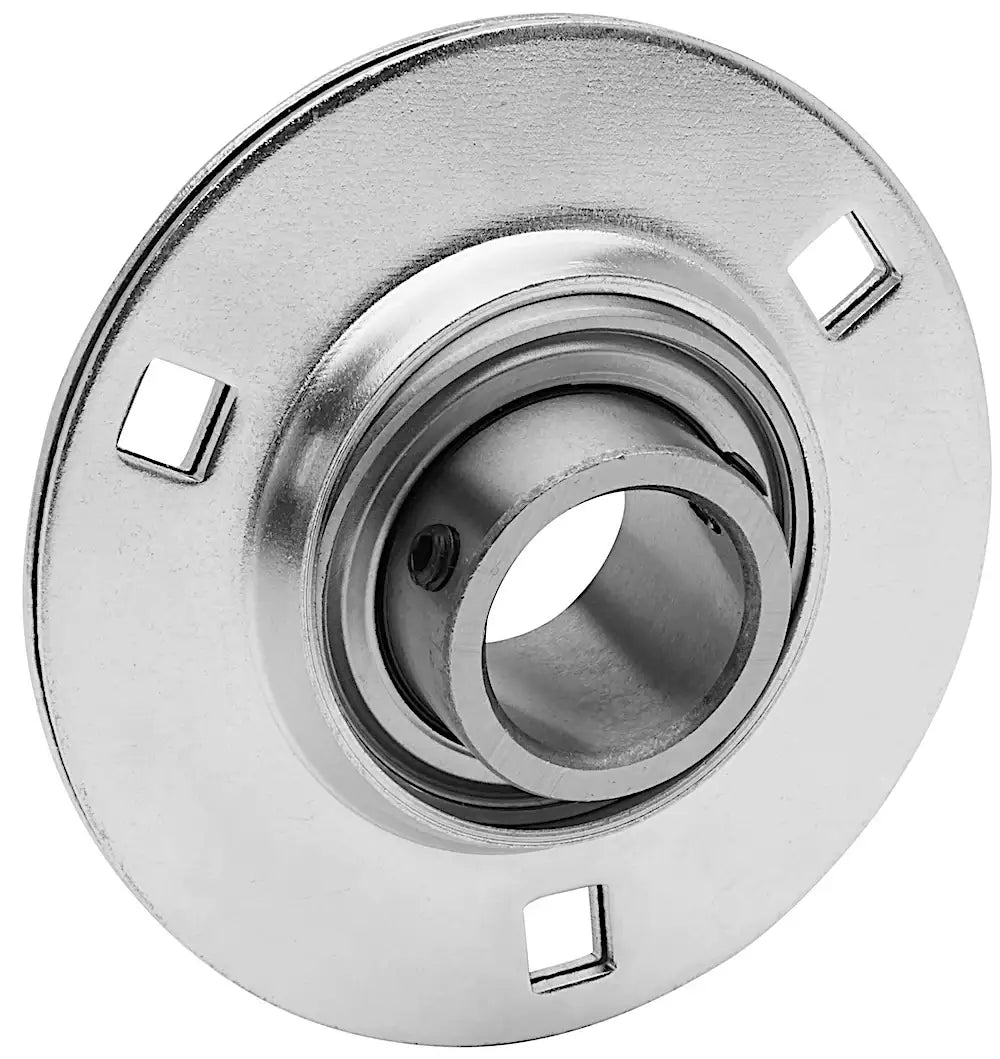

SBPF205G Stamped Steel 3-Bolt Flange Bearing | 25mm Bearing

SBPF205G stamped steel bearing is a 3-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality greasable stamped steel housing encases a performance C3 precision 25mm insert bearing that utilizes set screws for securing onto a shaft. SBPF205G bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the three-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing three mounting holes, the SBPF205G 25mm bearing has incredible holding power and stability. Additionally, our SBPF205G stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications, and is equipped with a grease zerk for re-lubing capabilities. For more information or to get a quote on our SBPF205G bearing, contact our customer support team, and we will be happy to assist you!

SBPF205G Bearing Dimensions

• Part #: SBPF205G
• Bearing ID: 25mm
• Dimension (a): 3-3/4"
• Dimension (e): 2-63/64"
• Dimension (g): 3/32"
• Dimension (c): 21/32"
• Dimension (s): 11/32"
• Dimension (f): 2-19/32"
• Dimension (Bi): 1.063"
• Dimension (n): 0.295"
• Bolt Size: 5/16"
• Number of Bolt Holes: 3
• Insert Bearing #: SB205
• Housing #: PF205G
• Weight: 0.0.75 LBS
