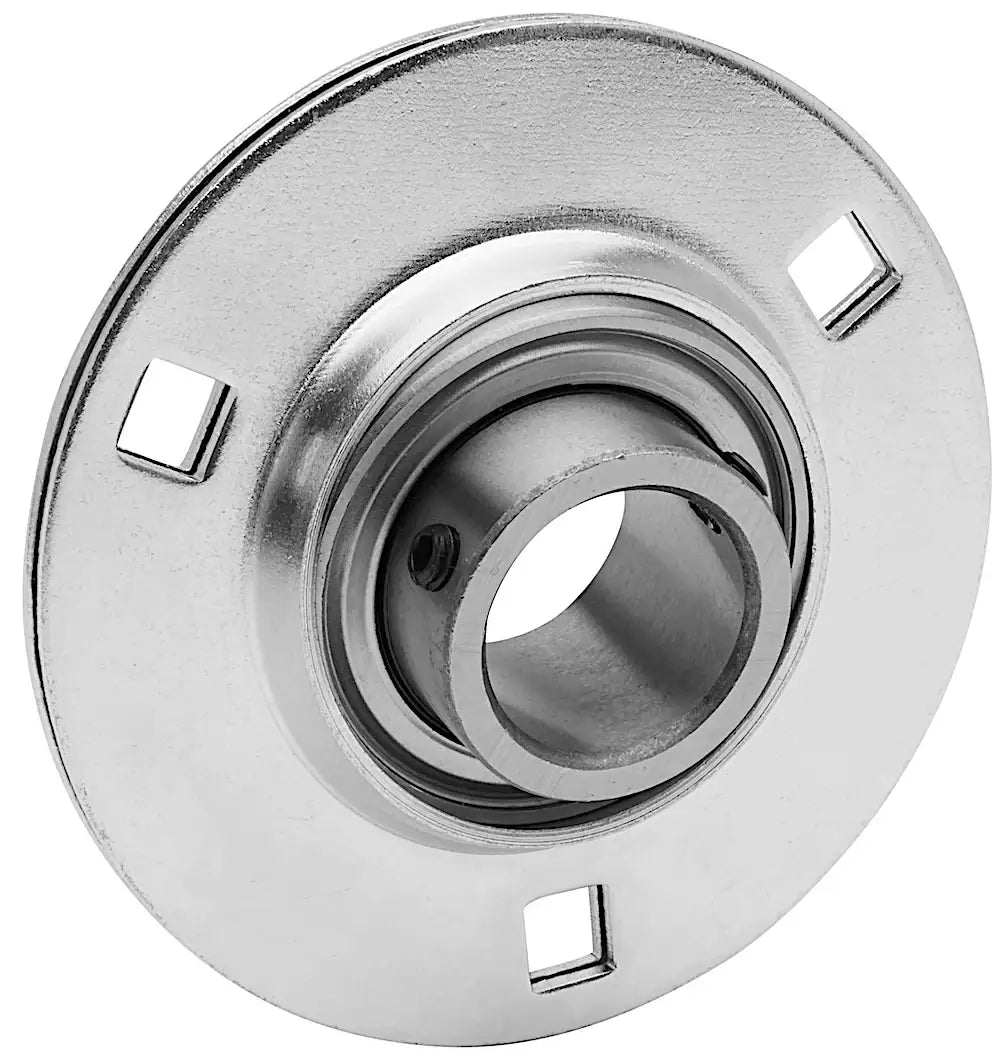

SBPF206-17 Stamped Steel 3-Bolt Flange Bearing | 1-1/16" Bearing

SBPF206-17 stamped steel bearing is a 3-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 1-1/16" insert bearing that utilizes set screws for securing onto a shaft. SBPF206-17 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the three-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing three mounting holes, the SBPF206-17 1-1/16" bearing has incredible holding power and stability. Additionally, our SBPF206-17 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SBPF206-17 bearing, contact our customer support team, and we will be happy to assist you!

SBPF206-17 Bearing Dimensions

• Part #: SBPF206-17
• Bearing ID: 1-1/16"
• Dimension (a): 4-7/16"
• Dimension (e): 3-35/64"
• Dimension (g): 7/64"
• Dimension (c): 21/32"
• Dimension (s): 13/32"
• Dimension (f): 2-51/64"
• Dimension (Bi): 1.181"
• Dimension (n): 0.315"
• Bolt Size: 3/8"
• Number of Bolt Holes: 3
• Insert Bearing #: SB206-17
• Housing #: PF206
• Weight: 1.41 LBS
