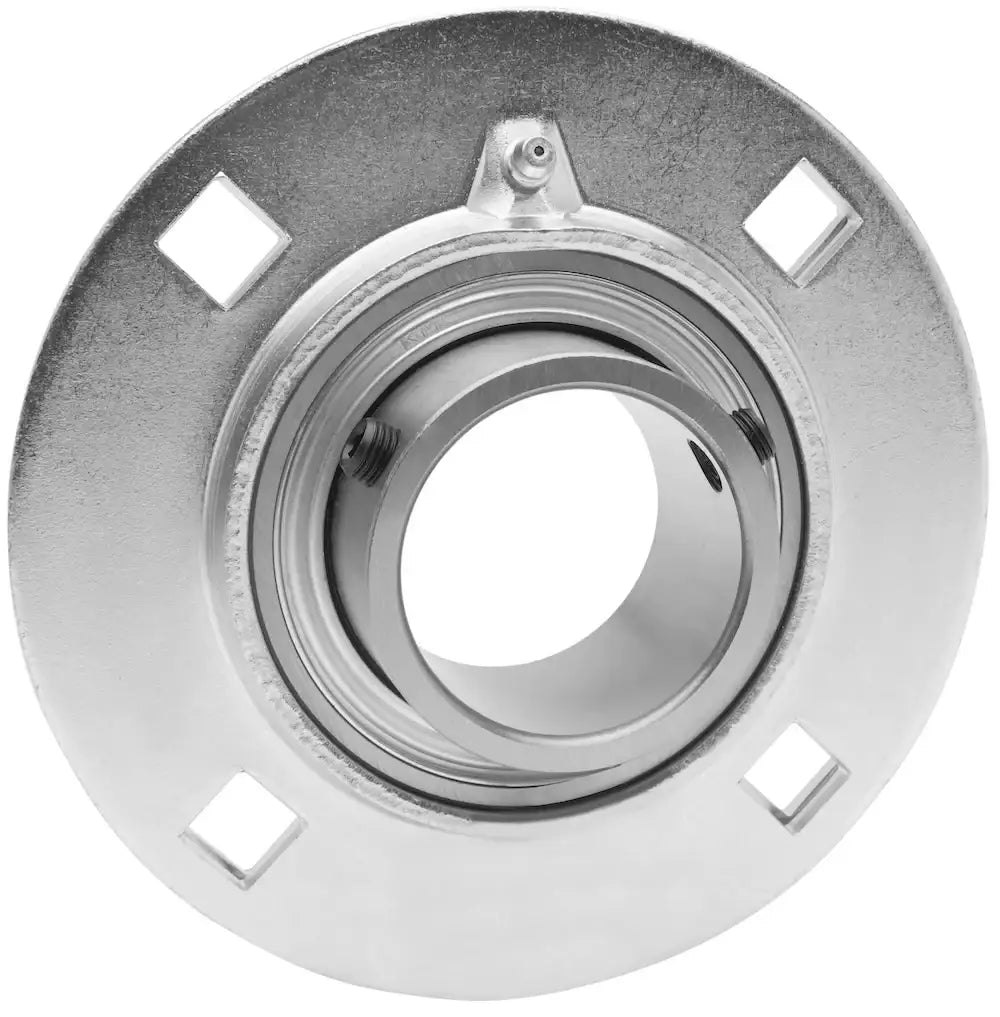

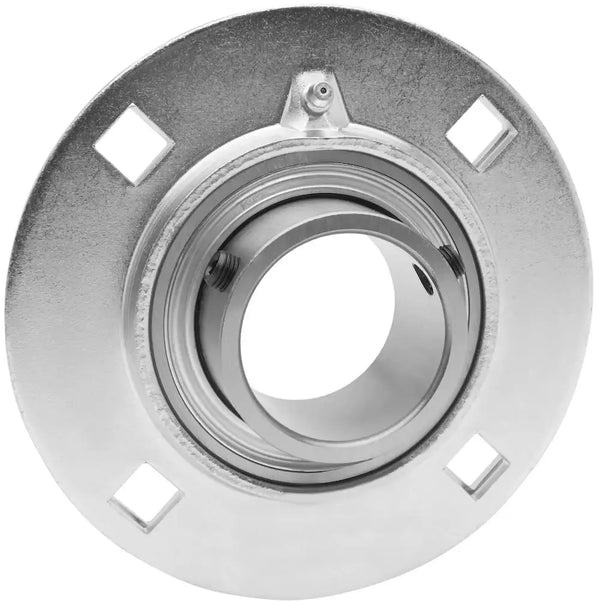

SBPF208-25G Stamped Steel 4-Bolt Flange Bearing | 1-9/16" Bearing

SBPF208-25G stamped steel bearing is a 4-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality greasable stamped steel housing encases a performance C3 precision 1-9/16" insert bearing that utilizes set screws for securing onto a shaft. SBPF208-25G bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the four-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing four mounting holes, the SBPF208-25G 1-9/16" bearing has incredible holding power and stability. Additionally, our SBPF208-25G stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications, and is equipped with a grease zerk for re-lubing capabilities. For more information or to get a quote on our SBPF208-25G bearing, contact our customer support team, and we will be happy to assist you!

SBPF208-25G Bearing Dimensions

• Part #: SBPF208-25G
• Bearing ID: 1-9/16"
• Dimension (a): 5-13/16"
• Dimension (e): 4-11/16"
• Dimension (g): 9/64"
• Dimension (c): 13/16"
• Dimension (s): 1/2"
• Dimension (f): 3-35/64"
• Dimension (Bi): 1.339"
• Dimension (n): 0.354"
• Bolt Size: 1/2"
• Number of Bolt Holes: 4
• Insert Bearing #: SB208-25
• Housing #: PF208G
• Weight: 2.50 LBS
