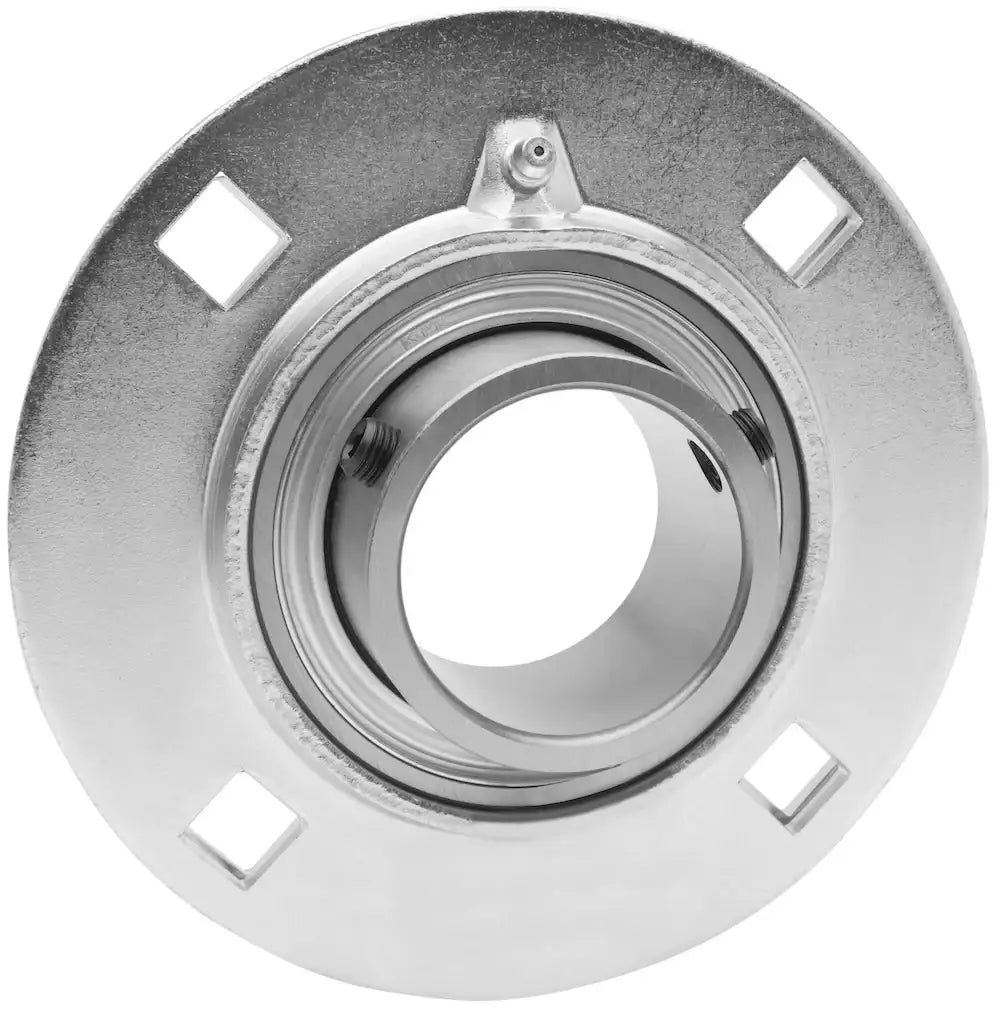

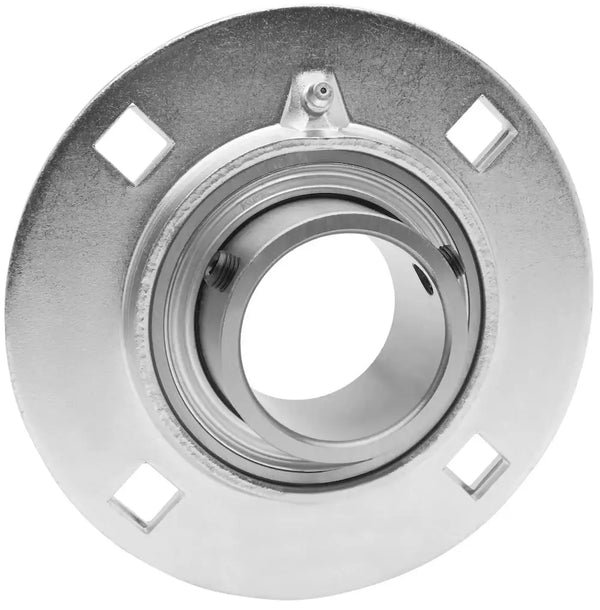

SBPF210-32G Stamped Steel 4-Bolt Flange Bearing | 2" Bearing

SBPF210-32G stamped steel bearing is a 4-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality greasable stamped steel housing encases a performance C3 precision 2" insert bearing that utilizes set screws for securing onto a shaft. SBPF210-32G bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the four-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing four mounting holes, the SBPF210-32G 2" bearing has incredible holding power and stability. Additionally, our SBPF210-32G stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications, and is equipped with a grease zerk for re-lubing capabilities. For more information or to get a quote on our SBPF210-32G bearing, contact our customer support team, and we will be happy to assist you!

SBPF210-32G Bearing Dimensions

• Part #: SBPF210-32G
• Bearing ID: 2"
• Dimension (a): 6-3/16"
• Dimension (e): 5"
• Dimension (g): 5/32"
• Dimension (c): 7/8"
• Dimension (s): 1/2"
• Dimension (f): 4-1/64"
• Dimension (Bi): 1.688"
• Dimension (n): 0.391"
• Bolt Size: 1/2"
• Number of Bolt Holes: 4
• Insert Bearing #: SB210-32
• Housing #: PF210G
• Weight: 3.30 LBS
