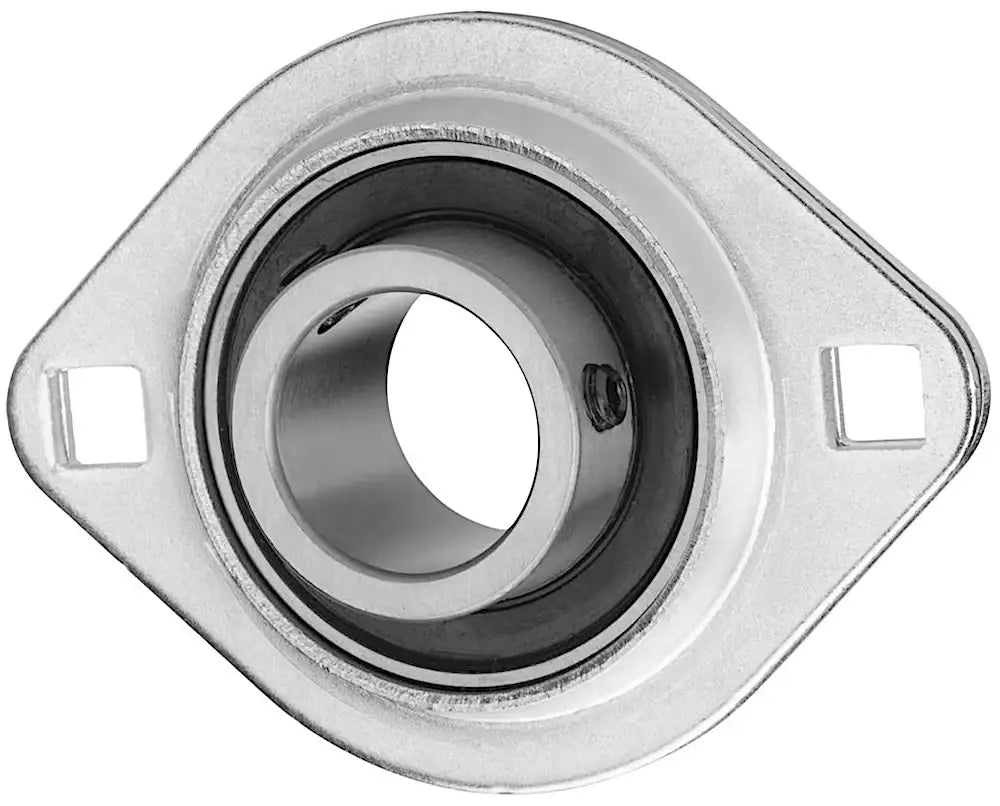

SBPFL206 Stamped Steel 2-Bolt Flange Bearing | 30mm Bearing

SBPFL206 stamped steel bearing is a 2-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 30mm insert bearing that utilizes set screws for securing onto a shaft. SBPFL206 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the two-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing two mounting holes, the SBPFL206 30mm bearing has incredible holding power, stability, and mounting position flexibility. Additionally, our SBPFL206 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SBPFL206 bearing, contact our customer support team, and we will be happy to assist you!

SBPFL206 Bearing Dimensions

• Bearing Part #: SBPFL206
• Bearing I.D: 30mm
• Dimension (a): 4-7/16"
• Dimension (e): 3-35/64"
• Dimension (g): 7/64"
• Dimension (c): 21/32"
• Dimension (s): 13/32"
• Dimension (b): 3-5/16"
• Dimension (f): 2-51/64"
• Dimension (Bi): 1.181"
• Dimension (n): 0.315"
• Bolt Size: 3/8"
• Insert Bearing #: SB206
• Housing #: PFL206
• Weight: 0.84 LBS
