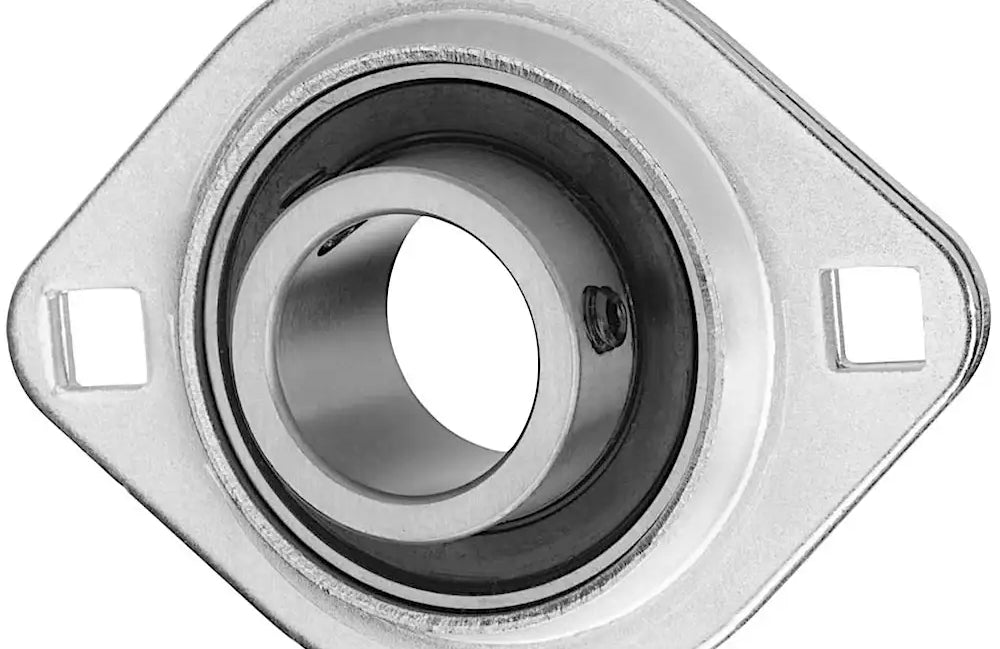

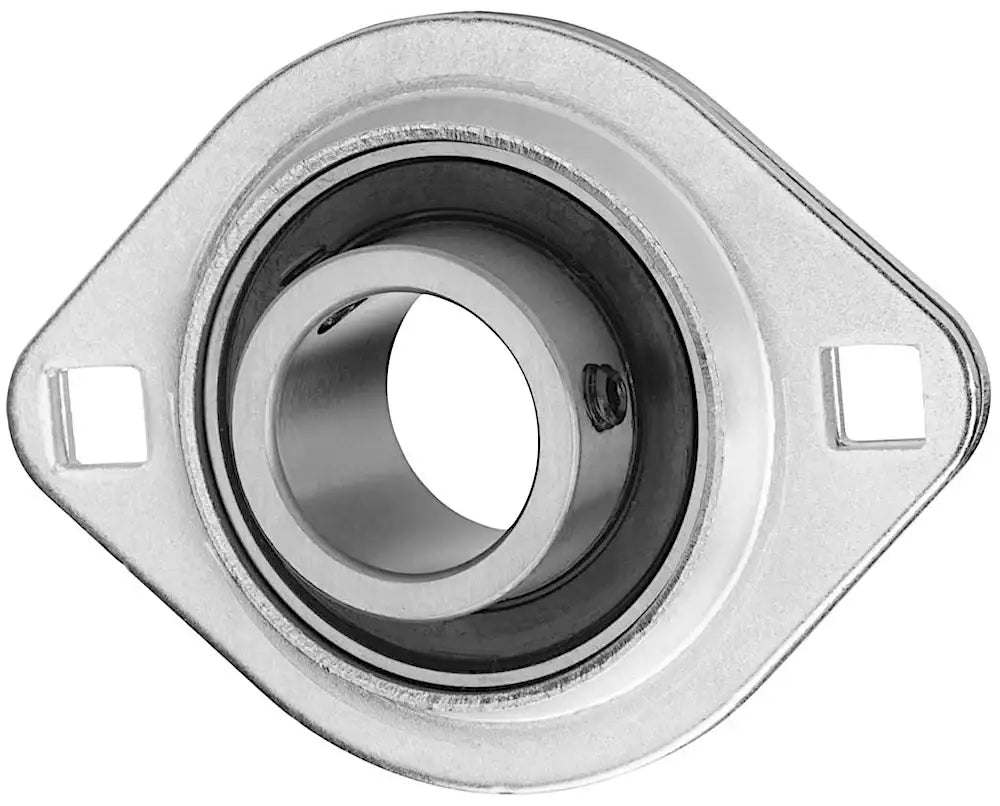

SBPFL207-23 Stamped Steel 2-Bolt Flange Bearing | 1-7/16" Bearing

SBPFL207-23 stamped steel bearing is a 2-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 1-7/16" insert bearing that utilizes set screws for securing onto a shaft. SBPFL207-23 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the two-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing two mounting holes, the SBPFL207-23 1-7/16" bearing has incredible holding power, stability, and mounting position flexibility. Additionally, our SBPFL207-23 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SBPFL207-23 bearing, contact our customer support team, and we will be happy to assist you!

SBPFL207-23 Bearing Dimensions

• Bearing Part #: SBPFL207-23
• Bearing I.D: 1-7/16"
• Dimension (a): 4-29/32"
• Dimension (e): 3-15/16"
• Dimension (g): 7/64"
• Dimension (c): 7/8"
• Dimension (s): 13/32"
• Dimension (b): 3-11/16"
• Dimension (f): 3-3/16"
• Dimension (Bi): 1.260"
• Dimension (n): 0.335"
• Bolt Size: 3/8"
• Insert Bearing #: SB207-23
• Housing #: PFL207
• Weight: 0.99 LBS
