SBPFT204 Stamped Steel 3-Bolt Flange Bearing | 20mm Bearing

Note: Custom Cut to Length Chain Also Available
$19.68
SKU: 5652-SBPFT204-BEARING
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

[{"variant_id":"51714667020655" , "metafield_value":""}]
SBPFT204 Stamped Steel 3-Bolt Flange Bearing | 20mm Bearing Features
SBPFT204 Stamped Steel 3-Bolt Flange Bearing | 20mm Bearing Specifications

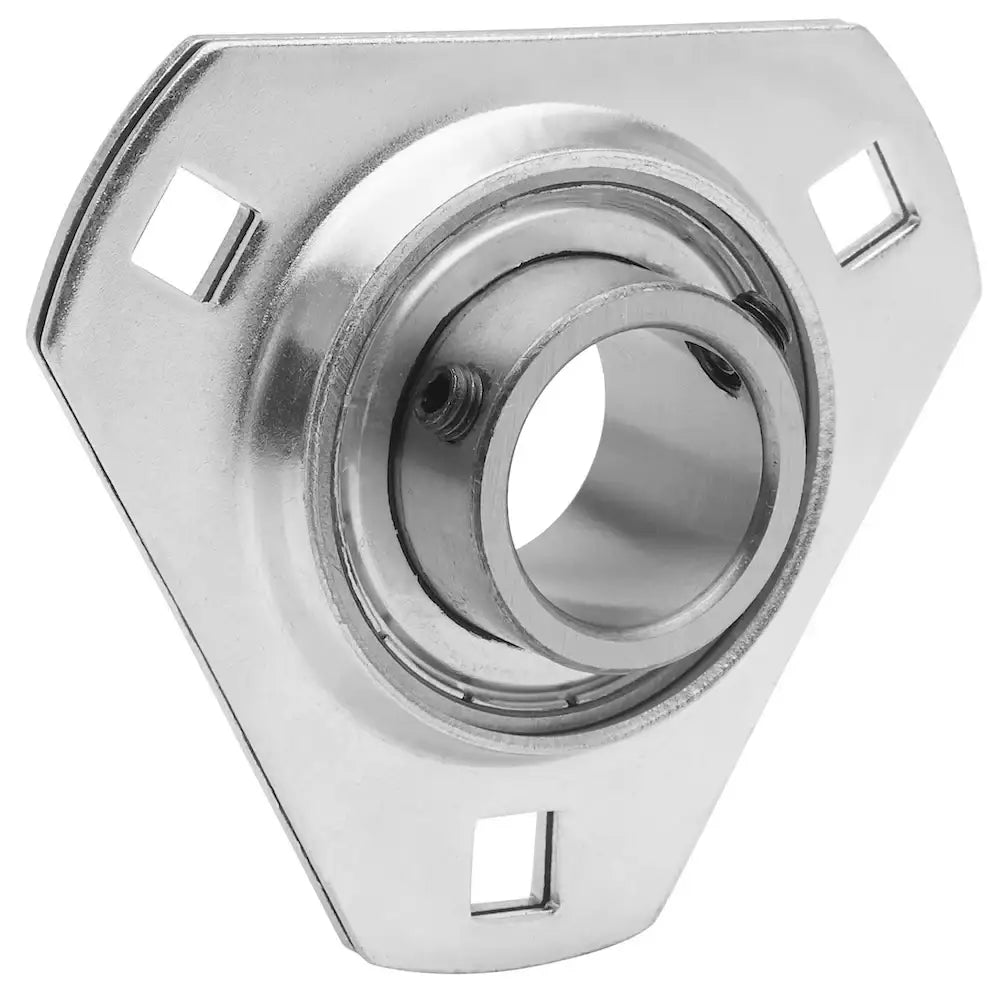

SBPFT204 stamped steel bearing is a 3-bolt triangle flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 20mm insert bearing that utilizes set screws for securing onto a shaft. SBPFT204 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the three-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing three mounting holes, the SBPFT204 20mm bearing has incredible holding power and stability. Additionally, our SBPFT204 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SBPFT204 bearing, contact our customer support team, and we will be happy to assist you!

SBPFT204 Bearing Dimensions

SBPFT204 Stamped Steel 3-Bolt Flange Bearing | 20mm Bearing
  • Part #: SBPFT204
  • Bearing I.D: 20mm
  • Dimension (a): 2-63/64"
  • Dimension (e): 2-51/64"
  • Dimension (h): 1-19/64"
  • Dimension (s): 11/32"
  • Dimension (c): 5/8"
  • Dimension (g): 3/32"
  • Dimension (b): 1-1/16"
  • Dimension (f): 2-7/32"
  • Dimension (Bi): 0.984"
  • Dimension (n): 0.276"
  • Bolt Size: 5/16"
  • Insert Bearing #: SB204
  • Housing #: PFT204
  • Weight: 0.59 LBS


  • Part #: SBPFT204
  • Bearing I.D: 20mm
  • Dimension (a): 2-63/64"
  • Dimension (e): 2-51/64"
  • Dimension (h): 1-19/64"
  • Dimension (s): 11/32"
  • Dimension (c): 5/8"
  • Dimension (g): 3/32"
  • Dimension (b): 1-1/16"
  • Dimension (f): 2-7/32"
  • Dimension (Bi): 0.984"
  • Dimension (n): 0.276"
  • Bolt Size: 5/16"
  • Insert Bearing #: SB204
  • Housing #: PFT204
  • Weight: 0.59 LBS
