SBPFT207-21 Stamped Steel 3-Bolt Flange Bearing | 1-5/16" Bearing
Note:
Custom Cut to Length Chain Also Available
$36.63
SKU: 5652-SBPFT207-21-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
SBPFT207-21 Stamped Steel 3-Bolt Flange Bearing | 1-5/16" Bearing Features
SBPFT207-21 Stamped Steel 3-Bolt Flange Bearing | 1-5/16" Bearing Specifications

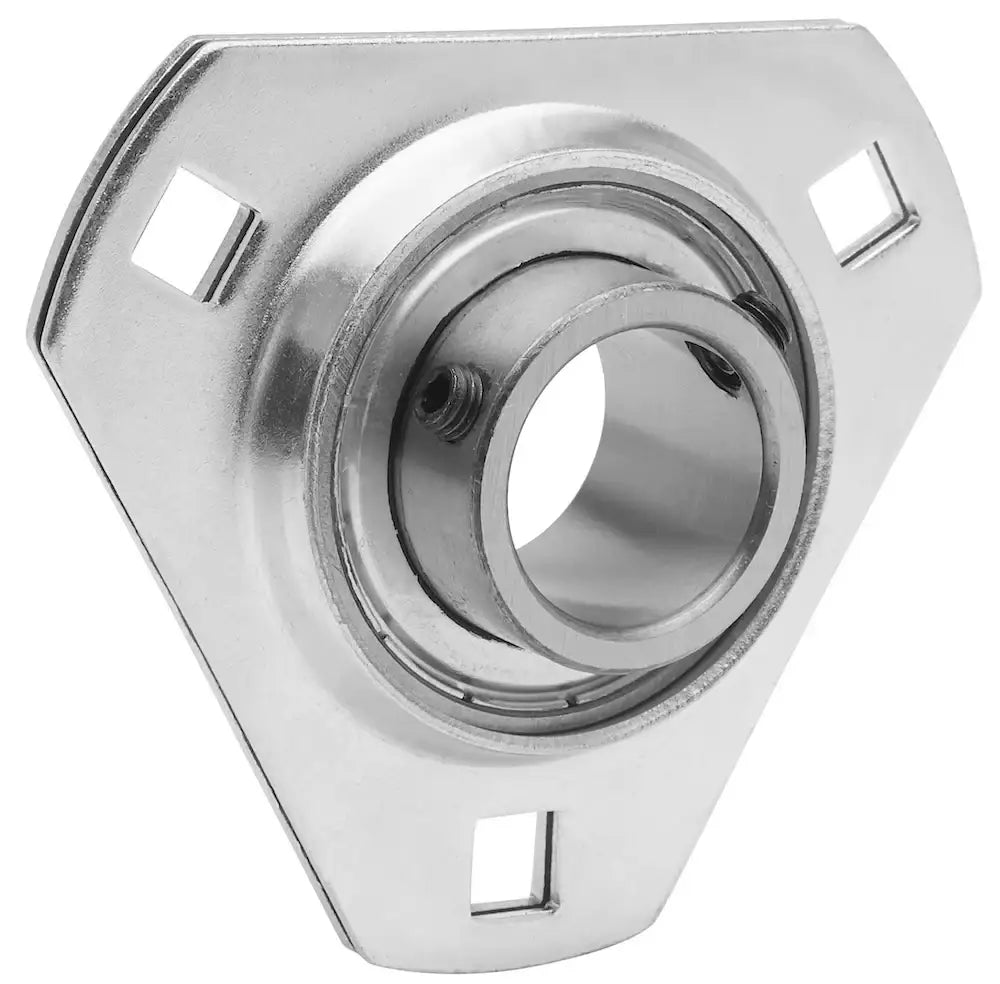

SBPFT207-21 stamped steel bearing is a 3-bolt triangle flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 1-5/16" insert bearing that utilizes set screws for securing onto a shaft. SBPFT207-21 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the three-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing three mounting holes, the SBPFT207-21 1-5/16" bearing has incredible holding power and stability. Additionally, our SBPFT207-21 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SBPFT207-21 bearing, contact our customer support team, and we will be happy to assist you!
SBPFT207-21 Bearing Dimensions
- Part #: SBPFT207-21
- Bearing I.D: 1-5/16"
- Dimension (a): 4-11/64"
- Dimension (e): 3-15/16"
- Dimension (h): 1-3/4"
- Dimension (s): 13/32"
- Dimension (c): 3/4"
- Dimension (g): 7/64"
- Dimension (b): 1-1/4"
- Dimension (f): 3-3/16"
- Dimension (Bi): 1.260"
- Dimension (n): 0.335"
- Bolt Size: 3/8"
- Insert Bearing #: SB207-21
- Housing #: PFT207
- Weight: 1.54 LBS
