Power Transmission > Bearings > Stamped Steel Bearings > Stamped Steel Flange Bearings

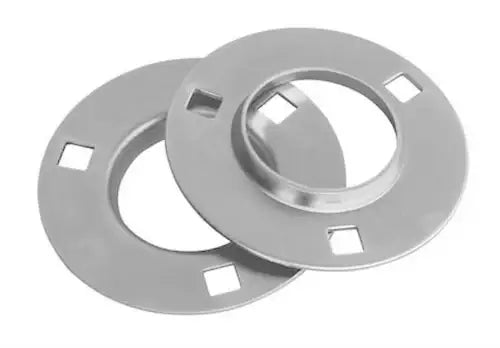

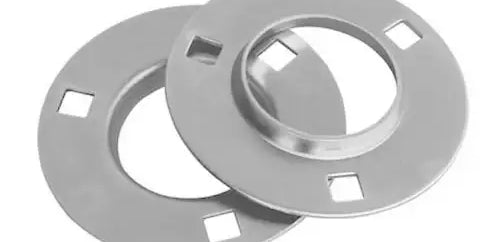

PF204G Stamped Steel 3-Bolt Flange Bearing Housing - Greasable
Note:
Custom Cut to Length Chain Also Available
$22.65
SKU: 5652-PF204G-HOUSING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
PF204G Stamped Steel 3-Bolt Flange Bearing Housing - Greasable Features
PF204G Stamped Steel 3-Bolt Flange Bearing Housing - Greasable Specifications
PF204G bearing housing is designed to encase a ball bearing insert bearing and is a stamped steel 3-bolt flange bearing housing. Our PF204G housing is precision stamped from high-quality steel for easy fitment along with installation; the housing is also zinc plated for protection against corrosion. The combination of precision stamping and high-quality steel material creates a PF204G flange bearing housing that will impress. Three-bolt stamped steel flange bearings are utilized in a wide range of light-duty agricultural and industrial applications and are more economical than their cast steel counterparts. For additional information or to get a quote on our PF204G housings, contact our customer support team, and we will be happy to assist you!
PF204G Housing Dimensions
- Part #: PF204G
- For Shaft Diameters: 3/4"
- Min. Frame Opening (A): 2-3/16"
- Flange Dia. (B): 3-9/16"
- Flange Shoulder Width (C): 5/8"
- Stock Thickness (G): 0.083"
- Bolt Size: 5/16"
- Bolt Hole Circle Dia. (D): 2-13/16"
- Hole Width: 11/32"
- Fafnir Part #: 47MS
- SKF Part #: F-47
- MRC Part #: 47MS-3
- New Departure Part #: FL47
- Part #: PF204G
- For Shaft Diameters: 3/4"
- Min. Frame Opening (A): 2-3/16"
- Flange Dia. (B): 3-9/16"
- Flange Shoulder Width (C): 5/8"
- Stock Thickness (G): 0.083"
- Bolt Size: 5/16"
- Bolt Hole Circle Dia. (D): 2-13/16"
- Hole Width: 11/32"
- Fafnir Part #: 47MS
- SKF Part #: F-47
- MRC Part #: 47MS-3
- New Departure Part #: FL47
