PF207G Stamped Steel 3-Bolt Flange Bearing Housing - Greasable
Note:
Custom Cut to Length Chain Also Available
$36.90
SKU: 5652-PF207G-HOUSING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
PF207G Stamped Steel 3-Bolt Flange Bearing Housing - Greasable Features
PF207G Stamped Steel 3-Bolt Flange Bearing Housing - Greasable Specifications

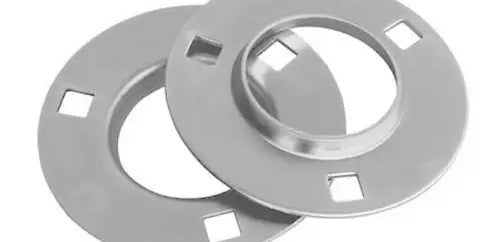

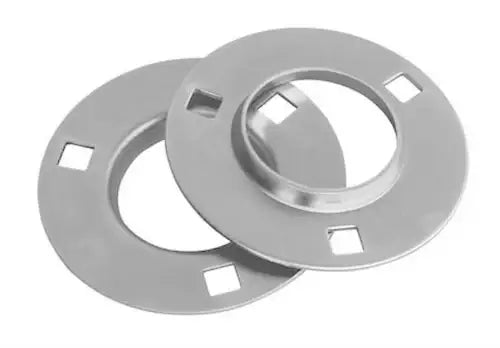

PF207G bearing housing is designed to encase a ball bearing insert bearing and is a stamped steel 3-bolt flange bearing housing. Our PF207G housing is precision stamped from high-quality steel for easy fitment along with installation; the housing is also zinc plated for protection against corrosion. The combination of precision stamping and high-quality steel material creates a PF207G flange bearing housing that will impress. Three-bolt stamped steel flange bearings are utilized in a wide range of light-duty agricultural and industrial applications and are more economical than their cast steel counterparts. For additional information or to get a quote on our PF207G housings, contact our customer support team, and we will be happy to assist you!
PF207G Housing Dimensions
- Part #: PF207G
- For Shaft Diameters: 1-1/4", 1-5/16", 1-3/8" 1-7/16"
- Min. Frame Opening (A): 3-3/16"
- Flange Dia. (B): 4-13/16"
- Flange Shoulder Width (C): 3/4"
- Stock Thickness (G): 0.104"
- Bolt Size: 3/8"
- Bolt Hole Circle Dia. (D): 3-15/16"
- Hole Width: 13/32"
- Fafnir Part #: 72MS
- SKF Part #: F-72
- MRC Part #: 72MS-3
- New Departure Part #: FL72
- Part #: PF207G
- For Shaft Diameters: 1-1/4", 1-5/16", 1-3/8" 1-7/16"
- Min. Frame Opening (A): 3-3/16"
- Flange Dia. (B): 4-13/16"
- Flange Shoulder Width (C): 3/4"
- Stock Thickness (G): 0.104"
- Bolt Size: 3/8"
- Bolt Hole Circle Dia. (D): 3-15/16"
- Hole Width: 13/32"
- Fafnir Part #: 72MS
- SKF Part #: F-72
- MRC Part #: 72MS-3
- New Departure Part #: FL72
