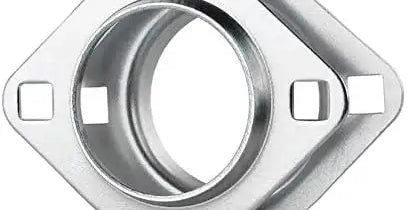

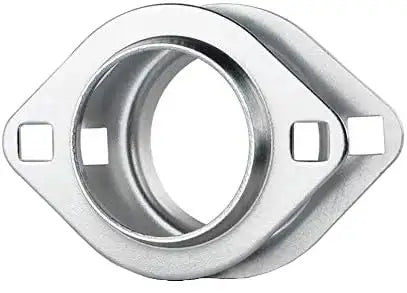

PFL205 Stamped Steel 2-Bolt Flange Bearing Housing
Note:
Custom Cut to Length Chain Also Available
$8.97
SKU: 5652-PFL205-HOUSING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
PFL205 Stamped Steel 2-Bolt Flange Bearing Housing Features
PFL205 Stamped Steel 2-Bolt Flange Bearing Housing Specifications
PFL205 bearing housing is designed to encase a ball bearing insert bearing and is a stamped steel 2-bolt flange bearing housing. Our PFL205 housing is precision stamped from high-quality steel for easy fitment along with installation; the housing is also zinc plated for protection against corrosion. The combination of precision stamping and high-quality steel material creates a PFL205 flange bearing housing that will impress. Two-bolt stamped steel flange bearings are utilized in a wide range of light-duty agricultural and industrial applications and are more economical than their cast steel counterparts. For additional information or to get a quote on our PFL205 housings, contact our customer support team, and we will be happy to assist you!
PFL205 Housing Dimensions
- Housing Part #: PFL205
- Shaft Sizes: 7/8" , 1"
- Dimension (A): 52mm
- Dimension (B): 2-51/64"
- Dimension (C): 3-3/4"
- Dimension (D): 3"
- Dimension (E): 11/32"
- Dimension (F): 11/32"
- Dimension (H): 2-3/8"
- Dimension (J): 0.083"
- Bolt Size: 5/16"
- Radial Load Rating: 800 LBS
- Fafnir Part #: 52MST
- SKF Part #: FT-52
- NTN Part#: PFL205
- Housing Part #: PFL205
- Shaft Sizes: 7/8" , 1"
- Dimension (A): 52mm
- Dimension (B): 2-51/64"
- Dimension (C): 3-3/4"
- Dimension (D): 3"
- Dimension (E): 11/32"
- Dimension (F): 11/32"
- Dimension (H): 2-3/8"
- Dimension (J): 0.083"
- Bolt Size: 5/16"
- Radial Load Rating: 800 LBS
- Fafnir Part #: 52MST
- SKF Part #: FT-52
- NTN Part#: PFL205
