Power Transmission > Bearings > Mounted Bearings > Insert Bearings

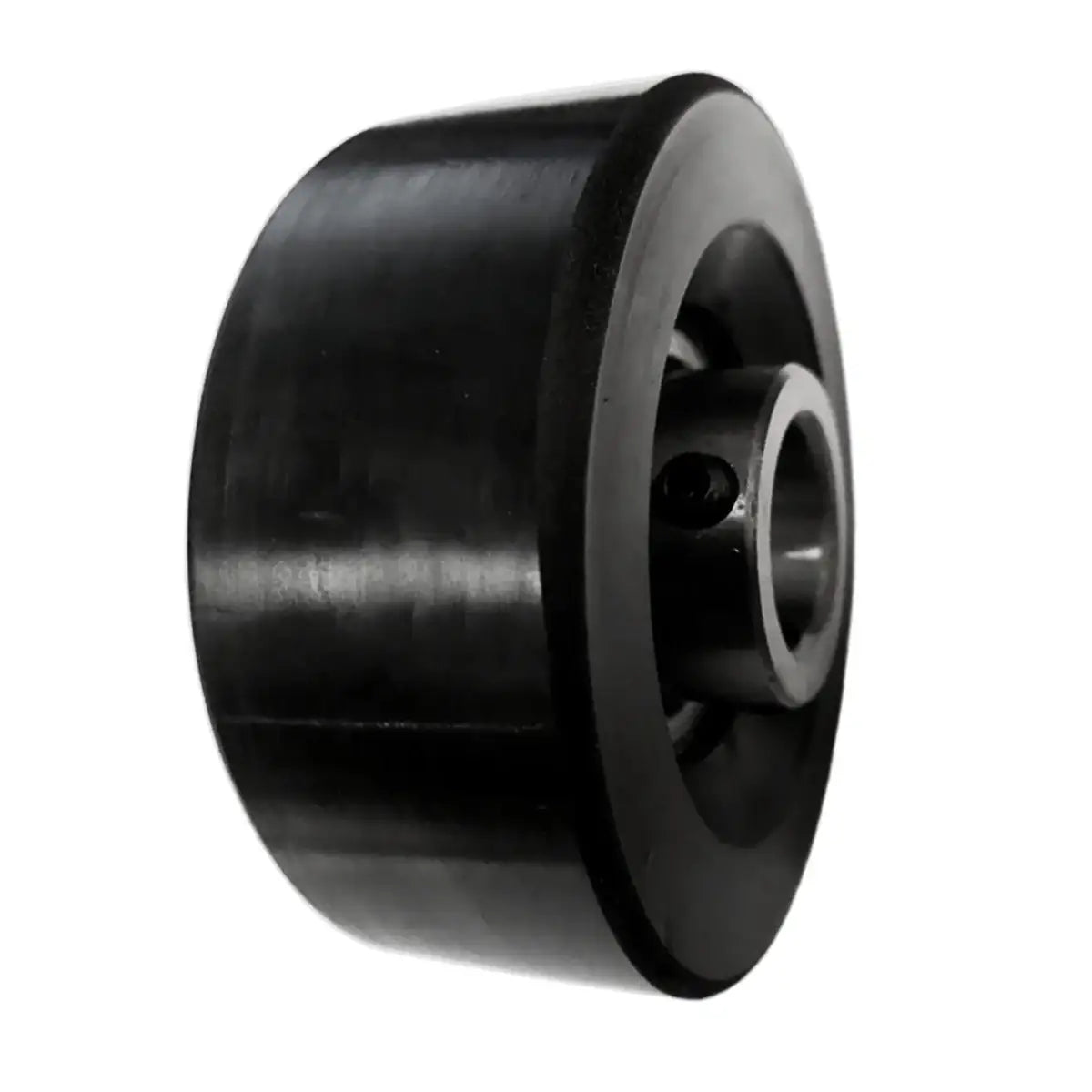

RCSM-14 Bearing | RCSM-14 Vibration Damping Insert Bearing
Note:
Custom Cut to Length Chain Also Available
$34.77
SKU: 5652-RCSM-14-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
RCSM-14 Bearing | RCSM-14 Vibration Damping Insert Bearing Features
RCSM-14 Bearing | RCSM-14 Vibration Damping Insert Bearing Specifications
Our vibration-damping RCSM-14 bearing is made according to C3 precision standards, utilises high-grade materials for superior performance and durability, and has a 7/8" bearing inside diameter. Vibration damping bearings are used in various industrial applications such as; HVAC, conveyor beds, live bottom rollers, high-speed rollers, and more! The RCSM-14 bearing utilises an eccentric locking collar for securing onto a 7/8" shaft and a static conductive rubber cushion that dampens vibrations. For additional information or to get a quote on RCSM-14 bearings, contact our customer support team, and we will be happy to assist you!
RCSM-14 Bearing Dimensions
- Unit Part #: RCSM-14
- Bearing I.D: 7/8"
- Dimension (D): 2-17/32"
- Dimension (A): 1"
- Dimension (M): 1-25/32"
- Dimension (d1): 1-1/2"
- Dimension (S1): 59/64"
- Dimension (T): 1/2"
- Bearing Part #: CSA205-14
- Rubber Part #: RCSM 52/65
- Housing Radial Load Rating: 300 LBF
- Weight: 1.19 LBS
- Unit Part #: RCSM-14
- Bearing I.D: 7/8"
- Dimension (D): 2-17/32"
- Dimension (A): 1"
- Dimension (M): 1-25/32"
- Dimension (d1): 1-1/2"
- Dimension (S1): 59/64"
- Dimension (T): 1/2"
- Bearing Part #: CSA205-14
- Rubber Part #: RCSM 52/65
- Housing Radial Load Rating: 300 LBF
- Weight: 1.19 LBS
