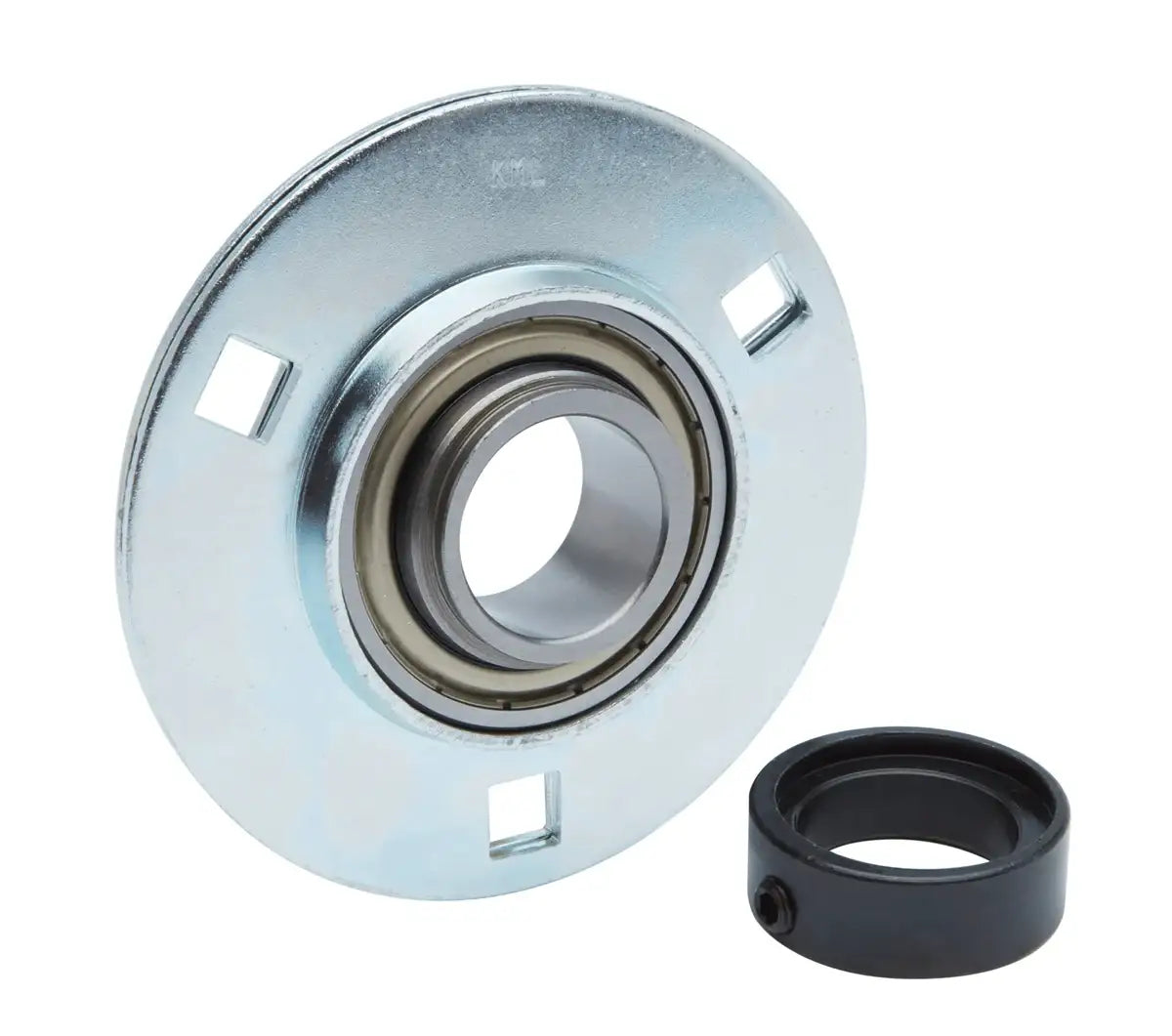

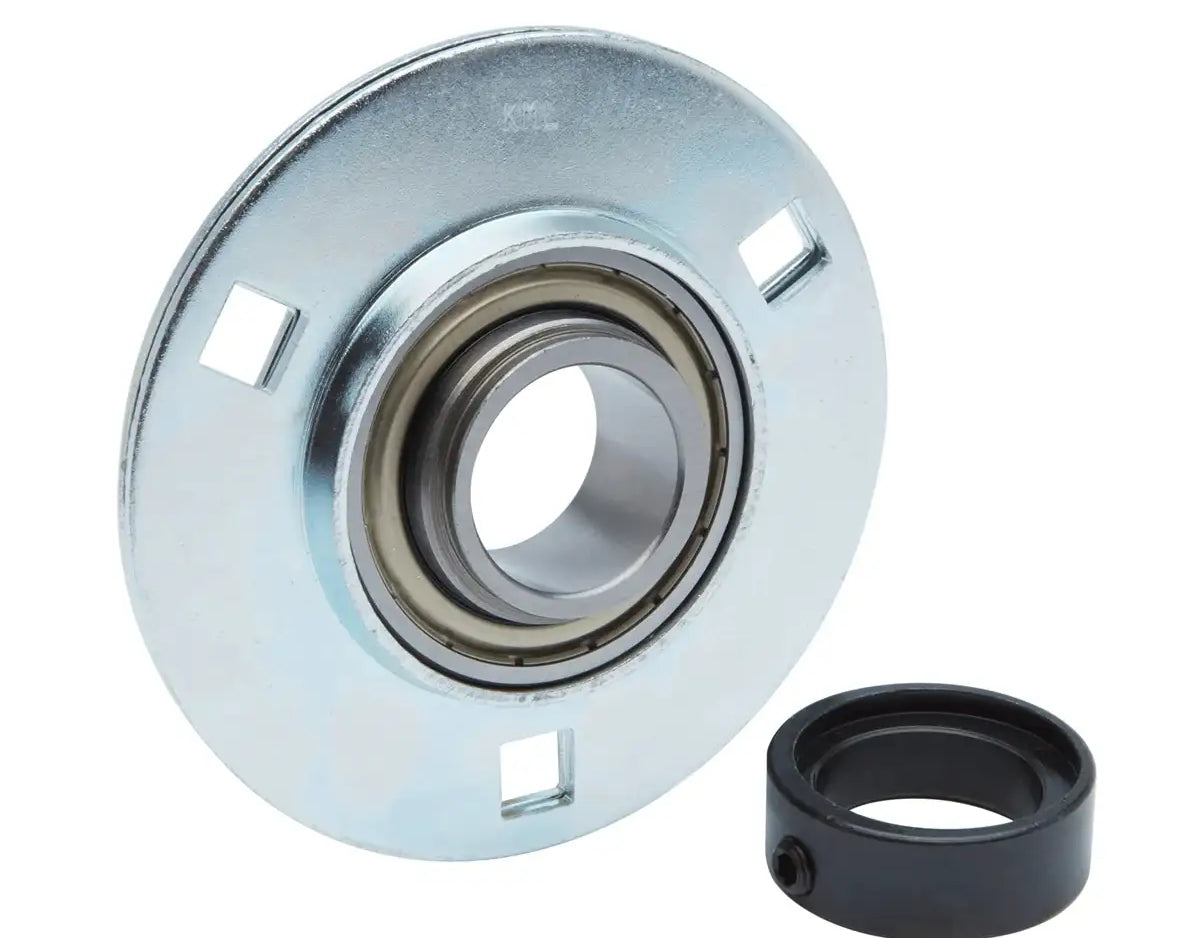

SAPF207 Stamped Steel 3-Bolt Flange Bearing | 35mm Bearing

SAPF207 stamped steel bearing is a 3-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 35mm insert bearing that utilizes an eccentric locking collar for securing onto a shaft. SAPF207 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the three-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing three mounting holes, the SAPF207 35mm bearing has incredible holding power and stability. Additionally, our SAPF207 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SAPF207 bearing, contact our customer support team, and we will be happy to assist you!

SAPF207 Bearing Dimensions

• Part #: SAPF207
• Bearing ID: 35mm
• Dimension (a): 4-13/16"
• Dimension (e): 3-15/16"
• Dimension (g): 7/64"
• Dimension (c): 3/4"
• Dimension (s): 13/32"
• Dimension (f): 3-3/16"
• Dimension (L): 1.531"
• Dimension (n): 0.335"
• Dimension (W): 2-15/64"
• Bolt Size: 3/8"
• Number of Bolt Holes: 3
• Insert Bearing #: SA207

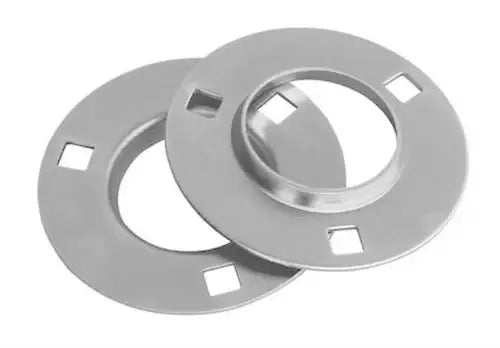

• Housing #: PF207
• Weight: 1.85 LBS
