SAR205-15 Bearing | SAR205-15 Vibration Damping Insert Bearing
Note:
Custom Cut to Length Chain Also Available
$29.49
SKU: 5652-SAR205-15-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
SAR205-15 Bearing | SAR205-15 Vibration Damping Insert Bearing Features
SAR205-15 Bearing | SAR205-15 Vibration Damping Insert Bearing Specifications

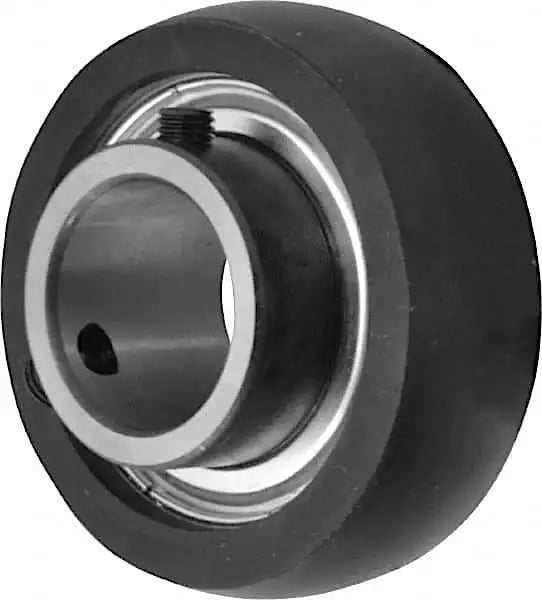

Our vibration-damping SAR205-15 bearing is made according to C3 precision standards, utilises high-grade materials for superior performance and durability, and has a 15/16" bearing inside diameter. Vibration damping bearings are used in various industrial applications such as; HVAC, conveyor beds, live bottom rollers, high-speed rollers, and more! The SAR205-15 bearing utilises an eccentric locking collar for securing onto a 15/16" shaft and a static conductive rubber cushion that dampens vibrations. For additional information or to get a quote on SAR205-15 bearings, contact our customer support team, and we will be happy to assist you!
SAR205-15 Bearing Dimensions
- Unit Part #: SAR205-15
- Bearing I.D: 15/16"
- Dimension (D): 2-29/64"
- Dimension (L): 1.220"
- Dimension (A): 13/16"
- Dimension (M): 1-27/32"
- Dimension (d1): 1-1/2"
- Dimension (S1): 59/64"
- Dimension (T): 13/32"
- Bearing Part #: SA205-15
- Rubber Part #: R-6
- Housing Radial Load Rating: 300 LBF
- Unit Part #: SAR205-15
- Bearing I.D: 15/16"
- Dimension (D): 2-29/64"
- Dimension (L): 1.220"
- Dimension (A): 13/16"
- Dimension (M): 1-27/32"
- Dimension (d1): 1-1/2"
- Dimension (S1): 59/64"
- Dimension (T): 13/32"
- Bearing Part #: SA205-15
- Rubber Part #: R-6
- Housing Radial Load Rating: 300 LBF
