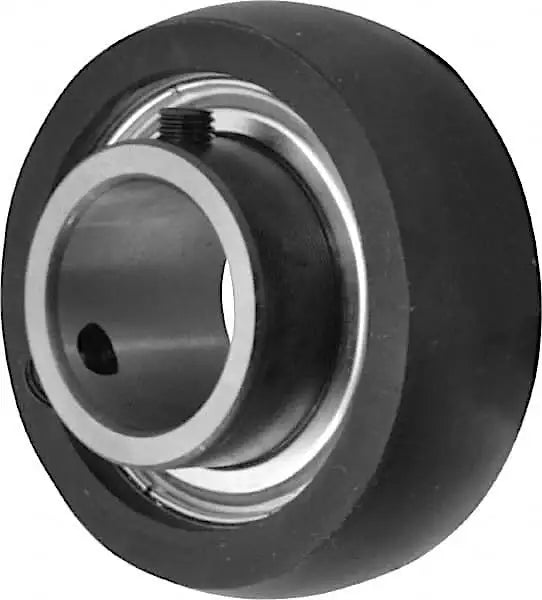

SAR206 Bearing | SAR206 Vibration Damping Insert Bearing
Note:
Custom Cut to Length Chain Also Available
$35.76
SKU: 5652-SAR206-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
SAR206 Bearing | SAR206 Vibration Damping Insert Bearing Features
SAR206 Bearing | SAR206 Vibration Damping Insert Bearing Specifications
Our vibration-damping SAR206 bearing is made according to C3 precision standards, utilises high-grade materials for superior performance and durability, and has a 30mm bearing inside diameter. Vibration damping bearings are used in various industrial applications such as; HVAC, conveyor beds, live bottom rollers, high-speed rollers, and more! The SAR206 bearing utilises an eccentric locking collar for securing onto a 30mm shaft and a static conductive rubber cushion that dampens vibrations. For additional information or to get a quote on SAR206 bearings, contact our customer support team, and we will be happy to assist you!
SAR206 Bearing Dimensions
- Unit Part #: SAR206
- Bearing I.D: 30mm
- Dimension (D): 2-27/32"
- Dimension (L): 1.406"
- Dimension (A): 7/8"
- Dimension (M): 2-7/16"
- Dimension (d1): 1-3/4"
- Dimension (S1): 1-1/8"
- Dimension (T): 13/32"
- Bearing Part #: SA206
- Rubber Part #: R-7
- Housing Radial Load Rating: 300 LBF
- Unit Part #: SAR206
- Bearing I.D: 30mm
- Dimension (D): 2-27/32"
- Dimension (L): 1.406"
- Dimension (A): 7/8"
- Dimension (M): 2-7/16"
- Dimension (d1): 1-3/4"
- Dimension (S1): 1-1/8"
- Dimension (T): 13/32"
- Bearing Part #: SA206
- Rubber Part #: R-7
- Housing Radial Load Rating: 300 LBF
