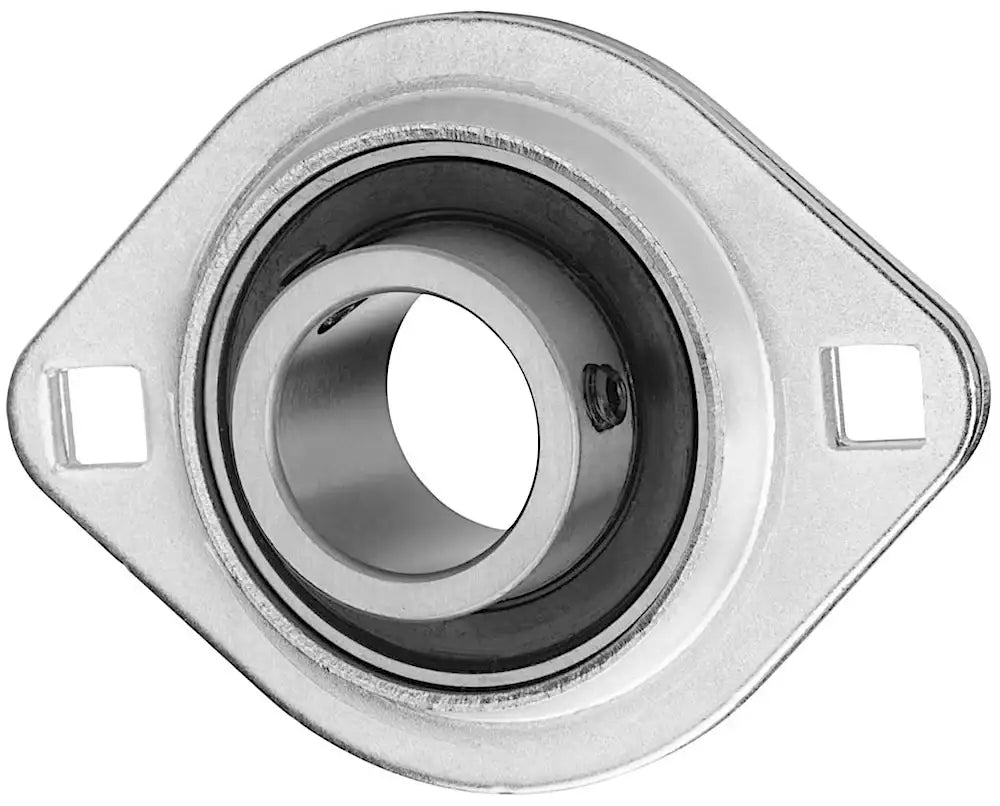

SBPFL204-12 Stamped Steel 2-Bolt Flange Bearing | 3/4" Bearing

SBPFL204-12 stamped steel bearing is a 2-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 3/4" insert bearing that utilizes set screws for securing onto a shaft. SBPFL204-12 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the two-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing two mounting holes, the SBPFL204-12 3/4" bearing has incredible holding power, stability, and mounting position flexibility. Additionally, our SBPFL204-12 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SBPFL204-12 bearing, contact our customer support team, and we will be happy to assist you!

SBPFL204-12 Bearing Dimensions

• Bearing Part #: SBPFL204-12
• Bearing I.D: 3/4"
• Dimension (a): 3-35/64"
• Dimension (e): 2-51/64"
• Dimension (g): 3/32"
• Dimension (c): 5/8"
• Dimension (s): 11/32"
• Dimension (b): 2-5/8"
• Dimension (f): 2-7/32"
• Dimension (Bi): 0.954"
• Dimension (n): 0.276"
• Bolt Size: 5/16"
• Insert Bearing #: SB204
• Housing #: PFL204
• Weight: 0.53 LBS
