SBPP206 Stamped Steel Pillow Block Bearing | 30mm Bearing

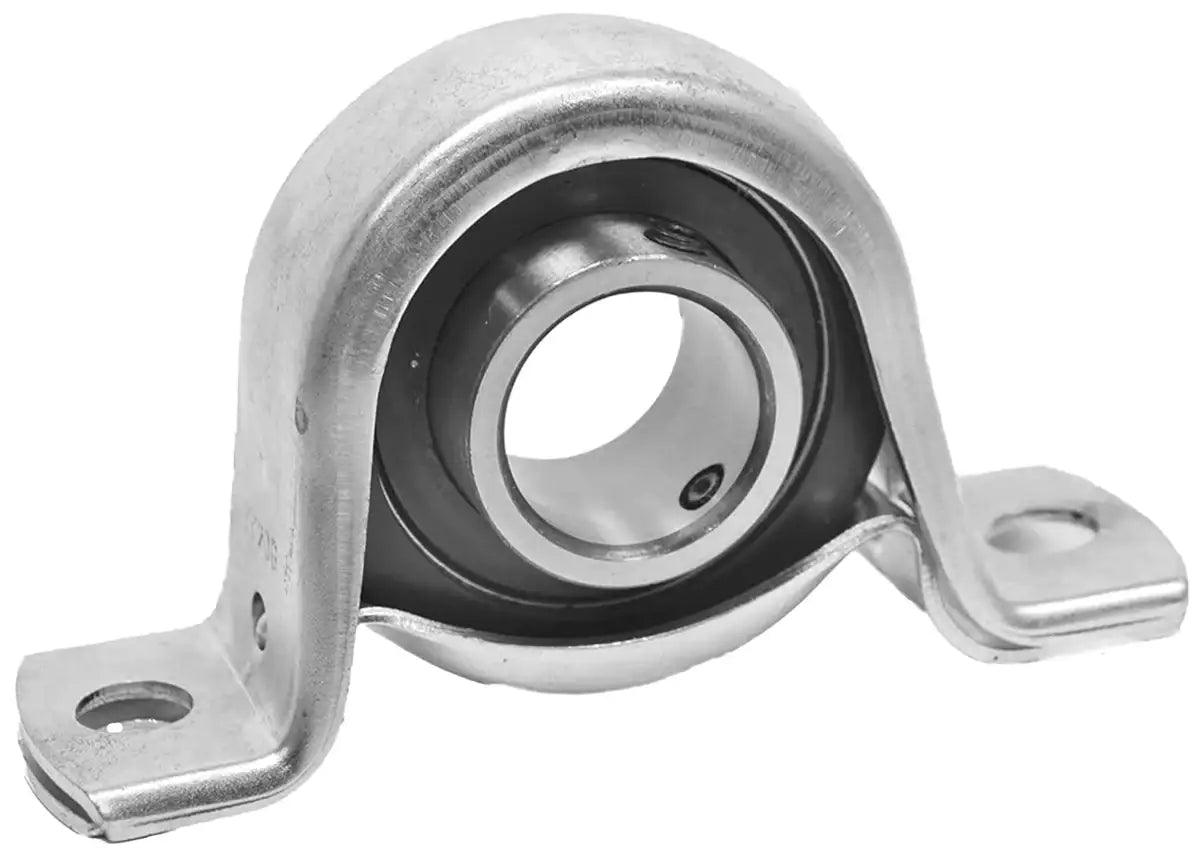

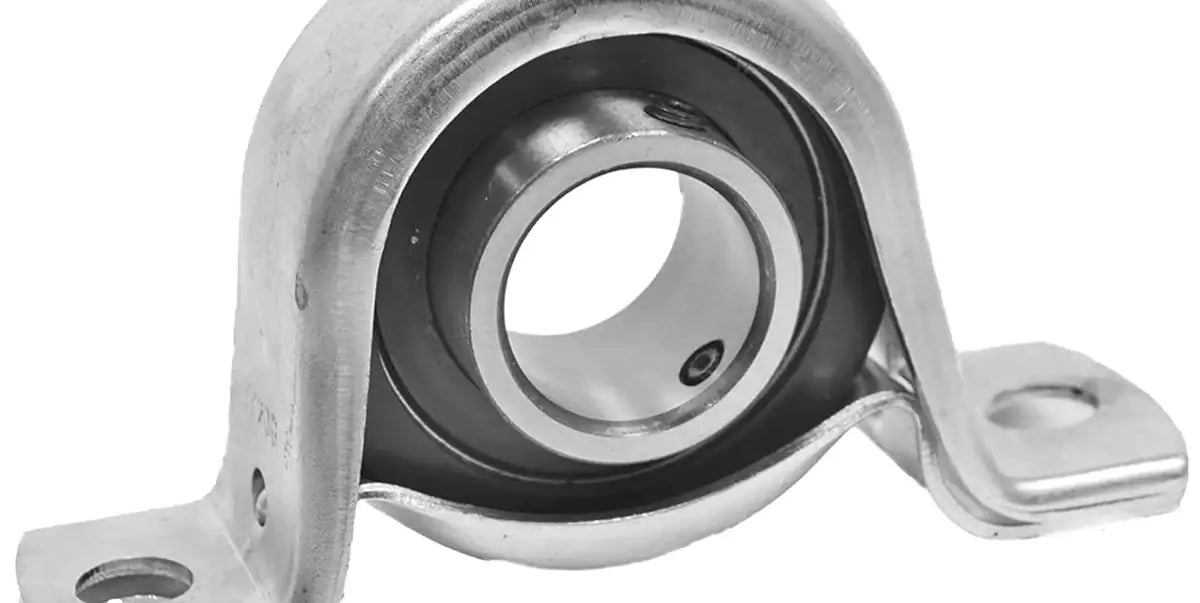

SBPP206 stamped steel bearing is a 2-bolt pillow block bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 30mm insert bearing that utilizes set screws for securing onto a shaft. SBPP206 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the two-bolt pillow block stamped steel housing allows for great mounting when the shaft is positioned parallel to the bearing mounting surface, so the bearing supports the shaft. Utilizing two mounting holes, the SBPP206 30mm bearing has incredible holding power and stability, along with the benefit of a smaller footprint for space-restricted circumstances. Additionally, our SBPP206 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SBPP206 bearing, contact our customer support team, and we will be happy to assist you!

SBPP206 Bearing Dimensions

• Part #: SBPP206
• Shaft Diameter: 30
• Dimension (h): 1-5/16"
• Dimension (a): 4-7/8"
• Dimension (e): 3-3/4"
• Dimension (b): 1-1/4"
• Dimension (S1): 13/32 "
• Dimension (S2): 9/16"
• Dimension (w): 2-5/8"
• Dimension (g): 15/64"
• Dimension (Bi): 1.181"
• Dimension (n): 0.315"
• Bearing Insert #: SB206
• Housing Size: PP206ST
• Weight: 1.03LBS
