Power Transmission > Bearings > Mounted Bearings > Insert Bearings

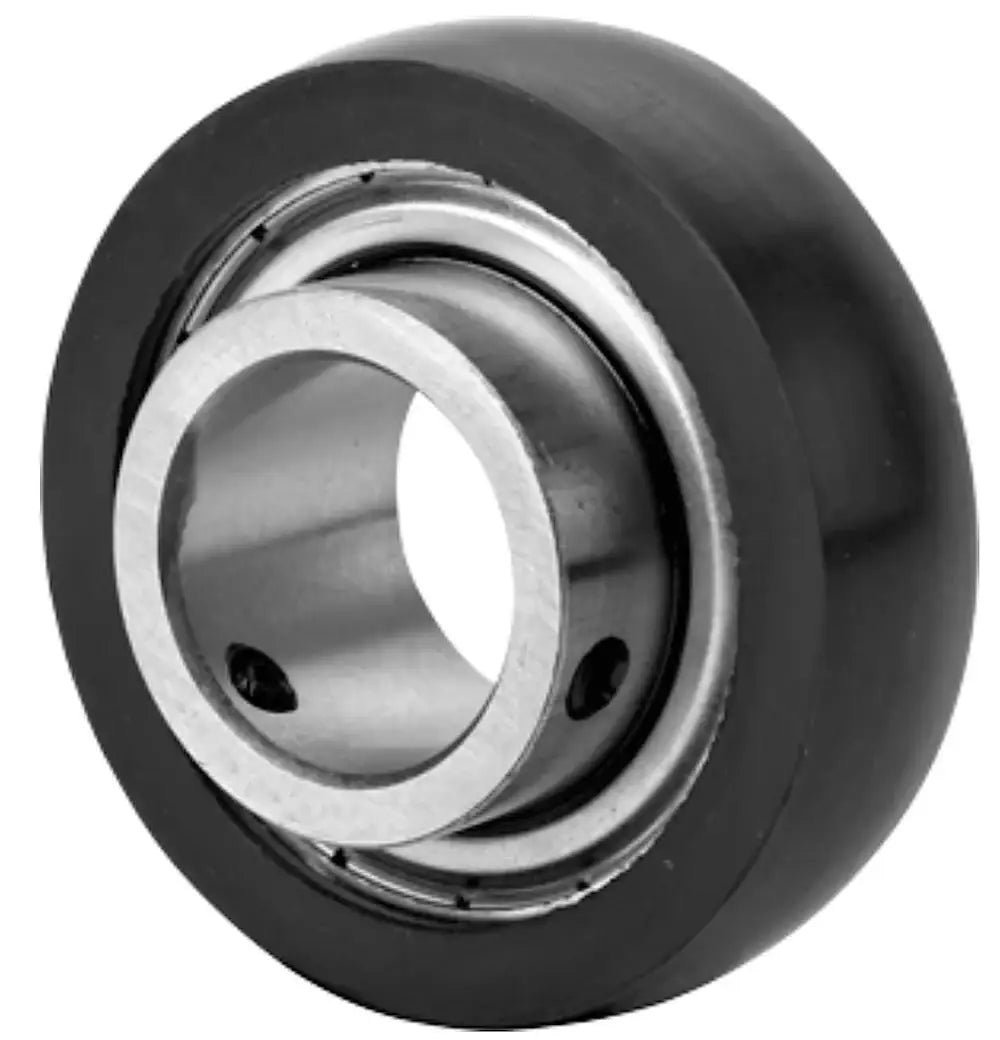

SBR205-14 Bearing | SBR205-14 Vibration Damping Insert Bearing
Note:
Custom Cut to Length Chain Also Available
$29.22
SKU: 5652-SBR205-14-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
SBR205-14 Bearing | SBR205-14 Vibration Damping Insert Bearing Features
SBR205-14 Bearing | SBR205-14 Vibration Damping Insert Bearing Specifications
Our vibration-damping SBR205-14 bearing is made according to C3 precision standards, utilises high-grade materials for superior performance and durability, and has a 7/8" bearing inside diameter. Vibration damping bearings are used in various industrial applications such as; HVAC, conveyor beds, live bottom rollers, high-speed rollers, and more! The SBR205-14 bearing utilises two set screws for securing onto a 7/8" shaft and a static conductive rubber cushion that dampens vibrations. Contact our customer support team for additional information or to get a quote on SBR205-14 bearings, and we will be happy to assist you!
SBR205-14 Bearing Dimensions
- Unit Part #: SBR205-14
- Bearing I.D: 7/8"
- Dimension (D): 2-29/64"
- Dimension (B1): 1.063"
- Dimension (A): 13/16"
- Dimension (M): 1-27/32"
- Dimension (d1): 1-5/16"
- Bearing Part #: SB205-14
- Rubber Part #: R-6
- Housing Radial Load Rating: 300 LBF
- Unit Part #: SBR205-14
- Bearing I.D: 7/8"
- Dimension (D): 2-29/64"
- Dimension (B1): 1.063"
- Dimension (A): 13/16"
- Dimension (M): 1-27/32"
- Dimension (d1): 1-5/16"
- Bearing Part #: SB205-14
- Rubber Part #: R-6
- Housing Radial Load Rating: 300 LBF
