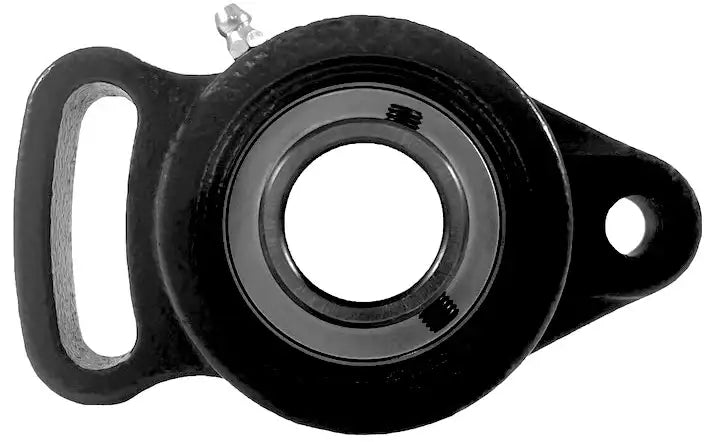

UCFA206-20 Bearing | 1-1/4" Adjustable Flange Bearing

UCFA206-20 bearing is a normal duty two bolt adjustable flange bearing that utilises two set-screws for securing onto a 1-1/4" diameter shaft. The housing is constructed from durable cast steel and encases a performance C3 precision bearing insert creating a flange bearing capable of long term performance and durability. The adjustable design of a UCFA206-20 bearing gives it the ability to be placed in a broader range of applications than a standard two-bolt flange bearing and improves the mounting position ability. Commonly, this bearing style can be found in a range of agricultural and industrial applications. Additionally, our UCFA206-20 bearing is directly interchangeable with other brands! For pricing and availability or more information, contact our customer service team, and we will be happy to assist you!

UCFA206-20 Bearing Dimensions

• Part #: UCFA206-20
• Bearing I.D: 1-1/4"
• Dimension (a): 5-9/16"
• Dimension (e): 4-17/32"
• Dimension (i): 45/64"
• Dimension (g): 9/16"
• Dimension (m): 1-7/32"
• Dimension (S): 33/64"
• Dimension (S1): 2-3/32"
• Dimension (b): 3-5/32"
• Dimension (f): 2-11/16"
• Dimension (Z): 1-37/64"
• Dimension (Bi): 1.500"
• Dimension (n): 0.626"
• (Bolt Size): 3/8"
• Insert Bearing Part #: UC206-20
• Housing Part #: FA206
• Weight: 2.60 LBS
