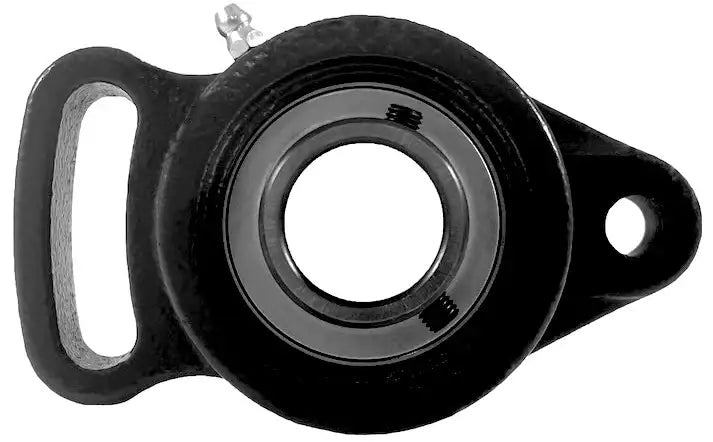

UCFA207 Bearing | 35mm Adjustable Flange Bearing

UCFA207 bearing is a normal duty two bolt adjustable flange bearing that utilises two set-screws for securing onto a 35mm diameter shaft. The housing is constructed from durable cast steel and encases a performance C3 precision bearing insert creating a flange bearing capable of long term performance and durability. The adjustable design of a UCFA207 bearing gives it the ability to be placed in a broader range of applications than a standard two-bolt flange bearing and improves the mounting position ability. Commonly, this bearing style can be found in a range of agricultural and industrial applications. Additionally, our UCFA207 bearing is directly interchangeable with other brands! For pricing and availability or more information, contact our customer service team, and we will be happy to assist you!

UCFA207 Bearing Dimensions

• Part #: UCFA207
• Bearing I.D: 35mm
• Dimension (a): 6-3/32"
• Dimension (e): 5-1/32"
• Dimension (i): 25/32"
• Dimension (g): 5/8"
• Dimension (m): 1-11/32"
• Dimension (S): 19/32"
• Dimension (S1): 2-3/8"
• Dimension (b): 3-17/32"
• Dimension (f): 2-15/16"
• Dimension (Z): 1-25/32"
• Dimension (Bi): 1.689"
• Dimension (n): 0.689"
• (Bolt Size): 7/16"
• Insert Bearing Part #: UC207
• Housing Part #: FA207
• Weight: 3.30 LBS
