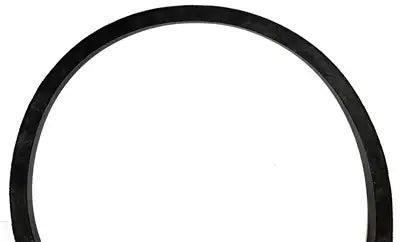

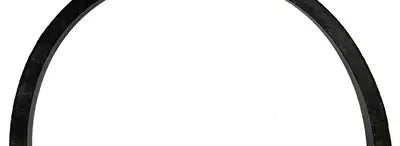

5V2240 V-Belt | 5V-Section 224" 5V2240 Belt

Our 5V2240 v-belt is a high-power premium 224" long belt made to ARPM IP-22 Standards. 5V2240 belts are classified as deep-wedge belts capable of transferring higher loads with a more compact dimensional footprint when compared to other types of belts. 5V series v-belts have a top width of 0.63" and a height of 0.53" with a 38-degree wedge angle and excellent oil resistance. This belt is manufactured with high-strength polyester chords, a high-quality compound material, and a durable polyester/ cotton blend cover; this belt sets the bar for v-belts. Typical applications for 5V2240 v-belts include; plant machinery, agricultural equipment, machine shop equipment, HVAC equipment, fans, and more! Our high-quality 5V2240 belt is engineered to perform and operate for an extended time. Since it is manufactured per ARPM standards and standard dimensions, the belt directly interchanges with other brands. Contact our customer support team for additional information or to get a quote on 5V2240 v-belts, and we will be happy to assist you!

5V2240 V-Belt Dimensions

• Belt Size: 5V2240
• Outside Length: 224"
• Weight: 2.70 LBS
• Operating Temperature Range: -22F to + 176F
• Belt Compound: Natural Rubber/ SBR
• Cord Material: Polyester
• Cover Material: Cotton/ Polyester Blend
• Engineering Standard: ARPM IP-22
