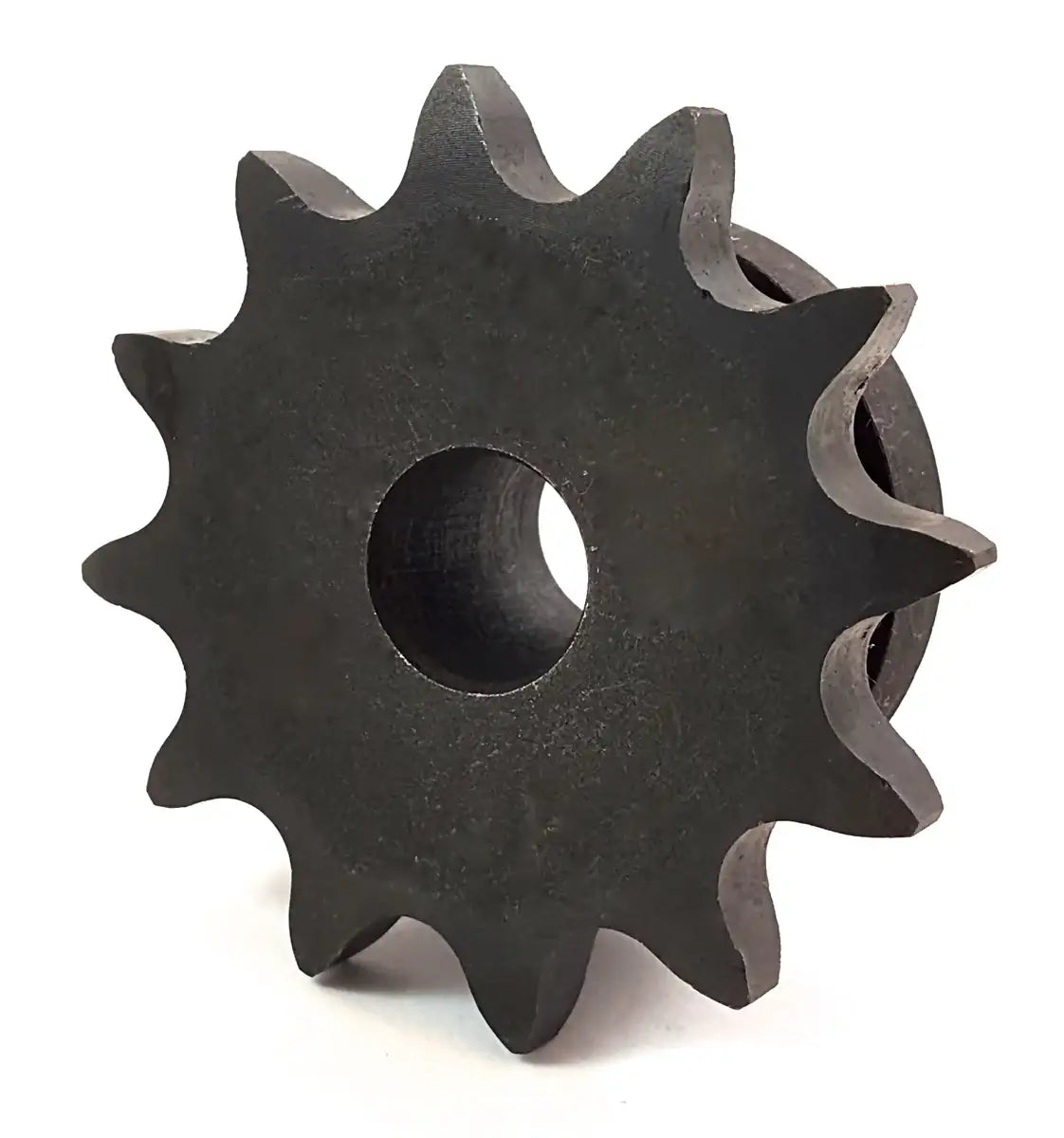

60B16 Sprocket With Stock Bore
Note:
Custom Cut to Length Chain Also Available
$30.99
SKU: 60B16-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
60B16 Sprocket With Stock Bore Features
60B16 Sprocket With Stock Bore Specifications
This 60B16 sprocket is a durable, high quality, and precision sprocket with 16 hardened teeth. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this 60B16 sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #60 roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also fully black oxide coated which increases resistance to the environment and will prevent early rust build up. 60B16H sprockets with a stock bore comes with the standard 3/4" ID hole with no keyway or set screws and can be easily machine bored to custom sizes. We also offer sprockets with finished bore configurations right off the shelf from stock, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. Fore more information or to get a formal quote please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
- Sprocket Size: 60B16
- Tooth Count: 16
- Hub Type: B
- Outside Diameter: 4.220"
- Stock Bore Size: 3/4"
- Maximum Bore Size: 2.000"
- Hub Diameter: 3-1/16"
- Length Thru Bore: 1-1/4"
- Weight: 2.81 LBS
- Common Interchanges: 60B16H, H60B16, 60B16-SB
Email:
- Sprocket Size: 60B16
- Tooth Count: 16
- Hub Type: B
- Outside Diameter: 4.220"
- Stock Bore Size: 3/4"
- Maximum Bore Size: 2.000"
- Hub Diameter: 3-1/16"
- Length Thru Bore: 1-1/4"
- Weight: 2.81 LBS
- Common Interchanges: 60B16H, H60B16, 60B16-SB
