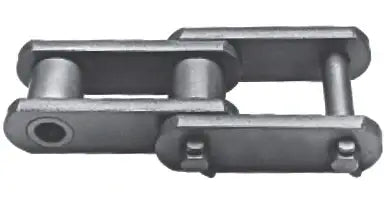

6102BM Chain

Specialty Chain > Engineering Class Chains > Steel Bushed Chains > 6102BM Steel Bushed Chain

6102BM Chain

Note: Custom Cut to Length Chain Also Available
SKU: 6102BM-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714727969135" , "metafield_value":""}]
6102BM Chain Features
6102BM Chain Specifications
This 6102BM chain is a high quality, high strength steel bushed chain that is extremely durable. 6102BM Chain is ideal for operating in applications that are extremely gritty and or abrasive. The steel bushed chains we offer are engineered and manufactured using different types of steel to get the most use and strength out of the chain as possible. We also offer a complete selection of high quality 6102BM chain sprockets and attachments. For more information or to get a quote please contact us and we will be happy to assist you.

Dimensions:
6102BM Chain
  • Chain Size: 102BM
  • Pitch: 4.000"
  • Overall Width (A): 4.31"
  • Dimension (B): 2.28"
  • Dimension (C): 2.03"
  • Inside Width (E): 2.13"
  • Bushing Diameter (D): 1.00"
  • Bushing Style: Double Flat
  • Bushing Material: Carbon Case-Hardened
  • Pin Diameter (G): 0.63"
  • Pin Material: Alloy Case-Hardened
  • Pin Style: Double Flat
  • Sidebar Height (H): 1.50"
  • Sidebar Thickness (T): 0.38"
  • Sidebar Material: Carbon Heat-Treated
  • Average Ultimate Strength: 40,000 LBS
  • Maximum Working Load: 6,300 LBS
  • Weight Per Foot: 6.9 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com
"Click Here To Checkout Our Line Card!"
  • Chain Size: 102BM
  • Pitch: 4.000"
  • Overall Width (A): 4.31"
  • Dimension (B): 2.28"
  • Dimension (C): 2.03"
  • Inside Width (E): 2.13"
  • Bushing Diameter (D): 1.00"
  • Bushing Style: Double Flat
  • Bushing Material: Carbon Case-Hardened
  • Pin Diameter (G): 0.63"
  • Pin Material: Alloy Case-Hardened
  • Pin Style: Double Flat
  • Sidebar Height (H): 1.50"
  • Sidebar Thickness (T): 0.38"
  • Sidebar Material: Carbon Heat-Treated
  • Average Ultimate Strength: 40,000 LBS
  • Maximum Working Load: 6,300 LBS
  • Weight Per Foot: 6.9 LBS
