Power Transmission > Miscellaneous Items > Splined Hubs With Flange

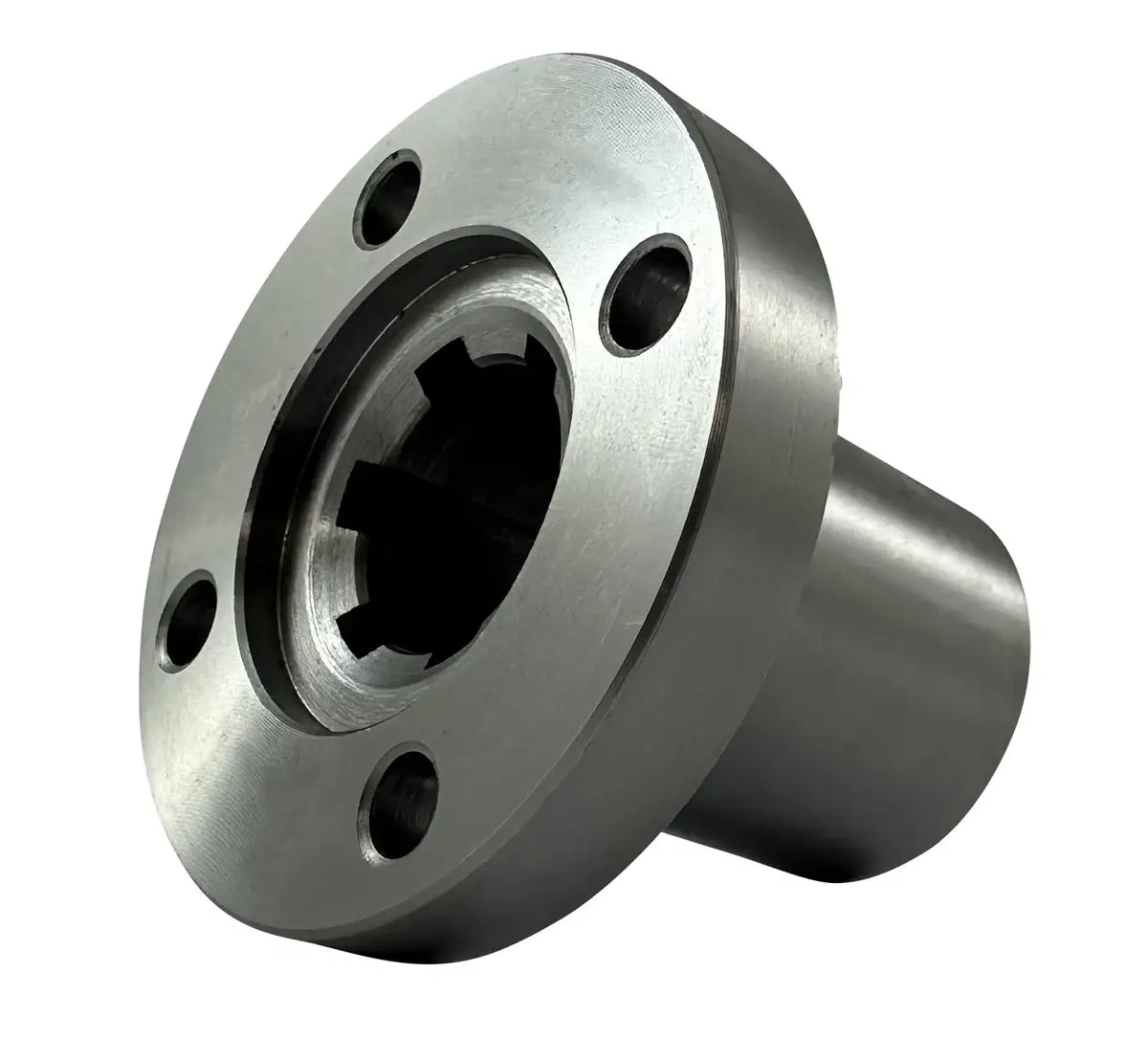

Splined Hub With Flange for 16mm Shaft With 6 Splines - C45 Material
Note:
Custom Cut to Length Chain Also Available
SKU: 64850400-FLANGED-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Splined Hub With Flange for 16mm Shaft With 6 Splines - C45 Material Features
Splined Hub With Flange for 16mm Shaft With 6 Splines - C45 Material Specifications
This premium splined hub with a flange is designed for a 16mm shaft with 6 splines and is crafted from high-strength C45 steel. It meets ISO DIN 14 standards, ensuring precise interchangeability. Splined hubs with flanges are essential for accurately transmitting torque across various applications. Specifically made for a 16mm diameter splined shaft with 6 splines, this hub is straightforward to install and ensures long-lasting, dependable performance. Additionally, we offer splined clamp collars with four pre-drilled holes to complement this hub. For more details or to request a quote for our top-quality splined hub with flange for a 16mm shaft with 6 splines, please reach out to our customer service team, who will be happy to assist you!
16mm With 6 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 16mm
- Profile Description: KN13x16
- Material: C45
- Part #: 64850400
- Dimension (A): 50mm
- Dimension (B): 36mm
- Dimension (B1): 4.5mm
- Dimension (C): 22mm
- Dimension (F): 25mm
- Dimension (d): 13mm
- Dimension (E): 8mm
- Dimension (h): 3mm
- Dimension (L): 40mm
- Weight: 0.18 KG
- Made for Shaft Diameter: 16mm
- Profile Description: KN13x16
- Material: C45
- Part #: 64850400
- Dimension (A): 50mm
- Dimension (B): 36mm
- Dimension (B1): 4.5mm
- Dimension (C): 22mm
- Dimension (F): 25mm
- Dimension (d): 13mm
- Dimension (E): 8mm
- Dimension (h): 3mm
- Dimension (L): 40mm
- Weight: 0.18 KG
