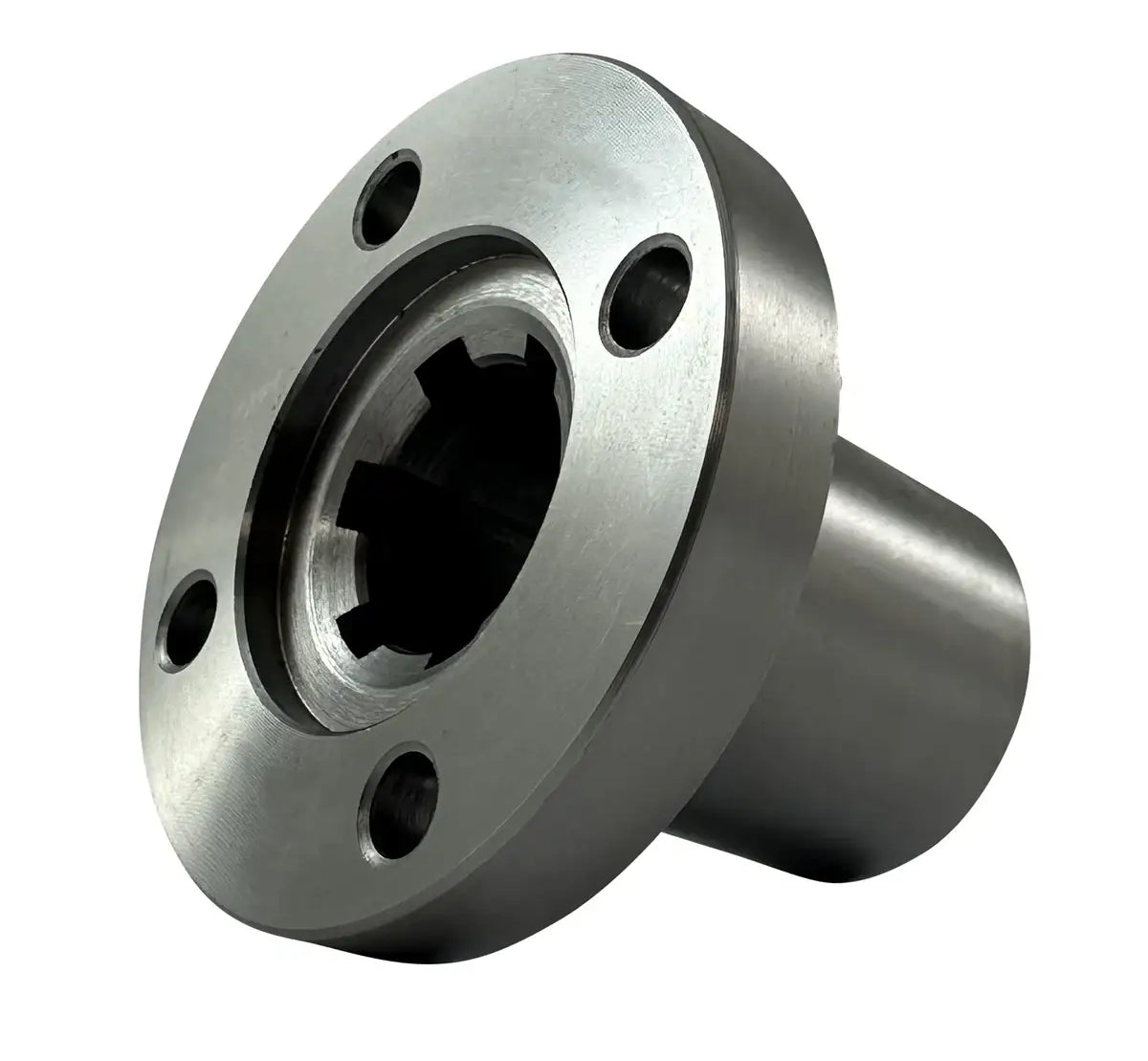

Splined Hub With Flange for 34mm Shaft With 6 Splines - C45 Material
Note:
Custom Cut to Length Chain Also Available
SKU: 64850900-FLANGED-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Splined Hub With Flange for 34mm Shaft With 6 Splines - C45 Material Features
Splined Hub With Flange for 34mm Shaft With 6 Splines - C45 Material Specifications
This high-quality splined hub with a flange is designed for a 34mm shaft with 6 splines, crafted from robust C45 steel. It conforms to ISO DIN 14 standards, ensuring straightforward interchangeability. Flanged splined hubs are vital for the precise transmission of torque across various applications. Made for a 34mm diameter shaft with 6 splines, this hub is easy to install and promises dependable, long-lasting use. We also offer splined clamp collars featuring four pre-drilled holes to pair with this hub. For more information or to request a quote on our superior splined hub with flange for a 34mm shaft with 6 splines, please contact our customer service team, who are eager to assist you!
34mm With 6 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 34mm
- Profile Description: KN28x34
- Material: C45
- Part #: 64850900
- Dimension (A): 78mm
- Dimension (B): 60mm
- Dimension (B1): 9.0mm
- Dimension (C): 46mm
- Dimension (F): 45mm
- Dimension (d): 28mm
- Dimension (E): 12mm
- Dimension (h): 3.5mm
- Dimension (L): 60mm
- Weight: 0.64 KG
- Made for Shaft Diameter: 34mm
- Profile Description: KN28x34
- Material: C45
- Part #: 64850900
- Dimension (A): 78mm
- Dimension (B): 60mm
- Dimension (B1): 9.0mm
- Dimension (C): 46mm
- Dimension (F): 45mm
- Dimension (d): 28mm
- Dimension (E): 12mm
- Dimension (h): 3.5mm
- Dimension (L): 60mm
- Weight: 0.64 KG
