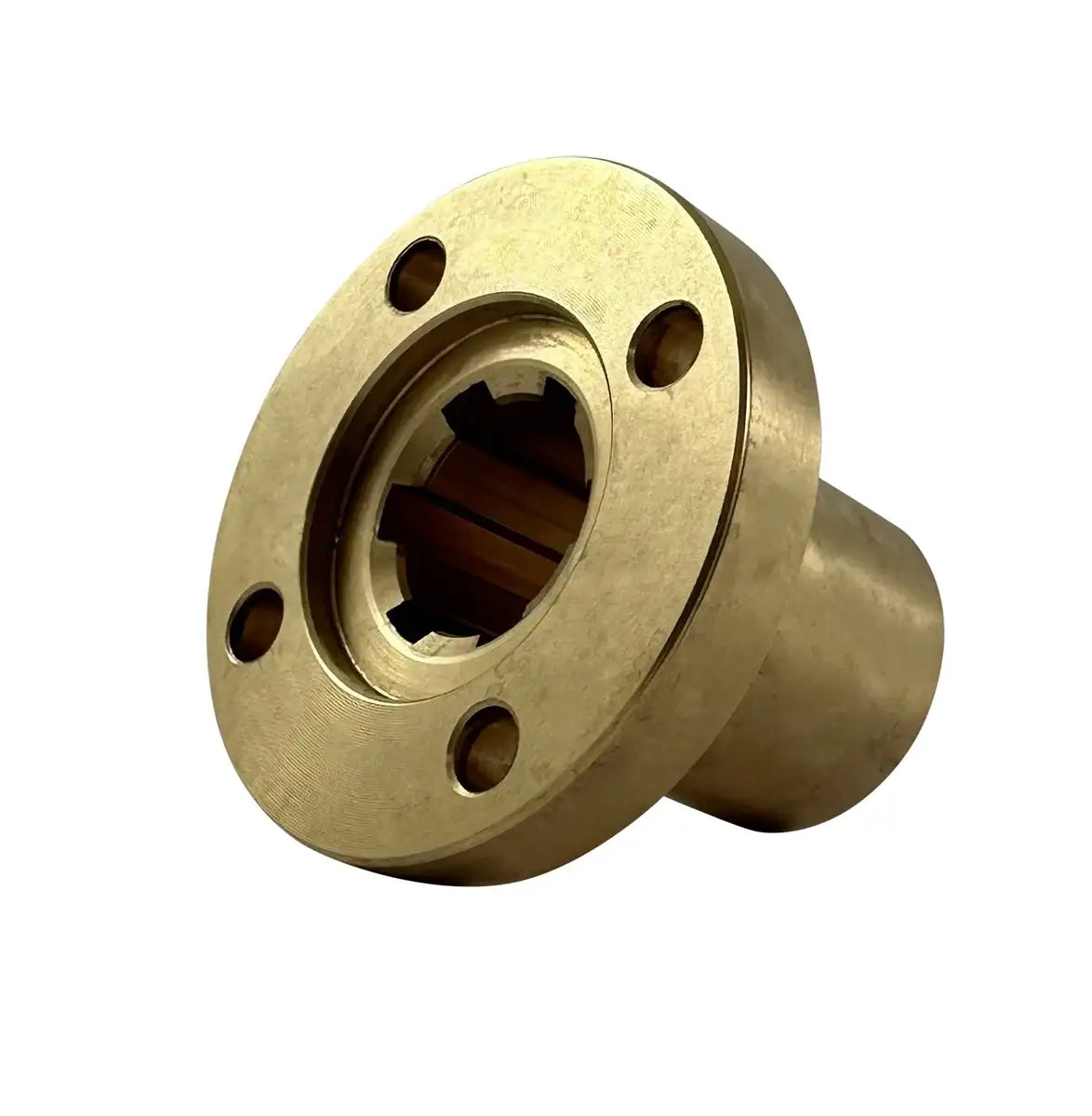

Splined Hub With Flange for 25mm Shaft With 6 Splines - Brass Material
Note:
Custom Cut to Length Chain Also Available
SKU: 64855600-FLANGED-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Splined Hub With Flange for 25mm Shaft With 6 Splines - Brass Material Features
Splined Hub With Flange for 25mm Shaft With 6 Splines - Brass Material Specifications
Elevate your setup with our premium splined hub with a flange, precisely crafted from high-quality brass for a 25mm shaft with 6 splines. Adhering to ISO DIN 14 standards, this hub ensures seamless interchangeability and accurate torque transmission across a wide range of applications. Specifically designed for a 25mm diameter splined shaft with 6 splines, it offers easy installation and dependable, long-lasting performance. We also supply splined clamp collars with four pre-drilled holes to pair with this hub. For additional information or to request a quote on our exceptional splined hub with flange for a 25mm shaft with 6 splines, please contact our dedicated customer service team, who are ready to assist you!
25mm With 6 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 25mm
- Profile Description: KN21x25
- Material: Brass
- Part #: 64855600
- Dimension (A): 62mm
- Dimension (B): 48mm
- Dimension (B1): 6.6mm
- Dimension (C): 35mm
- Dimension (F): 34mm
- Dimension (d): 21mm
- Dimension (E): 10mm
- Dimension (h): 3.5mm
- Dimension (L): 50mm
- Weight: 0.38 KG
- Made for Shaft Diameter: 25mm
- Profile Description: KN21x25
- Material: Brass
- Part #: 64855600
- Dimension (A): 62mm
- Dimension (B): 48mm
- Dimension (B1): 6.6mm
- Dimension (C): 35mm
- Dimension (F): 34mm
- Dimension (d): 21mm
- Dimension (E): 10mm
- Dimension (h): 3.5mm
- Dimension (L): 50mm
- Weight: 0.38 KG
