Clamp Collar For 22mm Splined Shaft With 6 Splines - C45 Steel
Note:
Custom Cut to Length Chain Also Available
SKU: 64860100-CLAMP-COLLAR
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Clamp Collar For 22mm Splined Shaft With 6 Splines - C45 Steel Features
Clamp Collar For 22mm Splined Shaft With 6 Splines - C45 Steel Specifications

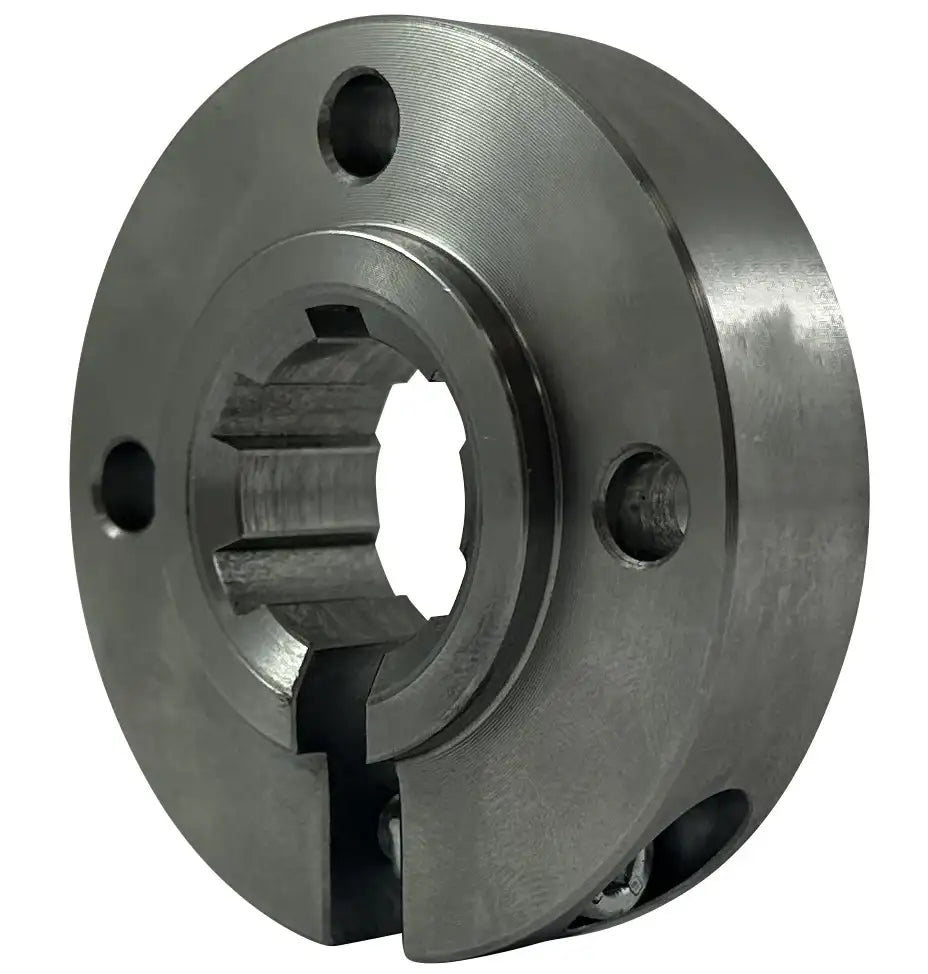

Our high-grade clamp collar for a 22mm splined shaft with 6 splines is precision-machined from C45 steel, providing exceptional strength and superior holding power. It features four pre-drilled holes, making it a perfect fit with a splined hub with a flange. A splined clamp collar is a mechanical device used to secure or position components on a splined shaft. Unlike regular clamp collars, it has internal splines that match the shaft's splines, ensuring a secure and precise fit. This design allows the collar to effectively transmit torque and resist rotational forces without slipping. For more details or to request a quote on our premium clamp collar for a 22mm splined shaft with 6 splines, please contact our customer service team, who will be happy to assist you!
22mm Splined Clamp Collar Dimensions
- Part Number: 64860100
- Material: C45 Steel
- Profile Description: KN 18 x 22
- Dimension (A): 54mm
- Dimension (B): 40mm
- Dimension (B1): 5.5mm
- Dimension (C): 30mm
- Dimension (d): 18mm
- Dimension (L): 14mm
- Dimension (K): 3mm
- Dimension (T): 5.7mm
- Dimension (S): M5
- Weight: 0.20KG
- Part Number: 64860100
- Material: C45 Steel
- Profile Description: KN 18 x 22
- Dimension (A): 54mm
- Dimension (B): 40mm
- Dimension (B1): 5.5mm
- Dimension (C): 30mm
- Dimension (d): 18mm
- Dimension (L): 14mm
- Dimension (K): 3mm
- Dimension (T): 5.7mm
- Dimension (S): M5
- Weight: 0.20KG
