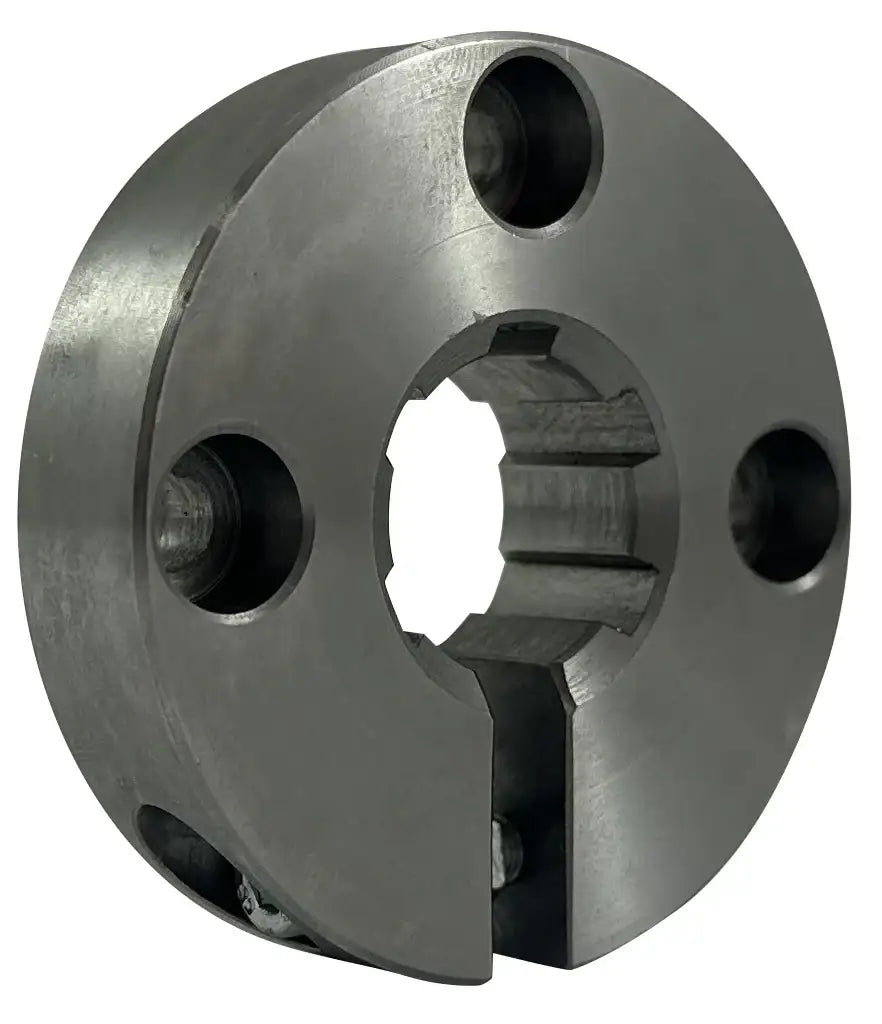

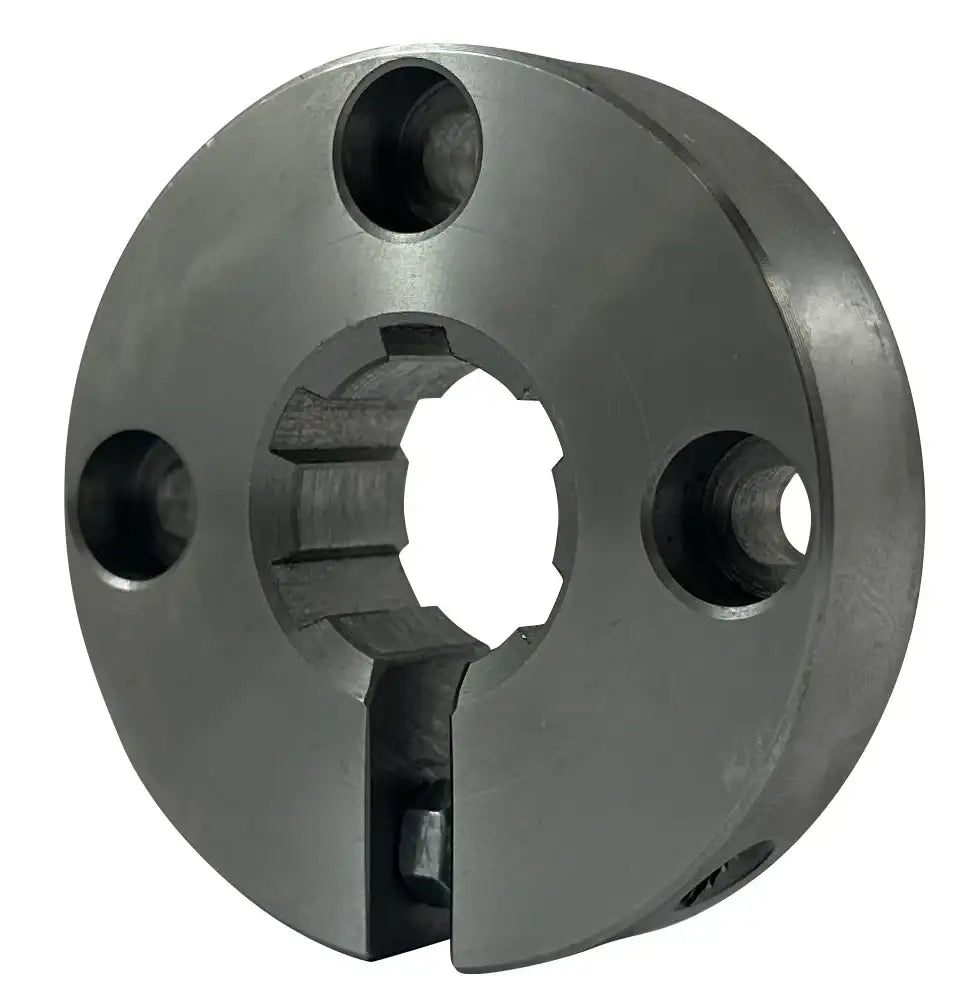

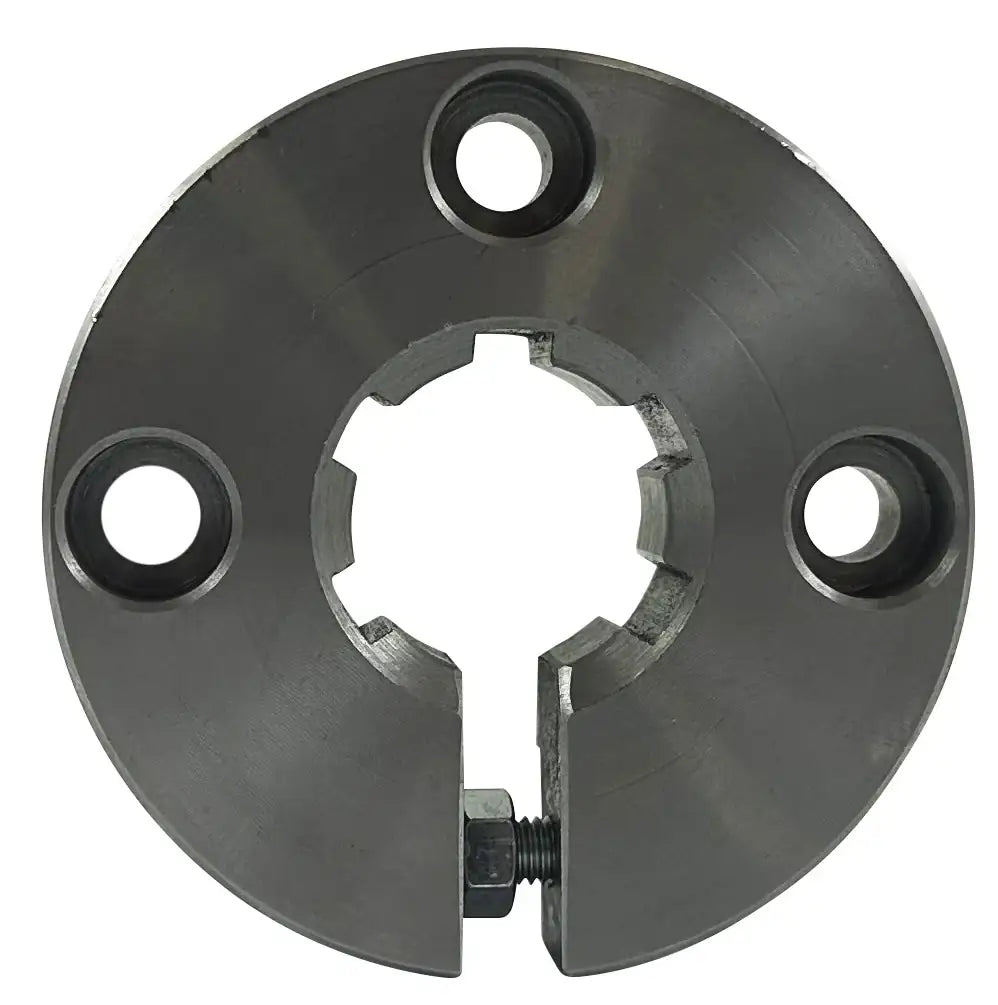

Clamp Collar For 14mm Splined Shaft With 6 Splines - C45 Steel
Note:
Custom Cut to Length Chain Also Available
SKU: 64860200-CLAMP-COLLAR
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Clamp Collar For 14mm Splined Shaft With 6 Splines - C45 Steel Features
Our high-quality clamp collar for 14mm splined shaft with 6 splines is precision machined from high-grade C45 steel. Being made from C45 steel means the collar is super high-strength and provides superior holding capacity. Additionally, this 14mm splined shaft clamp collar has four pre-drilled holes to mate perfectly with a splined hub with a flange. A splined clamp collar is a type of mechanical device used to secure or position components on a splined shaft. Unlike regular clamp collars, a splined clamp collar has internal splines that match the splines on the shaft, allowing for a secure and precise fit. This design ensures that the collar can transmit torque and resist rotational forces without slipping. For additional information or to get a quote on our premium clamp collar for a 14mm splined shaft with 6 splines contact our customer service team, and we will gladly assist you!
14mm Splined Clamp Collar Dimensions
- Part Number: 64860200
- Material: C45 Steel
- Profile Description: KN 11 X 14
- Dimension (A): 42mm
- Dimension (B): 28mm
- Dimension (B1): 4.5mm
- Dimension (C): 20mm
- Dimension (d): 11mm
- Dimension (L): 12mm
- Dimension (K): 2mm
- Dimension (T): 4.6mm
- Dimension (S): M4
- Weight: 0.10 KG
