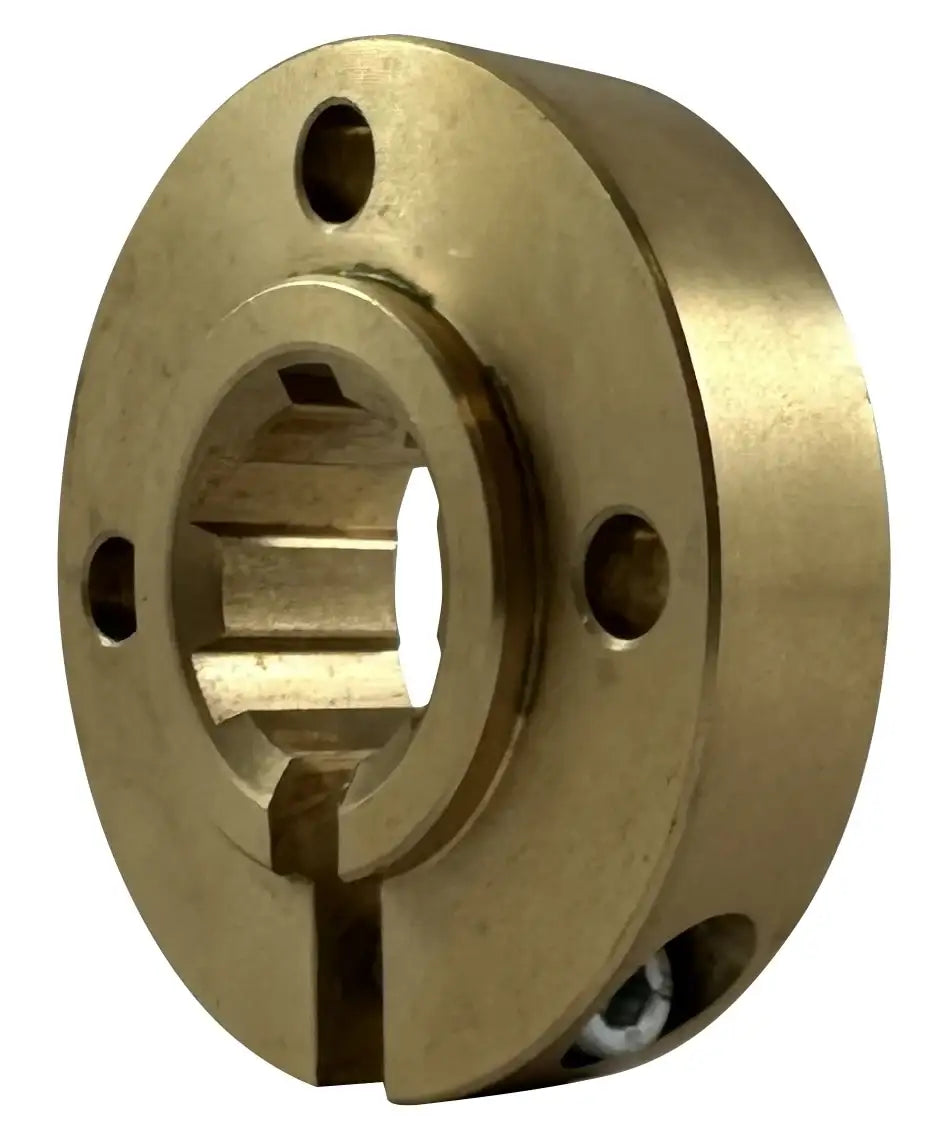

Clamp Collar For 22mm Splined Shaft With 6 Splines - Brass
Note:
Custom Cut to Length Chain Also Available
SKU: 64865100-CLAMP-COLLAR
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Clamp Collar For 22mm Splined Shaft With 6 Splines - Brass Features
Clamp Collar For 22mm Splined Shaft With 6 Splines - Brass Specifications
Our superior clamp collar for a 22mm splined shaft with 6 splines is precisely machined from high-quality red brass. It features four pre-drilled holes that align perfectly with a splined hub with a flange. This mechanical device secures or positions components on a splined shaft, with internal splines that match the shaft's splines for a secure and accurate fit. This design ensures the collar can transmit torque and resist rotational forces without slipping. For more information or to obtain a quote on our exceptional brass clamp collar for a 22mm splined shaft with 6 splines, please get in touch with our customer service team, who will be more than happy to assist you!
22mm Splined Clamp Collar Dimensions
- Part Number: 64865100
- Material: Red Brass
- Profile Description: KN 18 x 22
- Dimension (A): 54mm
- Dimension (B): 40mm
- Dimension (B1): 5.5mm
- Dimension (C): 30mm
- Dimension (d): 18mm
- Dimension (L): 14mm
- Dimension (K): 3mm
- Dimension (T): 5.7mm
- Dimension (S): M5
- Weight: 0.23KG
- Part Number: 64865100
- Material: Red Brass
- Profile Description: KN 18 x 22
- Dimension (A): 54mm
- Dimension (B): 40mm
- Dimension (B1): 5.5mm
- Dimension (C): 30mm
- Dimension (d): 18mm
- Dimension (L): 14mm
- Dimension (K): 3mm
- Dimension (T): 5.7mm
- Dimension (S): M5
- Weight: 0.23KG
