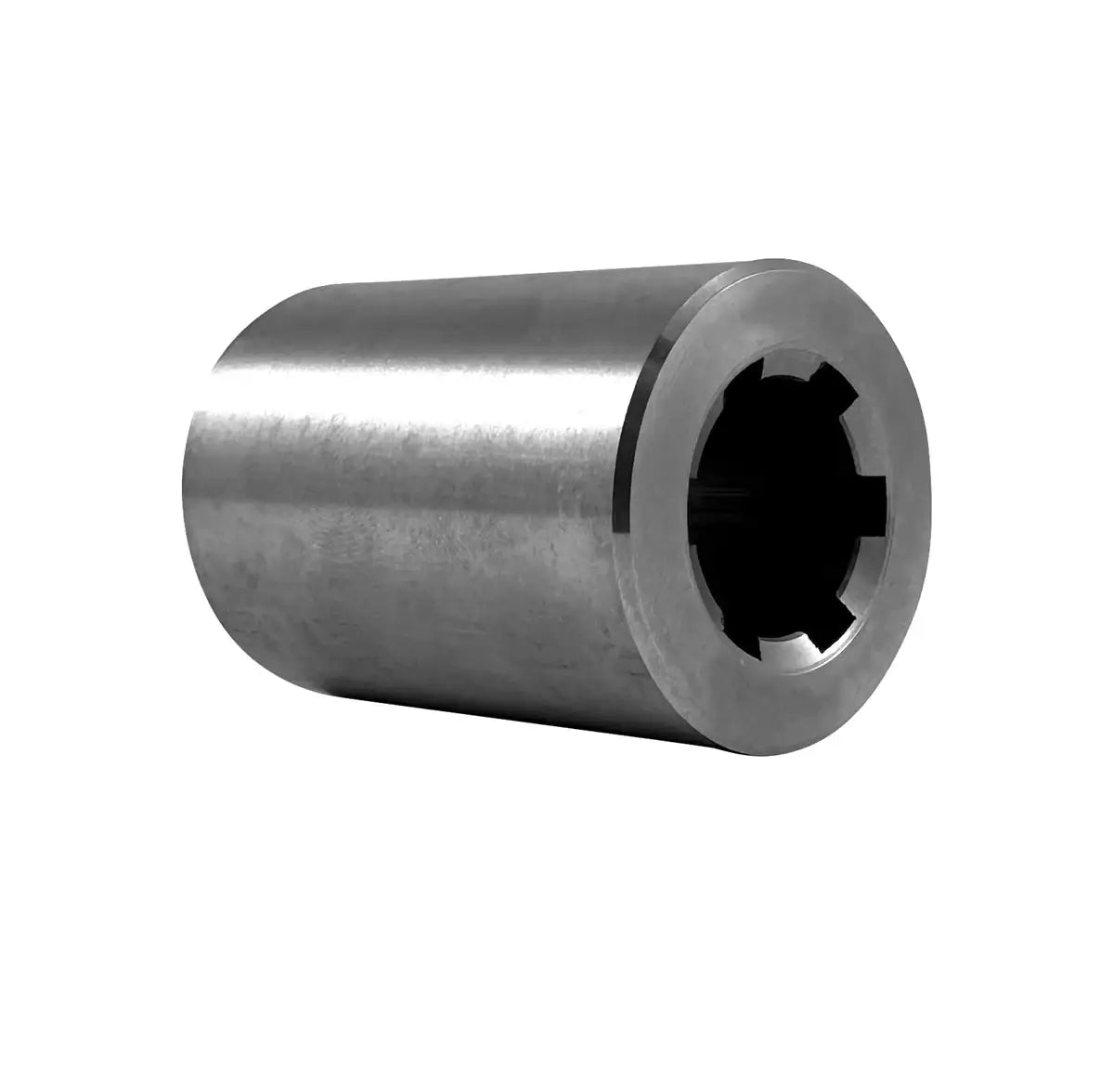

6 Spline Hub for 25mm Splined Shaft - Stainless Steel
Note:
Custom Cut to Length Chain Also Available
SKU: 64899306-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
6 Spline Hub for 25mm Splined Shaft - Stainless Steel Features
6 Spline Hub for 25mm Splined Shaft - Stainless Steel Specifications
Our top-grade 25mm spline hub, with 6 splines, is precisely machined from 303-grade stainless steel, making it ideal for washdown, food-grade, and abrasive environments. Designed to meet DIN ISO 14 standards, this 6-spline hub for 25mm splined shafts ensures excellent fitment and compatibility with other brands. Spline hubs are used on splined shafts for various purposes, such as coupling two shafts together or providing a mounting surface. For more information or to request a quote on our premium stainless steel 25mm splined shaft, please contact our customer service team, and we will be happy to assist you!
25mm Splined Shaft Hub Dimensions
- Part Number: 64899306
- Material: 303 Stainless
- Profile Description: 21 X 25
- Number of Keyways: 6
- Dimension (D): 25mm
- Dimension (d): 21mm
- Dimension (b): 5mm
- Dimension (A): 40mm
- Length: 55mm
- Weight: 0.36KG
- Part Number: 64899306
- Material: 303 Stainless
- Profile Description: 21 X 25
- Number of Keyways: 6
- Dimension (D): 25mm
- Dimension (d): 21mm
- Dimension (b): 5mm
- Dimension (A): 40mm
- Length: 55mm
- Weight: 0.36KG
