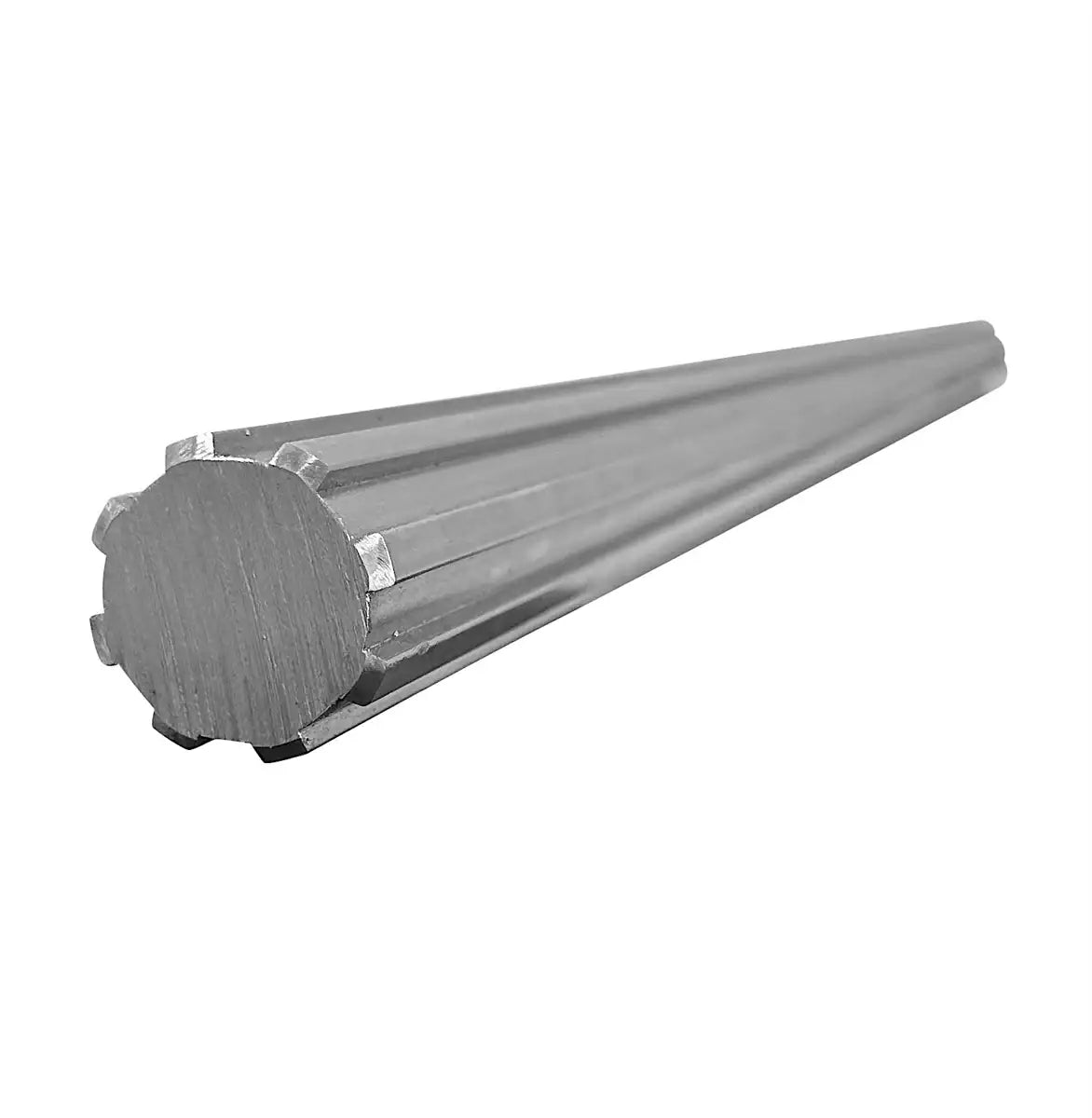

42mm Spline Shaft 8-Splines 304SS Material - 1500mm

Our premium stainless 42mm spline shaft, with 8 splines and measuring 1500mm in length, is expertly machined from 304-grade stainless steel to provide exceptional resistance to corrosion and abrasion. Suitable for food-grade, high-temperature, and low-temperature environments, this shaft complies with DIN ISO 14 standards, ensuring compatibility and interchangeability with other brands and components such as hubs, collars, and couplings. While available in a 1500mm length, we also offer other standard or custom lengths of stainless 42mm splined shafting. Engineered for precise and efficient torque transmission, it is ideal for industrial machinery, food processing equipment, and mechanical drives. Additionally, stainless 42mm spline shafts can be used for mechanically positioning components. For more information or to request a quote on our premium stainless 42mm spline shaft with 8 splines in a 1500mm length, please contact our customer service team, and we will be happy to assist you!

42mm Spline Shaft With 8-Splines Dimensions

• Shaft Diameter (D): 42mm
• Amount of Splines: 8
• Dimension (d): 36mm
• Dimension (b): 7mm
• Length: 1500mm
• Material: 304SS
• Weight: 9.30 Kg/ Meter
• Length Tolerance: 0.8mm/ Meter
• Maximum Torsion: 0.5mm/ Meter
