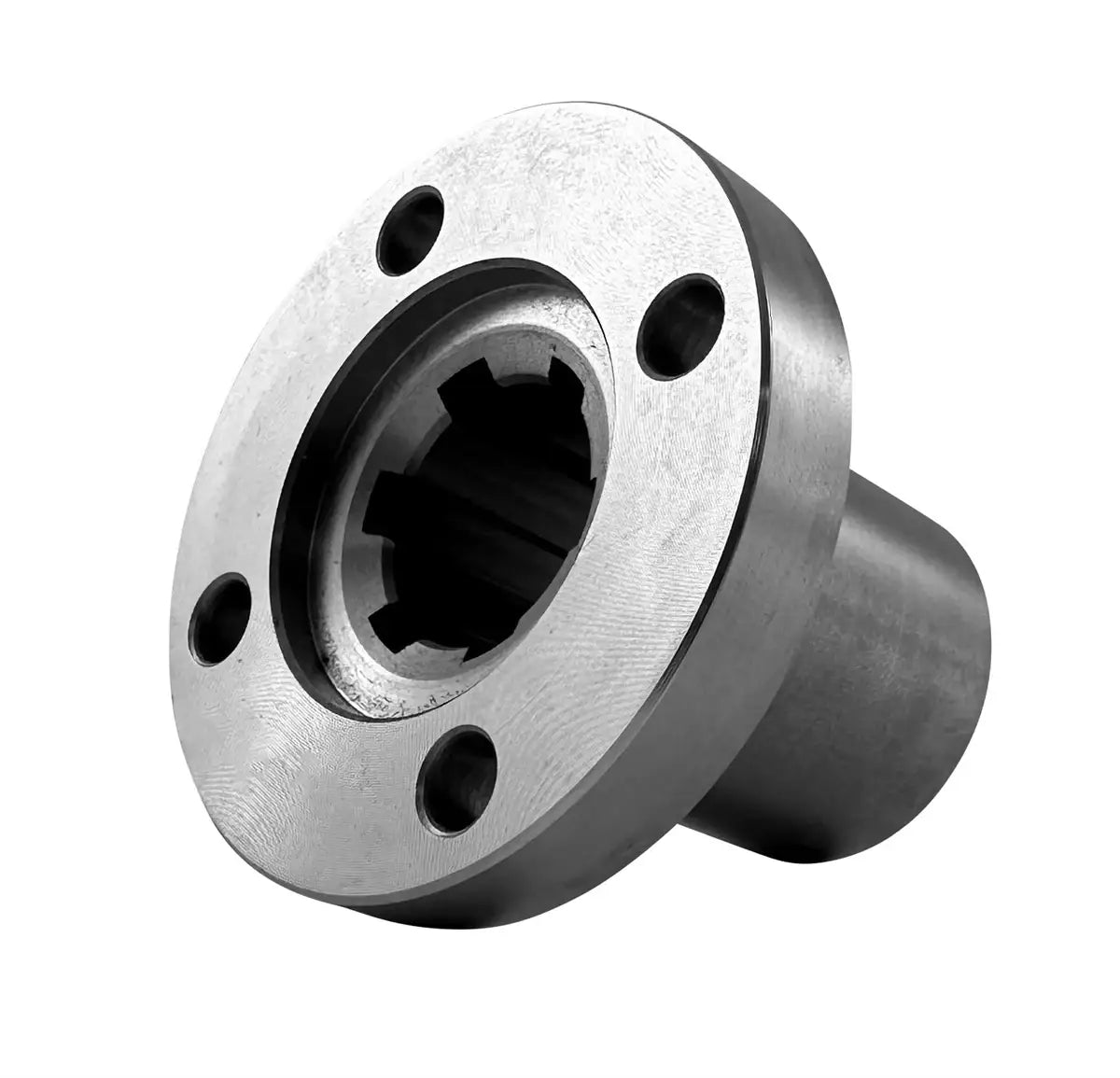

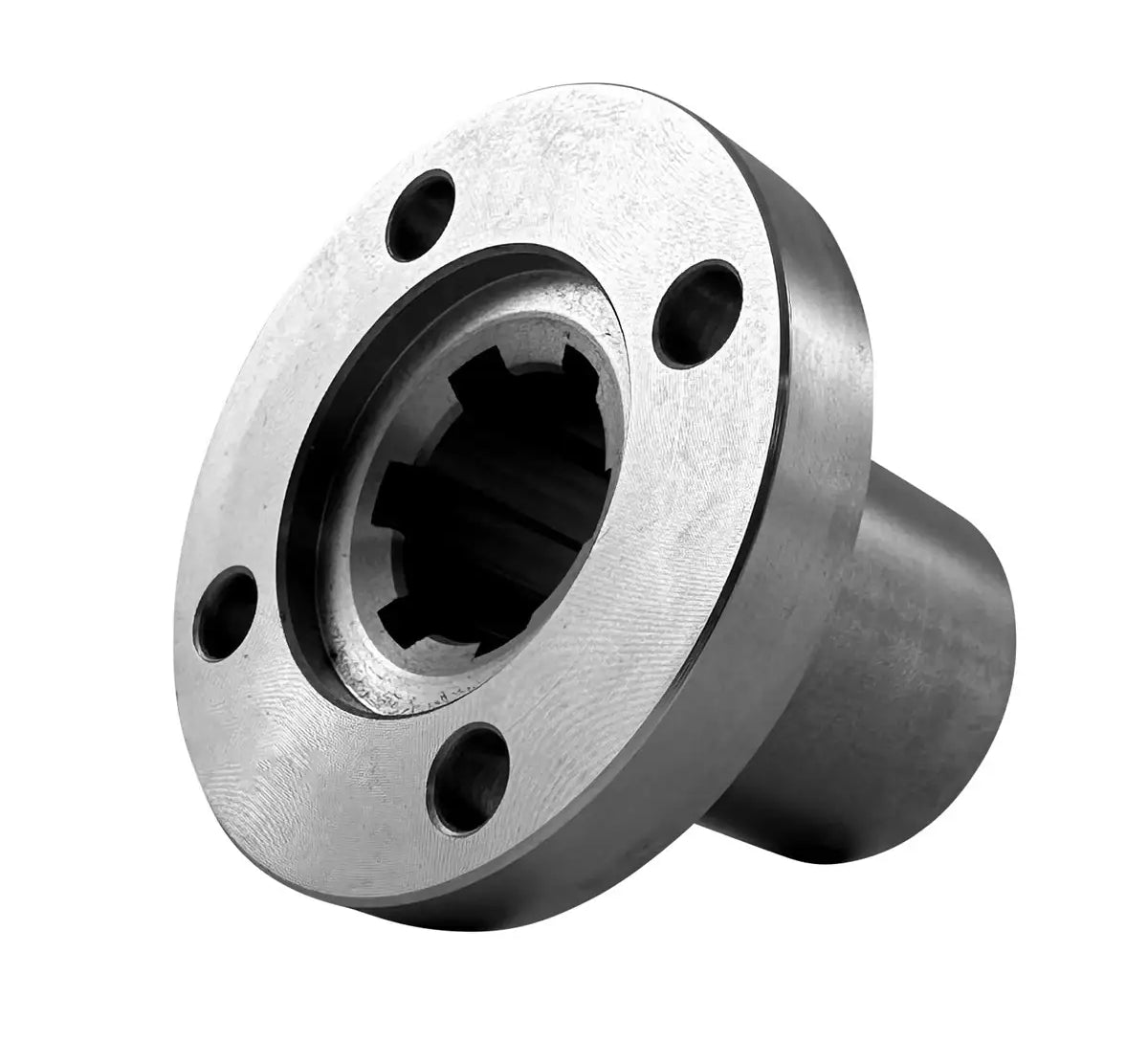

Splined Hub With Flange for 22mm Shaft With 6 Splines - Stainless Material
Note:
Custom Cut to Length Chain Also Available
SKU: 64899501-FLANGED-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Splined Hub With Flange for 22mm Shaft With 6 Splines - Stainless Material Features
Splined Hub With Flange for 22mm Shaft With 6 Splines - Stainless Material Specifications
This top-quality splined hub with a flange is crafted for a 22mm shaft with 6 splines, using precision-engineered stainless steel that complies with ISO DIN 14 standards for seamless interchangeability. Made from 303-grade stainless steel, this hub is perfect for use in abrasive, corrosive, and food-grade environments. Flanged splined hubs are vital for accurate torque transmission across diverse applications. Designed specifically for a 22mm diameter splined shaft with 6 splines, this hub is easy to install and ensures reliable, long-term performance. We also offer splined clamp collars with four pre-drilled holes to complement this hub. For more information or to get a quote on our premium splined hub with flange for a 22mm shaft with 6 splines, please reach out to our customer service team, who will be happy to assist you!
22mm With 6 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 22mm
- Profile Description: KN18x22
- Material: Stainless
- Part #: 64899501
- Dimension (A): 54mm
- Dimension (B): 40mm
- Dimension (B1): 5.5mm
- Dimension (C): 30mm
- Dimension (F): 30mm
- Dimension (d): 18mm
- Dimension (E): 10mm
- Dimension (h): 3.5mm
- Dimension (L): 45mm
- Weight: 0.26 KG
- Made for Shaft Diameter: 22mm
- Profile Description: KN18x22
- Material: Stainless
- Part #: 64899501
- Dimension (A): 54mm
- Dimension (B): 40mm
- Dimension (B1): 5.5mm
- Dimension (C): 30mm
- Dimension (F): 30mm
- Dimension (d): 18mm
- Dimension (E): 10mm
- Dimension (h): 3.5mm
- Dimension (L): 45mm
- Weight: 0.26 KG
