Power Transmission > Miscellaneous Items > Splined Hubs With Flange

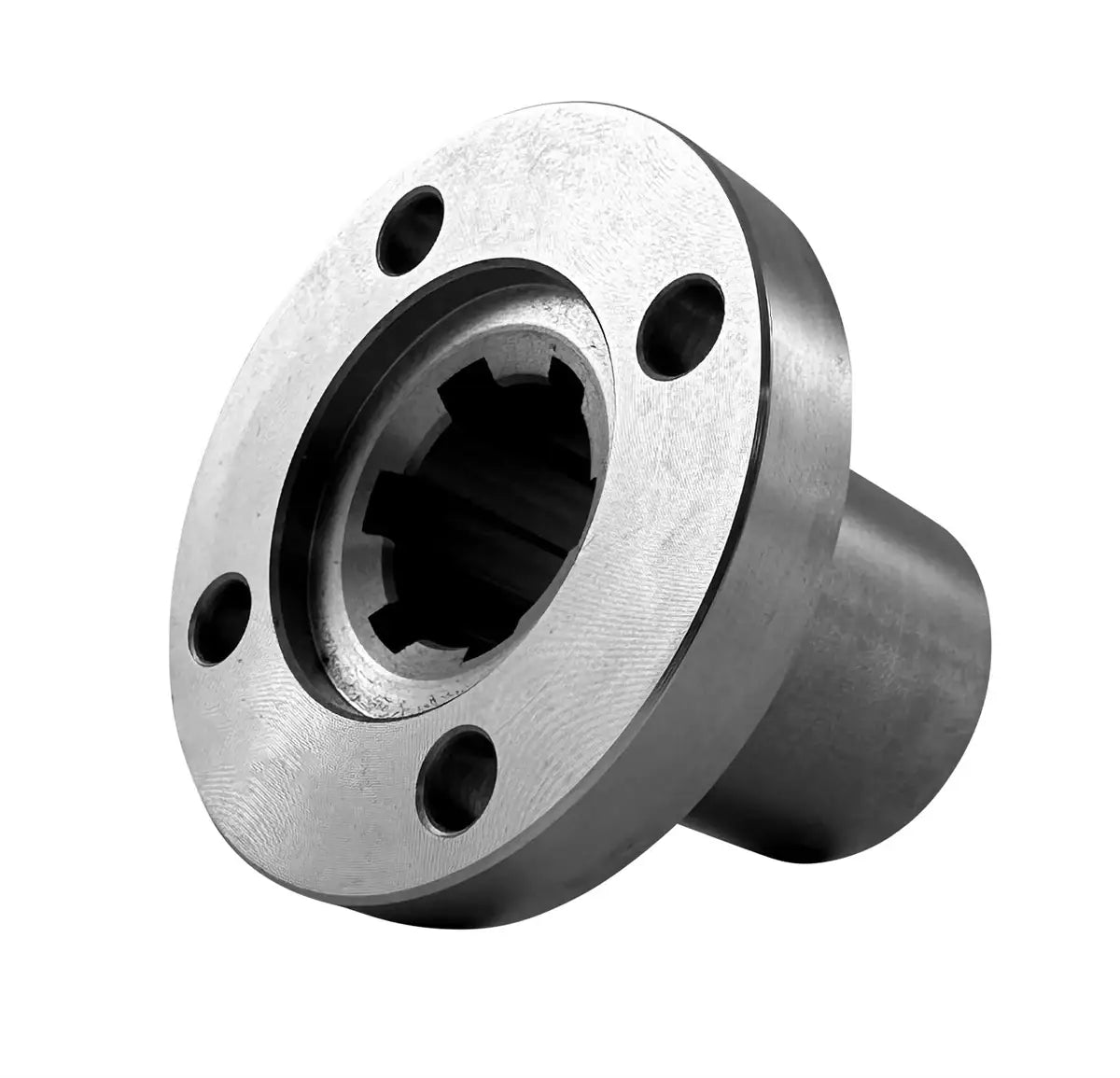

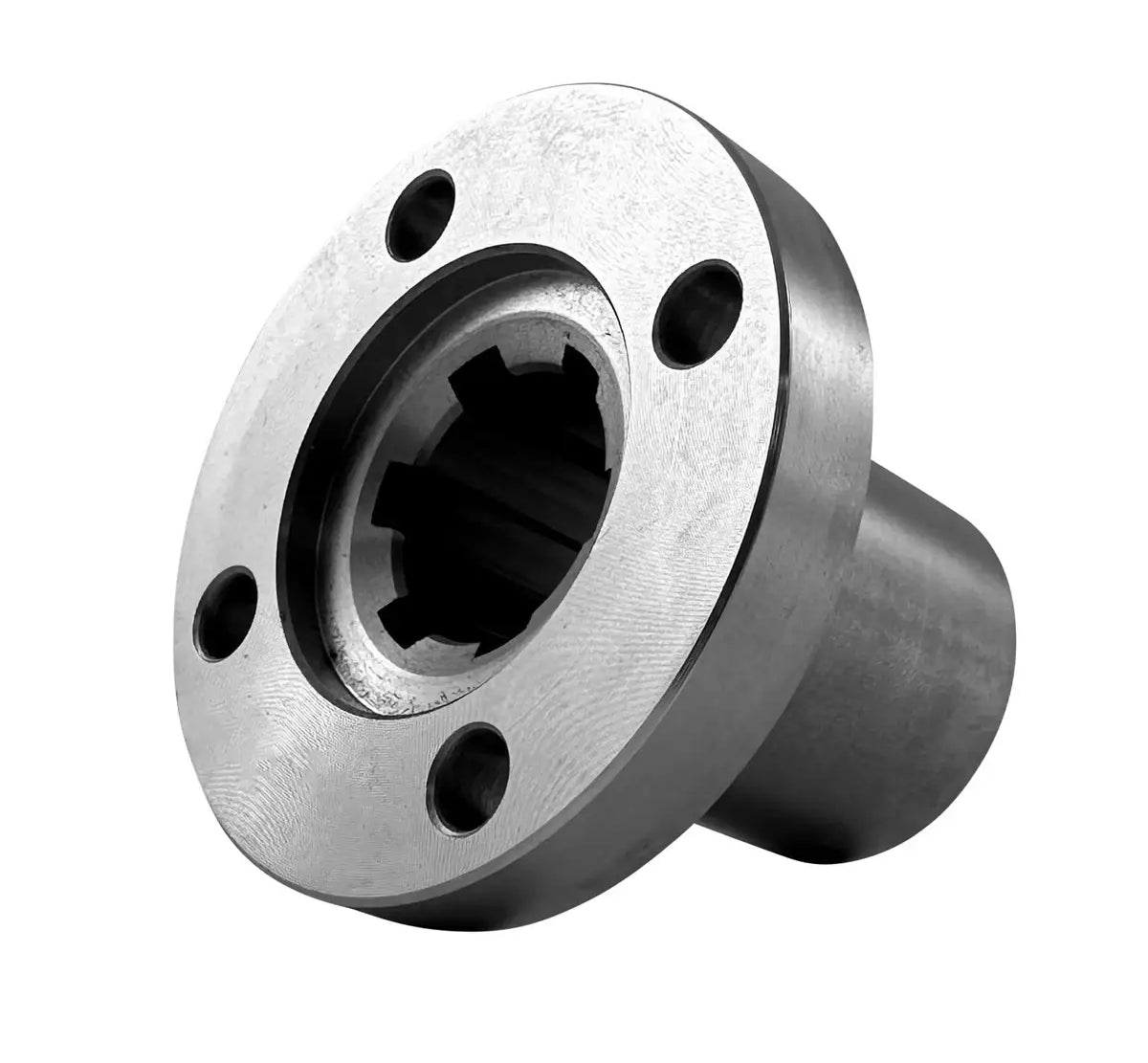

Splined Hub With Flange for 28mm Shaft With 6 Splines - Stainless Material
Note:
Custom Cut to Length Chain Also Available
SKU: 64899503-FLANGED-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Splined Hub With Flange for 28mm Shaft With 6 Splines - Stainless Material Features
Splined Hub With Flange for 28mm Shaft With 6 Splines - Stainless Material Specifications
This superior splined hub with a flange is engineered for a 28mm shaft with 6 splines, made from precision stainless steel that adheres to ISO DIN 14 standards for seamless interchangeability. Constructed from 303-grade stainless steel, this hub is suitable for abrasive, corrosive, and food-grade environments. Flanged splined hubs are crucial for accurate torque transmission across various applications. Designed for a 28mm diameter splined shaft with 6 splines, it provides easy installation and dependable, long-lasting performance. We also offer splined clamp collars with four pre-drilled holes to match this hub. For more information or to request a quote on our premium splined hub with flange for a 28mm shaft with 6 splines, please reach out to our customer service team, who will be happy to assist you!
28mm With 6 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 28mm
- Profile Description: KN23x28
- Material: Stainless
- Part #: 64899503
- Dimension (A): 64mm
- Dimension (B): 50mm
- Dimension (B1): 6.6mm
- Dimension (C): 36mm
- Dimension (F): 36mm
- Dimension (d): 23mm
- Dimension (E): 10mm
- Dimension (h): 3.5mm
- Dimension (L): 55mm
- Weight: 0.41 KG
- Made for Shaft Diameter: 28mm
- Profile Description: KN23x28
- Material: Stainless
- Part #: 64899503
- Dimension (A): 64mm
- Dimension (B): 50mm
- Dimension (B1): 6.6mm
- Dimension (C): 36mm
- Dimension (F): 36mm
- Dimension (d): 23mm
- Dimension (E): 10mm
- Dimension (h): 3.5mm
- Dimension (L): 55mm
- Weight: 0.41 KG
