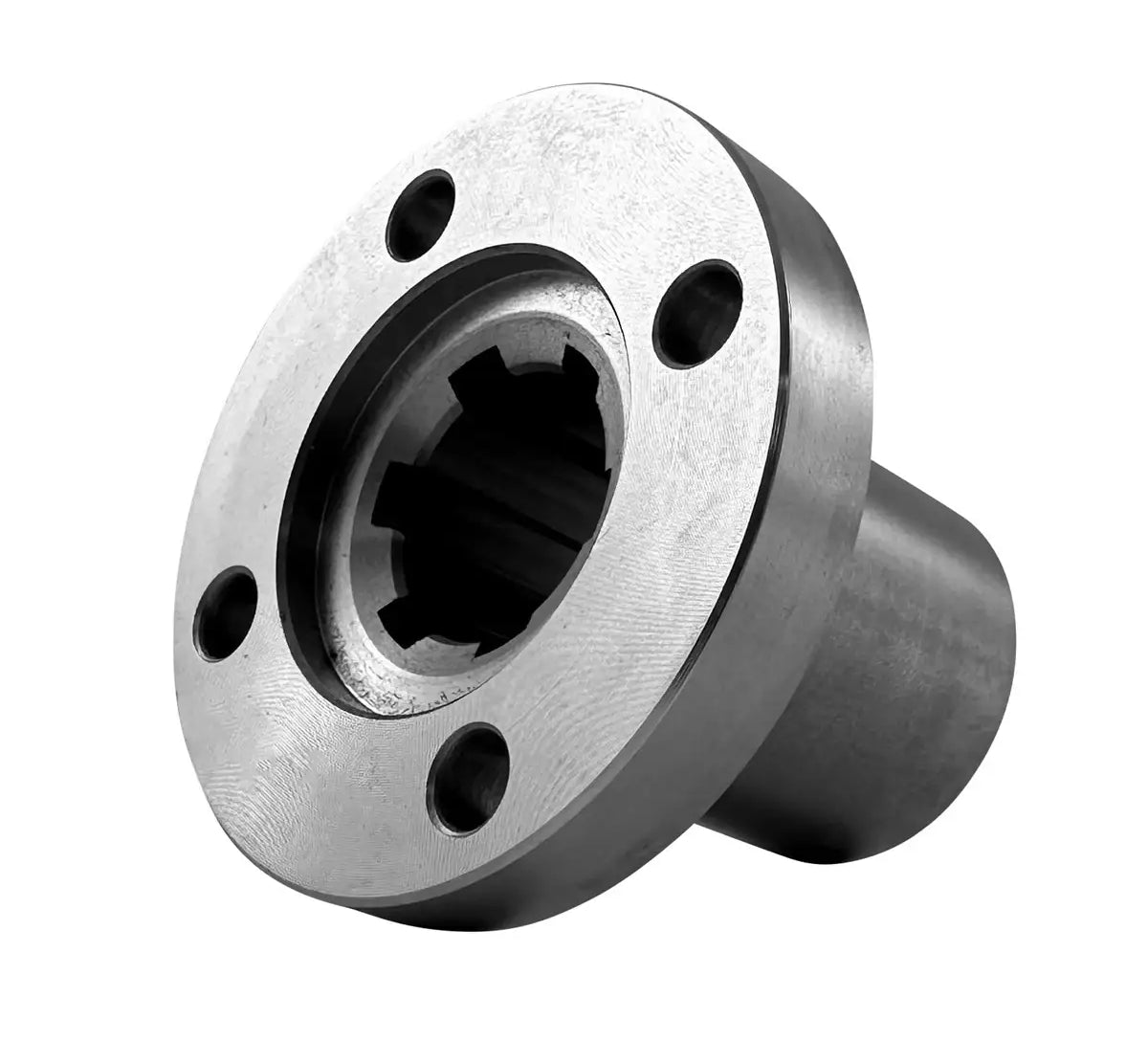

Splined Hub With Flange for 20mm Shaft With 6 Splines - Stainless Material
Note:
Custom Cut to Length Chain Also Available
SKU: 64899505-FLANGED-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Splined Hub With Flange for 20mm Shaft With 6 Splines - Stainless Material Features
Splined Hub With Flange for 20mm Shaft With 6 Splines - Stainless Material Specifications

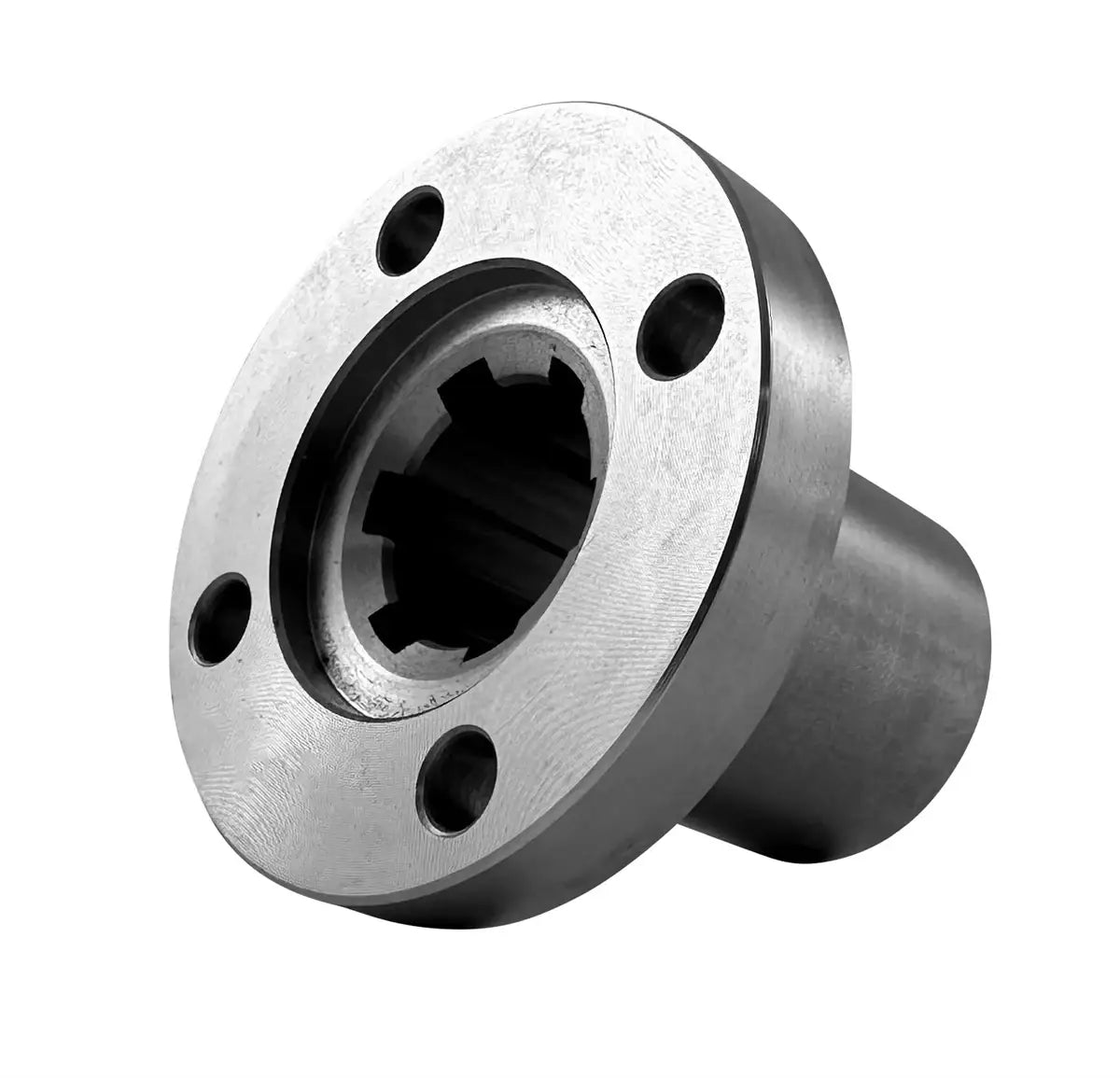

This premium splined hub with a flange is designed for a 20mm shaft with 6 splines, meticulously crafted from stainless steel that meets ISO DIN 14 standards for easy interchangeability. Made from 303-grade stainless steel, this hub is well-suited for abrasive, corrosive, and food-grade environments. Flanged splined hubs are crucial components for precise torque transmission in a wide array of applications. Specifically tailored for a 20mm diameter splined shaft with 6 splines, it offers straightforward installation and dependable, long-lasting usage. We also provide splined clamp collars with four pre-drilled holes to accompany this hub. For further details or to request a quote on our high-quality splined hub with flange for a 20mm shaft with 6 splines, please contact our customer service team, who will be delighted to assist you!
20mm With 6 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 20mm
- Profile Description: KN16x20
- Material: Stainless
- Part #: 64899505
- Dimension (A): 52mm
- Dimension (B): 38mm
- Dimension (B1): 5.5mm
- Dimension (C): 25mm
- Dimension (F): 28mm
- Dimension (d): 16mm
- Dimension (E): 10mm
- Dimension (h): 3mm
- Dimension (L): 40mm
- Weight: 0.22 KG
- Made for Shaft Diameter: 20mm
- Profile Description: KN16x20
- Material: Stainless
- Part #: 64899505
- Dimension (A): 52mm
- Dimension (B): 38mm
- Dimension (B1): 5.5mm
- Dimension (C): 25mm
- Dimension (F): 28mm
- Dimension (d): 16mm
- Dimension (E): 10mm
- Dimension (h): 3mm
- Dimension (L): 40mm
- Weight: 0.22 KG
