Power Transmission > Miscellaneous Items > Splined Hubs With Flange

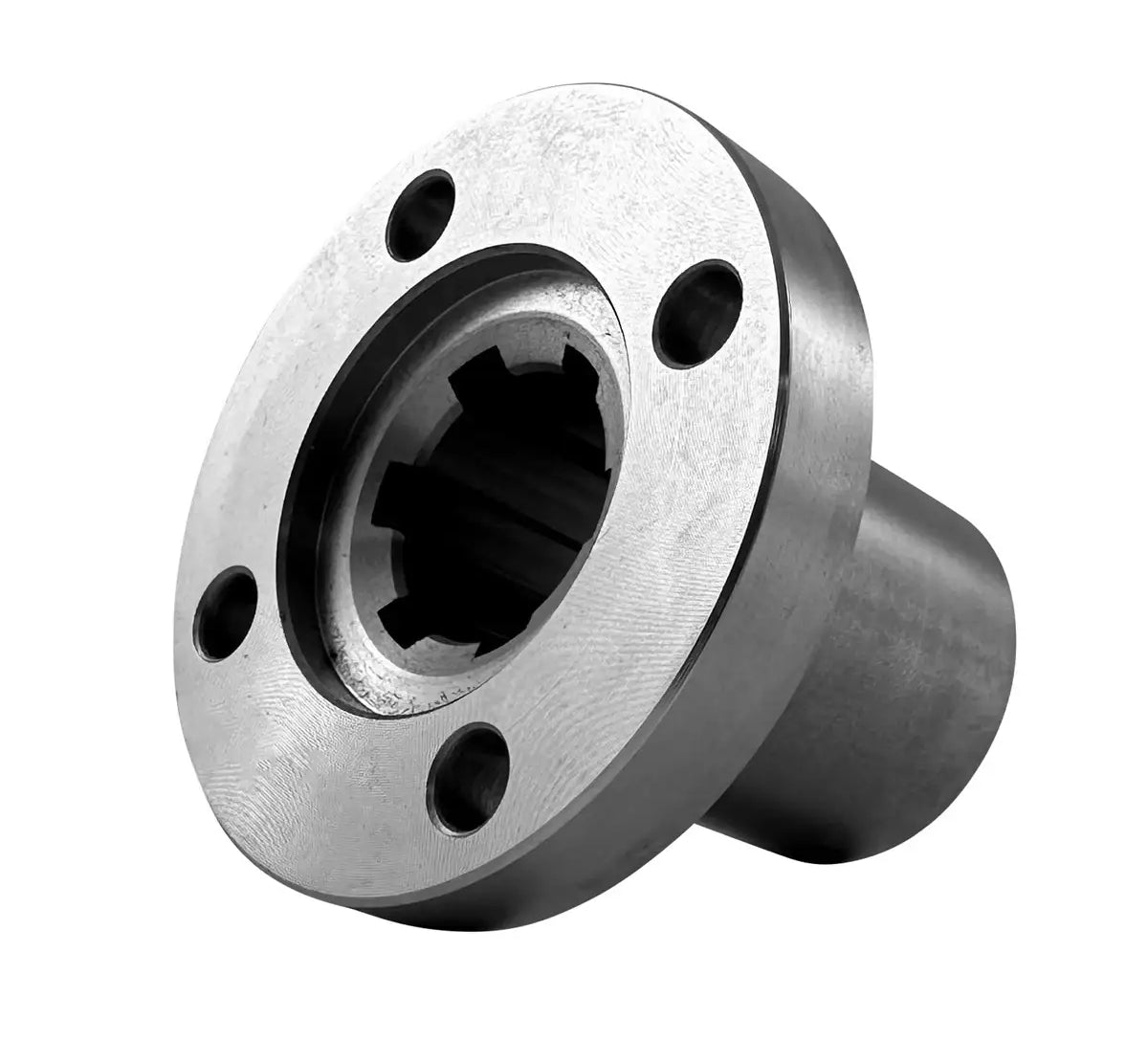

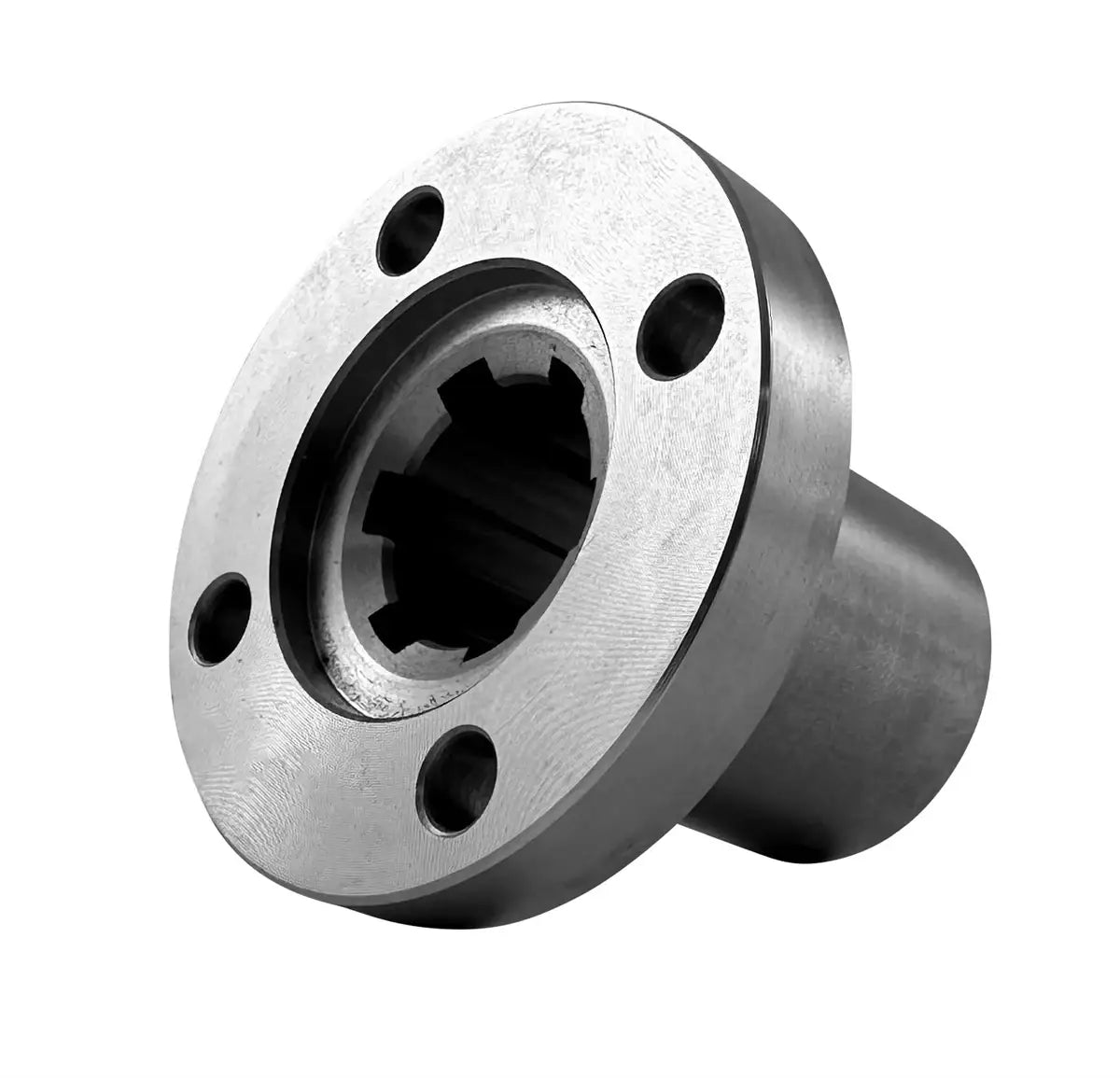

Splined Hub With Flange for 25mm Shaft With 6 Splines - Stainless Material
Note:
Custom Cut to Length Chain Also Available
SKU: 64899506-FLANGED-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Splined Hub With Flange for 25mm Shaft With 6 Splines - Stainless Material Features
Splined Hub With Flange for 25mm Shaft With 6 Splines - Stainless Material Specifications
This high-grade splined hub with a flange is designed for a 25mm shaft with 6 splines, crafted from precision stainless steel that meets ISO DIN 14 standards for direct interchangeability. Constructed from 303-grade stainless steel, this hub is ideal for abrasive, corrosive, and food-grade environments. Flanged splined hubs are essential for precise torque transmission in a wide range of applications. Tailored for a 25mm diameter splined shaft with 6 splines, it offers easy installation and reliable, long-term use. We also provide splined clamp collars with four pre-drilled holes to pair with this hub. For additional details or to request a quote on our premium splined hub with flange for a 25mm shaft with 6 splines, please contact our customer service team, who will gladly assist you!
25mm With 6 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 25mm
- Profile Description: KN21x25
- Material: Stainless
- Part #: 64899506
- Dimension (A): 62mm
- Dimension (B): 48mm
- Dimension (B1): 6.6mm
- Dimension (C): 35mm
- Dimension (F): 34mm
- Dimension (d): 21mm
- Dimension (E): 10mm
- Dimension (h): 3.5mm
- Dimension (L): 50mm
- Weight: 0.34 KG
- Made for Shaft Diameter: 25mm
- Profile Description: KN21x25
- Material: Stainless
- Part #: 64899506
- Dimension (A): 62mm
- Dimension (B): 48mm
- Dimension (B1): 6.6mm
- Dimension (C): 35mm
- Dimension (F): 34mm
- Dimension (d): 21mm
- Dimension (E): 10mm
- Dimension (h): 3.5mm
- Dimension (L): 50mm
- Weight: 0.34 KG
