Power Transmission > Miscellaneous Items > Splined Hubs With Flange
Splined Hub With Flange for 42mm Shaft With 8 Splines - Stainless Material
Note:
Custom Cut to Length Chain Also Available
SKU: 64899512-FLANGED-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote

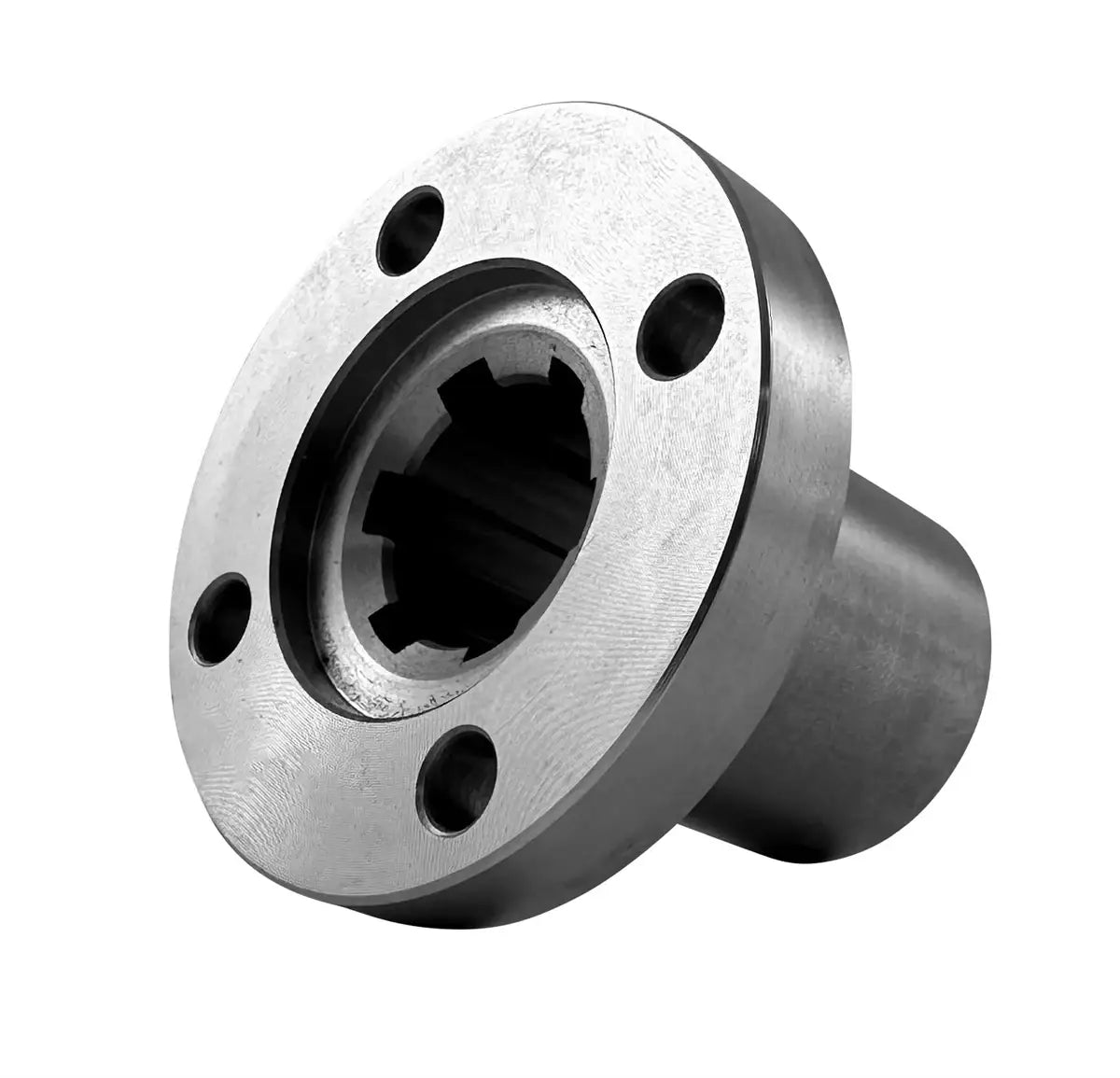

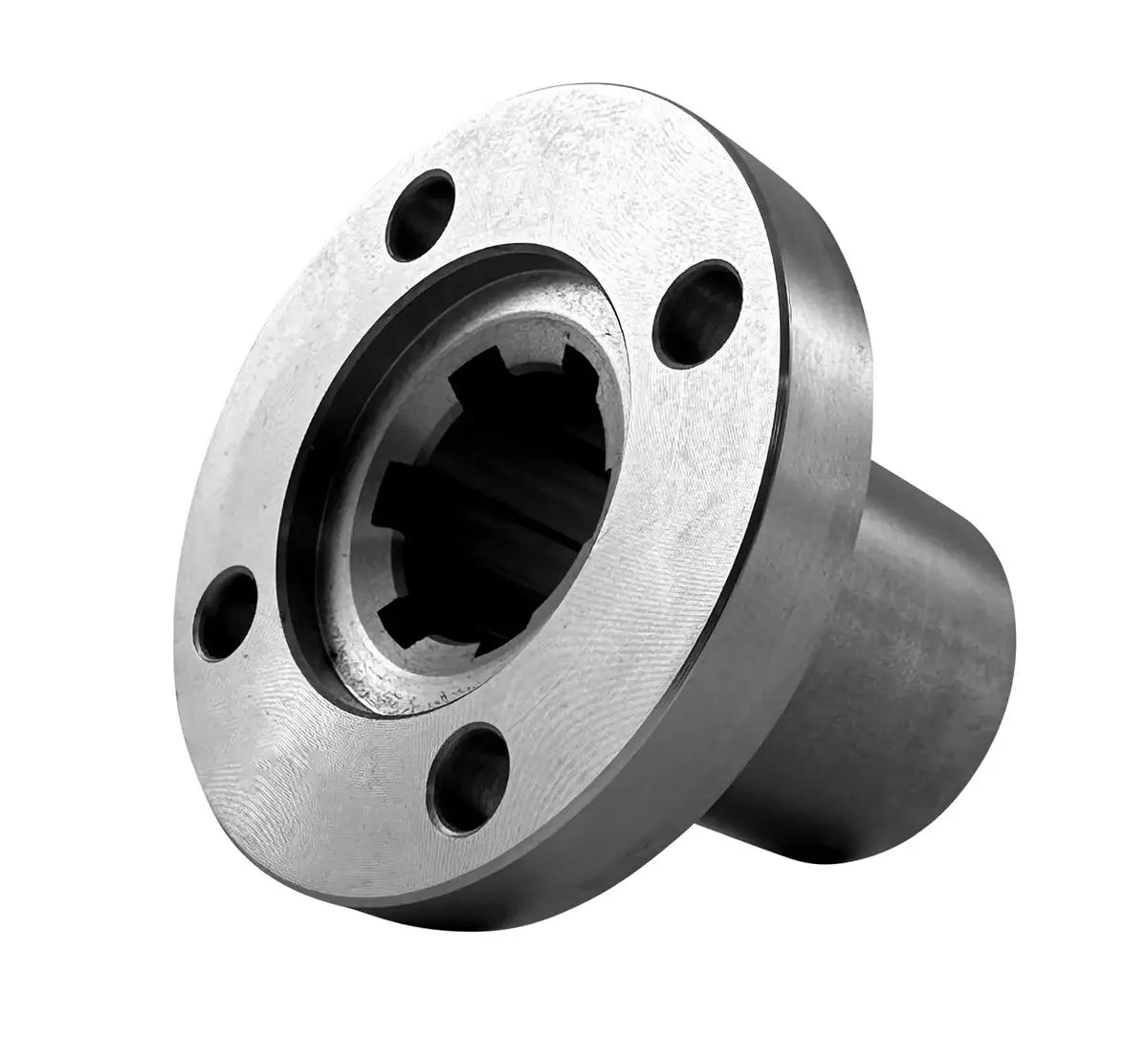

Splined Hub With Flange for 42mm Shaft With 8 Splines - Stainless Material Features
Splined Hub With Flange for 42mm Shaft With 8 Splines - Stainless Material Specifications
This high-grade splined hub with a flange is crafted for a 42mm shaft with 8 splines, using precision stainless steel that conforms to ISO DIN 14 standards for straightforward interchangeability. Made from 303-grade stainless steel, this hub is perfect for abrasive, corrosive, and food-grade environments. Flanged splined hubs are essential for precise torque transmission across a variety of applications. Designed specifically for a 42mm diameter splined shaft with 8 splines, it offers easy installation and dependable, long-lasting performance. We also provide splined clamp collars with four pre-drilled holes to pair with this hub. For more information or to request a quote on our premium splined hub with flange for a 42mm shaft with 8 splines, please reach out to our customer service team, who will be happy to assist you!
42mm With 8 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 42mm
- Profile Description: KN36x42
- Material: Stainless
- Part #: 64899512
- Dimension (A): 90mm
- Dimension (B): 70mm
- Dimension (B1): 9.0mm
- Dimension (C): 52mm
- Dimension (F): 52mm
- Dimension (d): 36mm
- Dimension (E): 16mm
- Dimension (h): 4mm
- Dimension (L): 80mm
- Weight: 0.94 KG
- Made for Shaft Diameter: 42mm
- Profile Description: KN36x42
- Material: Stainless
- Part #: 64899512
- Dimension (A): 90mm
- Dimension (B): 70mm
- Dimension (B1): 9.0mm
- Dimension (C): 52mm
- Dimension (F): 52mm
- Dimension (d): 36mm
- Dimension (E): 16mm
- Dimension (h): 4mm
- Dimension (L): 80mm
- Weight: 0.94 KG
