Clamp Collar For 14mm Splined Shaft With 6 Splines - Stainless Steel
Note:
Custom Cut to Length Chain Also Available
SKU: 64899602-CLAMP-COLLAR
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Clamp Collar For 14mm Splined Shaft With 6 Splines - Stainless Steel Features
Clamp Collar For 14mm Splined Shaft With 6 Splines - Stainless Steel Specifications

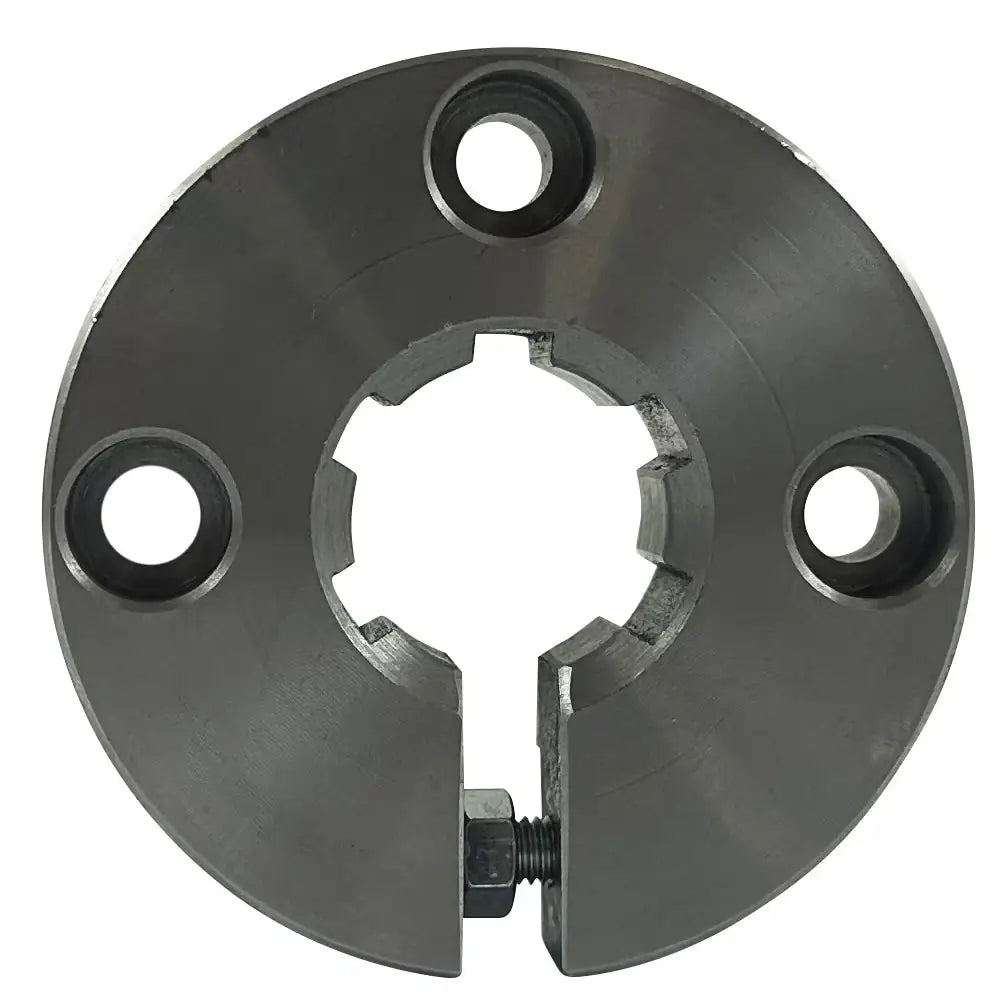

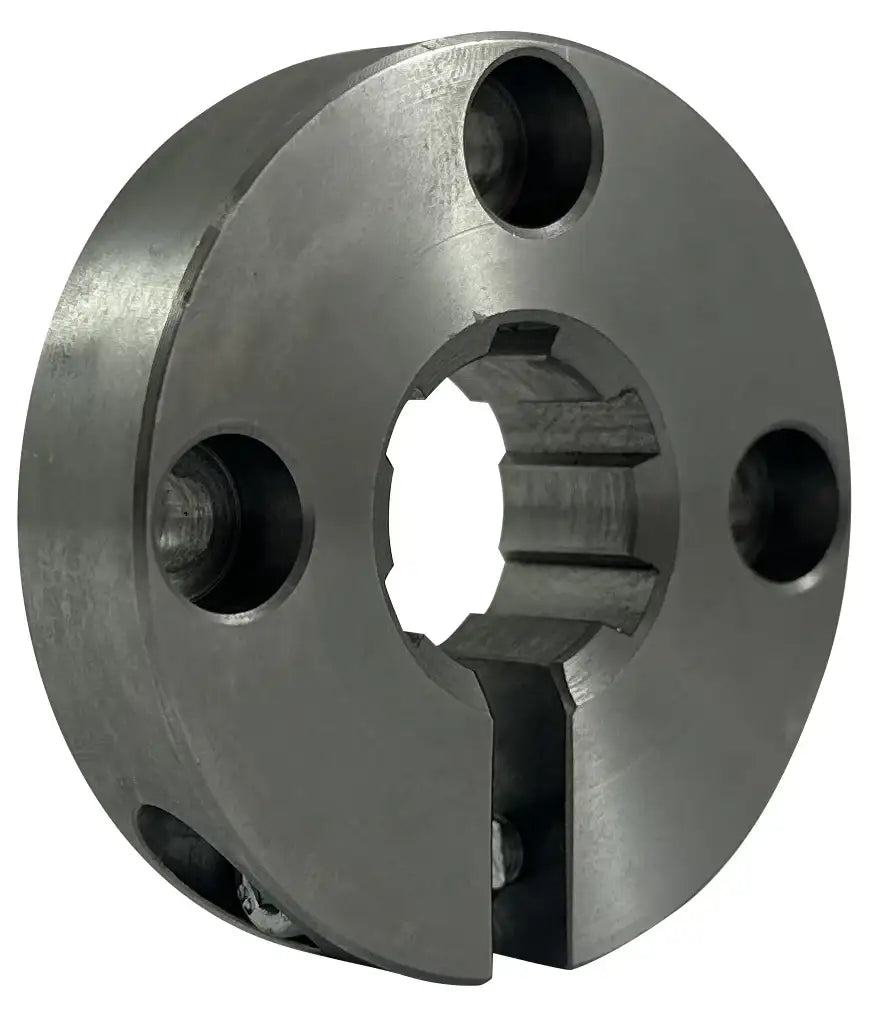

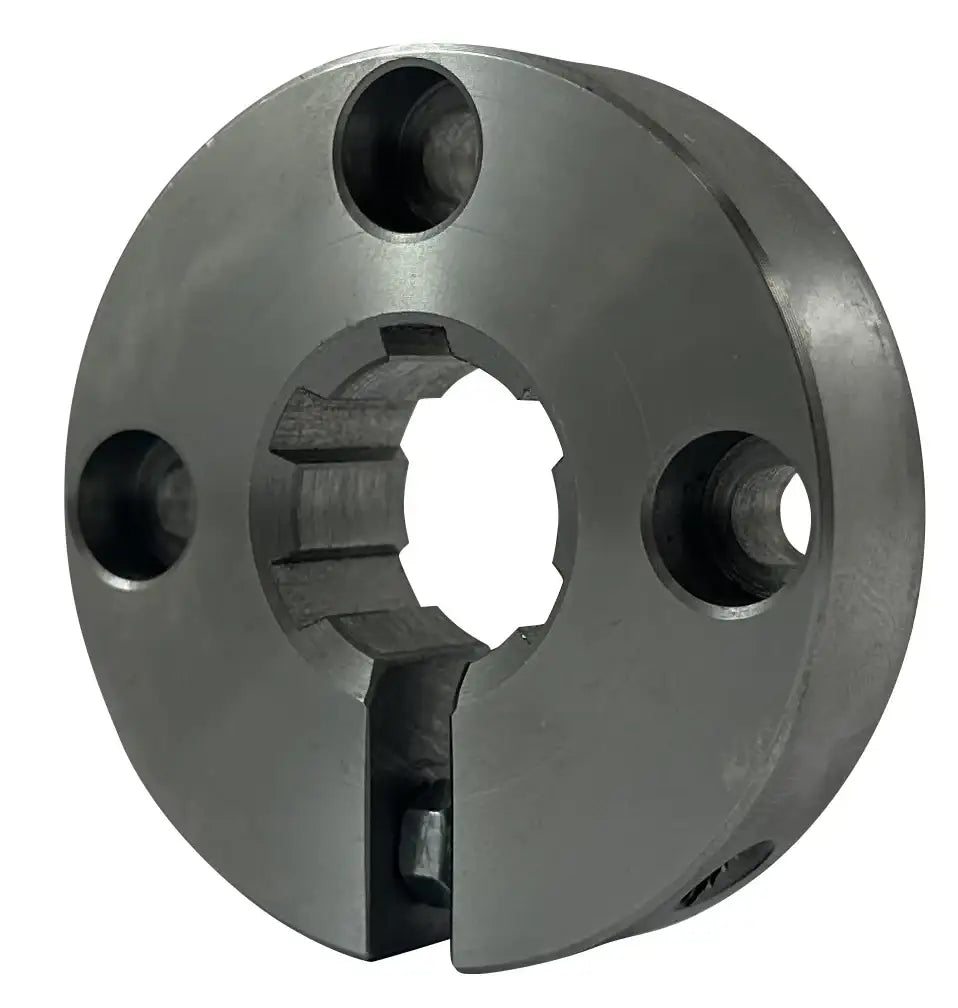

Our high-quality clamp collar for 14mm splined shaft with 6 splines is precision machined from 303-grade stainless steel. Made from stainless steel, this clamp collar can operate in abrasive, corrosive, and food-grade environments. This 14mm splined shaft clamp collar has four pre-drilled holes to mate perfectly with a splined hub with a flange. A splined clamp collar is a type of mechanical device used to secure or position components on a splined shaft. Unlike regular clamp collars, a splined clamp collar has internal splines that match the splines on the shaft, allowing for a secure and precise fit. This design ensures that the collar can transmit torque and resist rotational forces without slipping. If you would like more information or to get a quote on our premium stainless clamp collar for a 14mm splined shaft with 6 splines, we'll be happy to help you!
14mm Splined Clamp Collar Dimensions
- Part Number: 64899602
- Material: 303 Stainless
- Profile Description: KN 11 x 14
- Dimension (A): 42mm
- Dimension (B): 28mm
- Dimension (B1): 4.5mm
- Dimension (C): 20mm
- Dimension (d): 11mm
- Dimension (L): 12mm
- Dimension (K): 2mm
- Dimension (T): 4.6mm
- Dimension (S): M4
- Weight: 0.10KG
- Part Number: 64899602
- Material: 303 Stainless
- Profile Description: KN 11 x 14
- Dimension (A): 42mm
- Dimension (B): 28mm
- Dimension (B1): 4.5mm
- Dimension (C): 20mm
- Dimension (d): 11mm
- Dimension (L): 12mm
- Dimension (K): 2mm
- Dimension (T): 4.6mm
- Dimension (S): M4
- Weight: 0.10KG
