Specialty Chain > Pintle Chain > 600 Class Pintle Chain > 667XH Pintle Chain

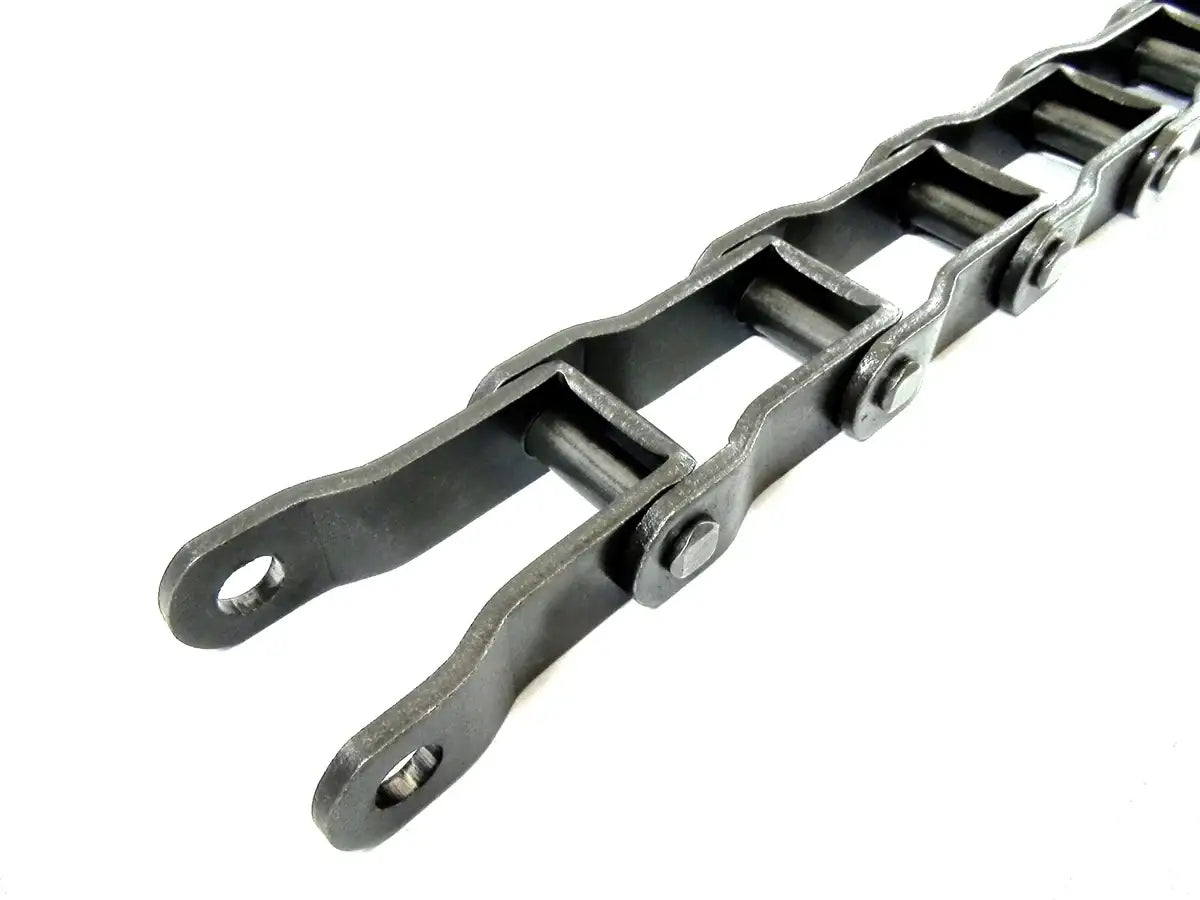

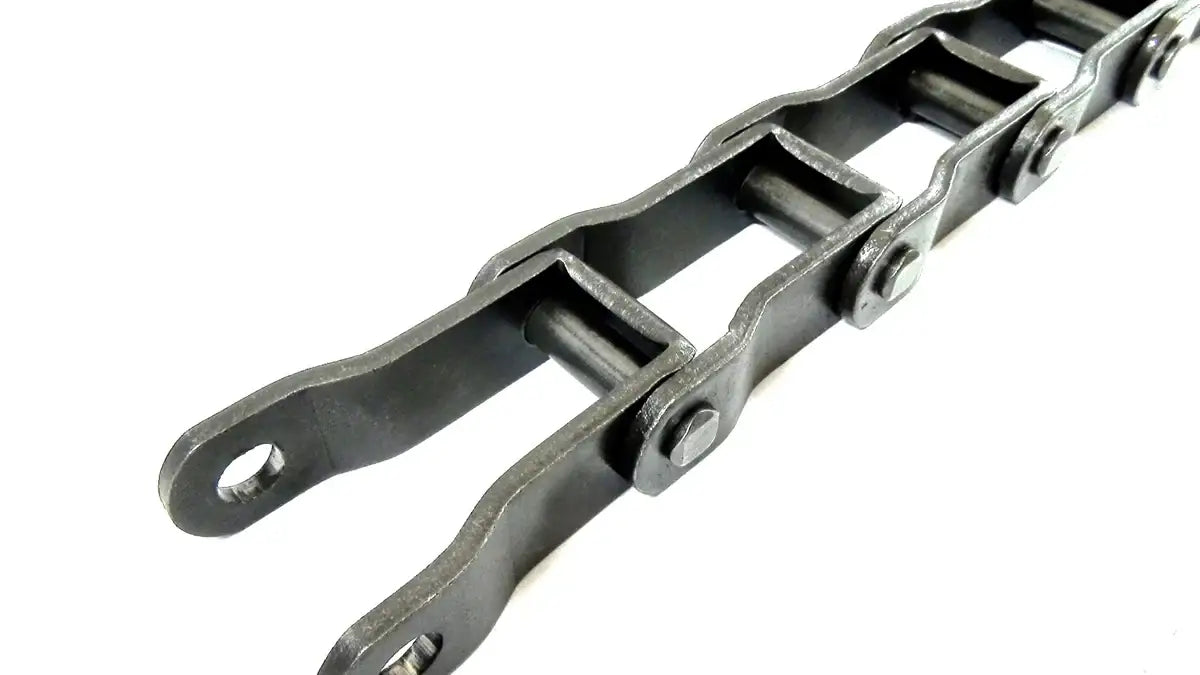

667XH Pintle Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
$409.99
SKU: 667XH-PINTLE-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
667XH Pintle Chain - 10ft Box Features
667XH Pintle Chain - 10ft Box Specifications
This 667XH pintle chain is extremely durable; fully heat treated, and has a tensile strength of 28,000lbs. Due to the quad staked pins, open barrel design, and overall quality; this chain offers an extended working life and has great overall performance. 667XH steel pintle chain is commonly supplied as 10ft lengths but alternate lengths are available upon request. Additionally, we offer a full line of high quality ANSI 667XH chain sprockets and attachments; as well as additional connecting links and pins. For additional information or if you have any questions please contact us and we will be happy to assist you!
667XH Pintle Chain Dimensions
- Chain Size: 667XH
- Pitch (P): 2.250"
- Ultimate Strength: 28,000lbs
- Side Bar Height (B): 1.050"
- Side Bar Thickness (C): 0.225"
- Rivet Diameter (D): 0.465"
- Overall Width (E): 2.414"
- Maximum Sprocket Thickness (F): 1.000"
- Weight Per 10ft: 28 lbs
- Chain Size: 667XH
- Pitch (P): 2.250"
- Ultimate Strength: 28,000lbs
- Side Bar Height (B): 1.050"
- Side Bar Thickness (C): 0.225"
- Rivet Diameter (D): 0.465"
- Overall Width (E): 2.414"
- Maximum Sprocket Thickness (F): 1.000"
- Weight Per 10ft: 28 lbs
