667J Pintle Chain

Specialty Chain > Pintle Chain > 600 Class Pintle Chain > 667J Pintle Chain

667J Pintle Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
SKU: 667J-PINTLE-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714747171183" , "metafield_value":""}]
667J Pintle Chain - 10ft Box Features
667J Pintle Chain - 10ft Box Specifications

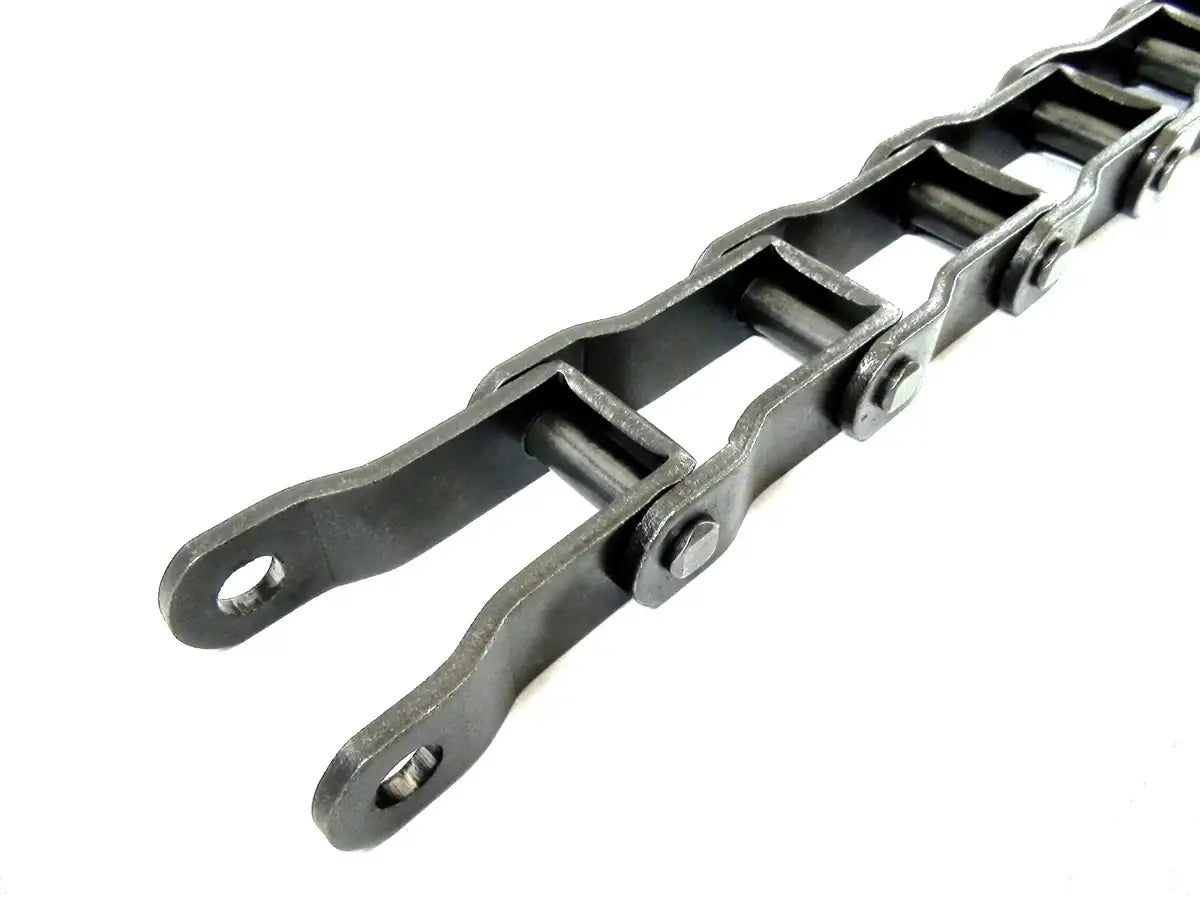

This 667J pintle chain is extremely durable; fully heat treated, and has a tensile strength of 20,600lbs. Due to the quad staked pins, open barrel design, and overall quality; this chain offers an extended working life and has great overall performance. 667J pintle chain is commonly supplied as 10ft lengths but alternate lengths are available upon request. Additionally, we offer a full line of high quality 667J chain sprockets and attachments; as well as additional connecting links and pins. For additional information or if you have any questions please contact us and we will be happy to assist you!

667J Pintle Chain Dimensions


667J Pintle Chain - 10ft Box

  • Chain Size: 667J
  • Pitch (P): 2.250"
  • Ultimate Strength: 20,600lbs
  • Side Bar Height (B): 0.937"
  • Side Bar Thickness (C): 0.170"
  • Rivet Diameter (D): 0375"
  • Overall Width (E): 2-3/64"
  • Maximum Sprocket Thickness (F): 1-1/16"
  • Weight Per 10ft: 18.1lbs
  • Chain Size: 667J
  • Pitch (P): 2.250"
  • Ultimate Strength: 20,600lbs
  • Side Bar Height (B): 0.937"
  • Side Bar Thickness (C): 0.170"
  • Rivet Diameter (D): 0375"
  • Overall Width (E): 2-3/64"
  • Maximum Sprocket Thickness (F): 1-1/16"
  • Weight Per 10ft: 18.1lbs
