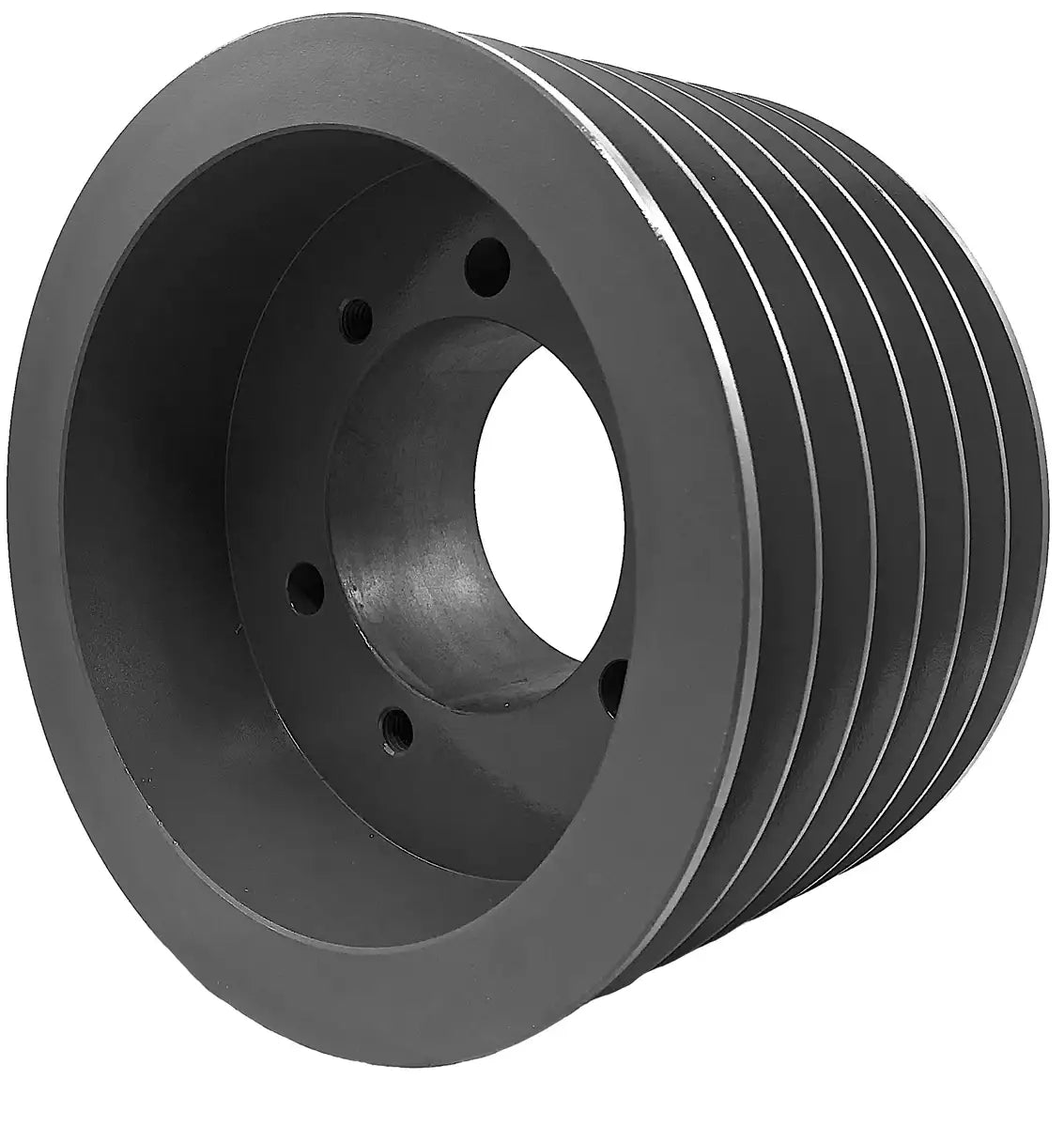

6C80E Sheave six-groove 8.40" OD

This 6C80E Sheave uses a E QD bushing, is directly interchangeable with other manufacturers, is 8.40" in diameter, and is manufactured in accordance with ARPM Standard for safe operation. With C-series QD sheaves you can use C, CX cogged, CC double-angled, and C banded v-belts. What separates this 6C80E sheave from the others is that it is made using a high strength cast iron, is phosphate coated, painted, and balanced at the factory. Using the high-strength cast iron grade that we do offers a higher tensile strength and is more wear resistant than the more commonly used grades. While the phosphate coated and then painted finish adds corrosion resistance to the 6C80E sheave. Then, because this sheave is balanced at the factory it runs smoother which gives bearings and other components of the equipment a longer working life. Using a quick detachable (QD) style sheave is beneficial because it makes the completed part a two piece assembly which means if only one piece breaks you don't have to replace the entire assembly. Additionally, we stock a full line of premium C, CX cogged, CC double-angled, and C banded v-belts, E-bushings, shafting, key-stock, electric motors, gearboxes, bearings, and much more!

6C80E Sheave Dimensions

• Sheave Size: 6C80E
• Bushing Type: E
• Bore Range: 7/8" - 3-1/2"
• Sheave Type: A
• Pitch Diameter (P.D.): 8.0"
• Outside Diameter (O.D.): 8.40"
• Dimension (E): 1-5/32"
• Dimension (F): 6-1/4"
• Dimension (L): 2-3/4"
• Dimension (M): 2-11/32"
• Sheave Weight: 36 LBS

USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high-quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information on a six groove 6C80E sheave, or to get pricing and availability on the accompanying belts/ E bushings, please contact us and we will be happy to assist you.
