Premium 720 Chain - Cast Material 720 Pintle Chain
Login to Request a Quote

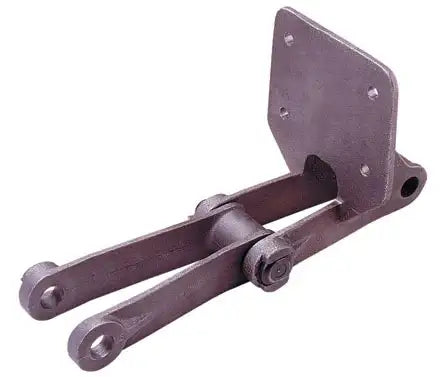

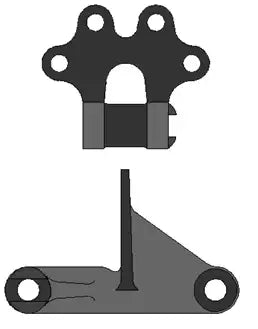

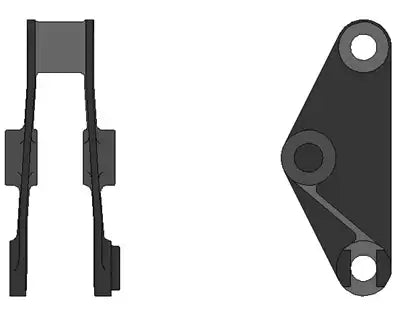

720 Chain is manufactured with a full cast link and hardened carbon-steel pins for ultimate strength while maintaining a lightweight. USA Roller Chain offers a premium 720 chain in either riveted or cottered construction. This chain is primarily used in wastewater applications such as rectangular clarifiers, as well as other conveying applications. Attachments available for 720 chain are: A2, A53, AM116, F2, F226, F228, K1, K2, M1, PDF2, PDF226, PDF228, as well as custom attachments upon request. We can supply the chain with attachments already assembled onto the chain in any configuration needed, and within a fast assembly time.
Besides the Premium 720 Chain, we also offer a full line of sprockets, flights, wear materials, drive systems, and more. USA Roller Chain and sprockets sets itself apart from the competition by having over 100+ years of industry knowledge, competitive pricing, extensive inventory, and an A+ BBB rating. To get a quotation on a 720 chain or for more information, please get in touch with us, and we will be happy to assist you.
Dimensions:
- Chain Size: 720
- Pitch: 6.000"
- Links Per 10ft: 20
- Weight: 4.2 LBS/ FT
- Average Ultimate Strength: 28,600 LBS
- Maximum Recommended Working Load: 3,720 LBS
- Maximum Allowable Sprocket Face (A): 1.12"
- Overall Width Cottered (C2): 3.44"
- Overall Width Riveted (C1): 3.31"
- Pin diameter (E): 0.690"
- Sidebar Height (H): 1.50"
- Barrel Diameter (D): 1.38"
- Head of Pin To Center Line (J): 1.62"
- End of Pin to Center Line Cottered (K): 1.81"
- End of Pin to Center Line Riveted (L): 1.69"
- Bearing Length (X): 1.81"
- Chain Size: 720
- Pitch: 6.000"
- Links Per 10ft: 20
- Weight: 4.2 LBS/ FT
- Average Ultimate Strength: 28,600 LBS
- Maximum Recommended Working Load: 3,720 LBS
- Maximum Allowable Sprocket Face (A): 1.12"
- Overall Width Cottered (C2): 3.44"
- Overall Width Riveted (C1): 3.31"
- Pin diameter (E): 0.690"
- Sidebar Height (H): 1.50"
- Barrel Diameter (D): 1.38"
- Head of Pin To Center Line (J): 1.62"
- End of Pin to Center Line Cottered (K): 1.81"
- End of Pin to Center Line Riveted (L): 1.69"
- Bearing Length (X): 1.81"
