Power Transmission > Screw Conveyors & Parts > Screw Conveyor End Shafts
150-0842 1-1/2" Screw Conveyor End Shaft With Seal
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-150-0842-END-SHAFT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
150-0842 1-1/2" Screw Conveyor End Shaft With Seal Features
150-0842 1-1/2" Screw Conveyor End Shaft With Seal Specifications

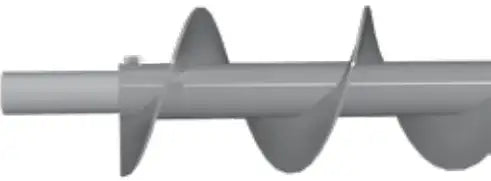

150-0842 1-1/2" screw conveyor end shaft with end seal is precision manufactured from high-quality steel. The basic function of an end shaft is to support the screw or screws within a screw conveyor. Our 1-1/2" screw conveyor end shaft is made to specific requirements that ensure proper bearing fitment with no additional vibration and it is jig-drilled for perfect fitting and alignment along with the screw pipe. This end shaft is specifically manufactured to go with #100 and #101 trough ends.
150-0842 1-1/2" Screw Conveyor End Shaft Dimensions
- Part#: 150-0842
- Shaft Size: 1-1/2"
- Dimension (B): 11"
- Dimension (C): 6-1/4"
- Dimension (D): 5"
- Dimension (E): 1-1/4"
- Weight: 5.5 LBS
- Part#: 150-0842
- Shaft Size: 1-1/2"
- Dimension (B): 11"
- Dimension (C): 6-1/4"
- Dimension (D): 5"
- Dimension (E): 1-1/4"
- Weight: 5.5 LBS
