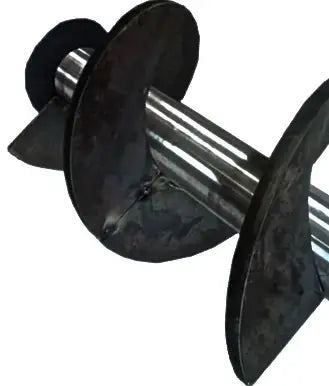

18" Sectional Flight Screw X 11' 8" Long | 18S712 - Left

This 18" sectional flight screw X 11' 8" long is a left-hand configuration conveyor screw manufactured from high-quality steel. Each flight is individually blanked from a steel place and formed into a helix, then butt welded together to form a complete screw section. Sectional flights are formed with a lead longer than their pitch to assure a tight gripping action along the pipe. The flights are then normally fastened to the pipe with the use of intermittent welds and welded steel end lugs. They can be continuously welded on either one or both sides upon request. The 18S712 conveyor screw pipe will also feature seamless internal locking collars in each end that will accommodate the shafts. For additional information or to get a quote on a left-hand 18" sectional flight screw X 11' 8" long contact our customer support team and we will be happy to assist you!

18" Sectional Flight Screw X 11' 8" Long Dimensions

• Part #: 18S712-114-2876
• Configuration: Left-Hand
• Diameter of Screw: 18"
• Standard Section Length: 11' 8"
• Diameter of Coupling (A): 3-7/16""
• Gauge/ Thickness of Flights (B): 3/16"
• Pipe Size: 4"
• Weight per Section: 264LBS
• Length of Hanger Bearings: 4"
