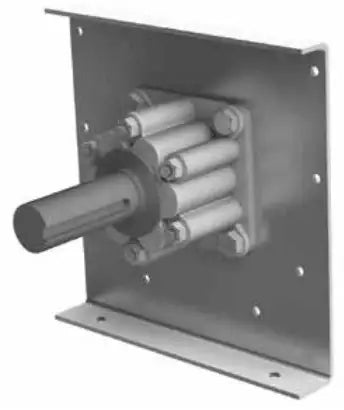

3-7/16" HAMMOND Roller Bearing For Trough End With Drive Shaft
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-255-0424
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
3-7/16" HAMMOND Roller Bearing For Trough End With Drive Shaft Features
3-7/16" HAMMOND Roller Bearing For Trough End With Drive Shaft Specifications
3-7/16" HAMMOND roller bearing for trough end with driveshaft utilizes a high-strength dual tapered roller bearing end thrust capable of handling extra-heavy radial and thrust loads in any direction. When starting up a screw conveyor, thrust is created in the direction opposite to the flow of material. If the thrust is not properly contained, it will wear on the hanger bearings, trough end, and screw. The Chevron bearing adequately handles these thrust loads and is recommended for screw conveyor applications rather than a self-aligning ball bearing. For more information or to get a quote on 3-7/16" HAMMOND roller bearing for trough end with a driveshaft contact our customer service team and we will be happy to assist you!
3-7/16" HAMMOND Roller Bearing Trough End Dimensions
- Part#: 255-0424
- Shaft Size: 3-7/16"
- Standard Projection: 7"
- Dimension (B): 10"
- Dimension (C): 8"
- Dimension (D): 1-3/8"
- Dimension (E): 1"
- Dimension (F): 8-1/4"
- Dimension (G): 1-1/2"
- Dimension (H): 3-7/16"
- Dimension (J): 6-1/8"
- Dimension (K): 2-3/8"
- Weight: 170 LBS
- Part#: 255-0424
- Shaft Size: 3-7/16"
- Standard Projection: 7"
- Dimension (B): 10"
- Dimension (C): 8"
- Dimension (D): 1-3/8"
- Dimension (E): 1"
- Dimension (F): 8-1/4"
- Dimension (G): 1-1/2"
- Dimension (H): 3-7/16"
- Dimension (J): 6-1/8"
- Dimension (K): 2-3/8"
- Weight: 170 LBS
